Marin Bikes (USA) – Alpine Trail.

Big mountains, epic passes, and all day ripping descents. If you live for the alpine adventure and gravity-fueled downhills, look no further than the all-new Alpine Trail series. The latest incarnation of our critically acclaimed MultiTrac platform, and built around long travel suspension, slack angles, and 29” wheels, the Alpine Trail is here to conquer all singletrack in its path. Equally adept on the Enduro World Series, where Team Marin riders will be putting the bike through the paces on the world’s most challenging trails.

Technologies:

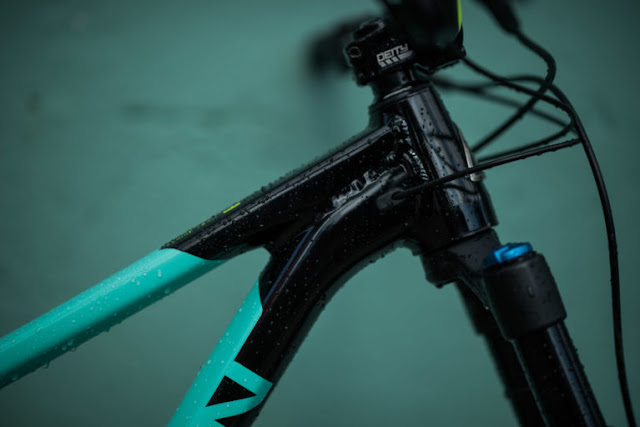

Series 4 Aluminum Frame:


Alpine Trail models feature Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers.

One Piece Forged Rocker:


The heart of the Alpine Trail’s MultiTrac suspension is the forged and welded one-piece rocker link. The strength and stiffness of the rocker keeps the rear of the bike tracking straight, providing smooth suspension operation under the most demanding conditions.

Bridgeless Seatstay:


The stiffness of the one-piece rocker link allows for a bridgeless seatstay design, offering zero compromises on stiffness while at the same time allowing for maximum tire clearance and short chainstays.

Modern Angles:


The Alpine Trail has a slack head tube angle paired with a steep seat tube angle and long reach to provide the best modern trail bike experience. The bike lets you climb better than ever before,while giving you even more confidence when descending.

Alpine Trail 8 Specifications:

• Frame: Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Housing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
• Fork: Fox 36 Performance, 160mm travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 51mm Offset
• Rear Shock: Fox Float DPX2, Performance, 3 Position Lever, LV Evol, Trunnion Upper Mount, 25mm x M8 Lower Mount
• Rims: Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, 32H Tubeless Compatible
• Hub Rear: Forged Alloy, 148x12mm, Quad Sealed Cartridge Bearings, 6-Bolt Disc, 32H, XD Driver
• Hub Front: Forged Alloy, 110x15mm, 6-Bolt Disc, 32H
• Spokes: 14g Black Stainless Steel
• Tires: Vee Tire Flow Snap, 29x2.3”, Tackee Compound, Single Ply, 72 TPI
• Derailleur Rear: Sram NX Eagle
• Shift Lever: Sram NX Eagle, 12-Speed
• Crankset: Sram Descendant 6K Aluminum, Direct Mount 12-Speed 34T, DUB, Boost Spacing, 170mm length
• Bottom Bracket: External Sealed Cartridge Bearings
• Chain: Sram NX Eagle
• Cassette: Sram XG-1275 12-Speed, 10-50T
• Brakes Front: Tektro Orion, 4 Piston Hydraulic Disc, 203mm Rotor
• Brakes Rear: Tektro Orion, 4 Piston Hydraulic Disc, 180mm Rotor
• Brake Levers: Tektro Orion, I-Spec II Compatible
• Handlebar: Deity Blacklabel, 800mm Width, 25mm Rise, Custom Color
• Stem: Deity Copperhead Stem, 35mm
• Grips: Marin Locking
• Headset: FSA No 57E, Sealed Cartridge Bearings, 11/8"x11/2”
• Seatpost: KS LEV Integra Dropper Post, Southpaw Lever, Size S: 125mm Travel, All Other Sizes: 150mm Travel
• Saddle: WTB Volt Race
• Extras: Bolt-on Thru-Axle

Other Alpine Trail Models:

• Alpine Trail 7
