Bergamont (Germany) - Press Release: E-MTB fun for adults only? No Way! The e-bike world belongs to our children: The E-REVOX JUNIOR 24 is the easy entry into E-MTB riding. A geometry specially made for kids and reliable 24" PLUS tires. The new E-REVOX 3 26" E-MTB platform is perfect for all young E-MTB enthusiasts. Equipped with the high class Bosch Active Line and Active Line Plus drive units with 400 Wh Bosch 36V Li-Ion batteries, there are no limits to adventure and play. Powerful hydraulic disc brakes for reliable and safe stopping at any time.

New in 2019:

• All-new 24" and 26" kids’ E-Bike platforms
• Bosch Active Line or Active Line Plus Drive Unit
• High grade Syncros components
• Hydraulic Shimano disc brakes

24" Plus Tires:

Robust, reliable, safe: the Plus tires on the E-REVOX JUNIOR not only guarantee maximum offroad traction but also mean more safety, confidence and control.

Integrated Bosch Drive Unit:

Playful ride: the quiet and powerful Active Line Pus drive unit delivers up to 50 Nm of torque and guarantees a balanced power output. The compact Active Line motor has an output of 40 Nm which allows for controlled acceleration up to 20 km/h.

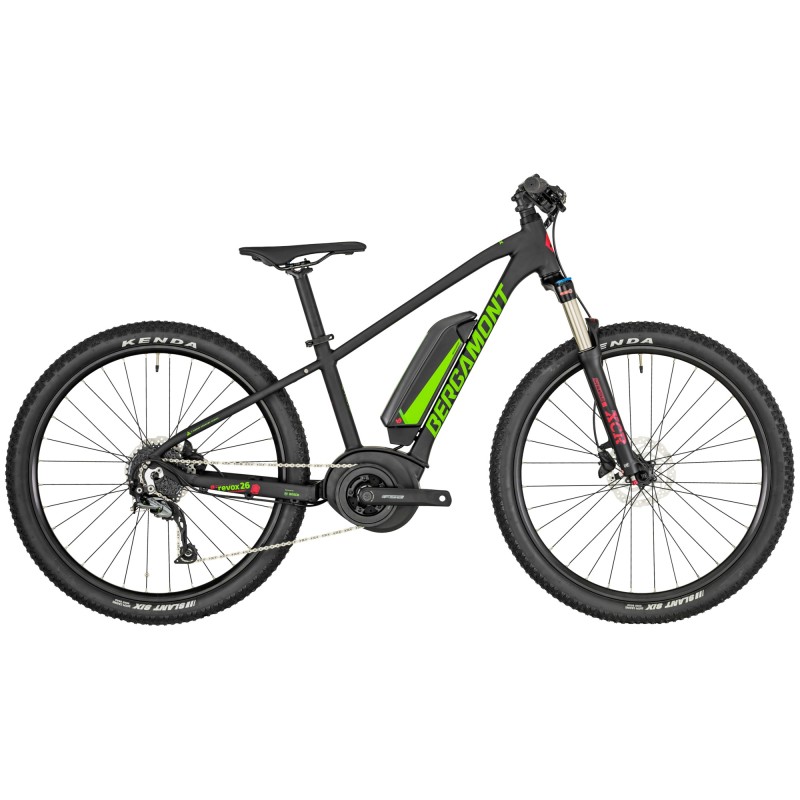

Bergamont E-Revox 3 26:

• Frame: 26" E-MTB, AL-6061 ultra lite tubing, fluid forming
• Fork: Suntour XCR-32 Air, 1 1/8", 100 mm, rebound adjust
• E.Drive System: Motor: Bosch Drive Unit Active Line Plus, 250W, 36V, max. 25 km/h
• Display: Bosch Purion
• Battery: Bosch 36 V Li Ion, 400 Wh, frame-type, external
• Assistance Modes: Eco (+40%), Tour (+100%), Sport (+150%), Turbo (+250%), Walk Assist (-5km/h)
• Headset: BGM, A-Headset
• Rear Derailleur: Shimano RD-M4000
• Shifters: Shimano SL-M2000, 1x9-speed, rapidfire plus-shifter
• Brake Levers: Shimano BL-MT200, hydraulic disc brake
• Brakes: Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160/160 mm
• Crankset: FSA CK-200, with alloy cover, 36t, 165 mm
• BB-Set: Bosch
• Handlebar: Syncros M15, flatbar, 560 mm
• H'stem: Syncros, length: 50 mm
• 7Pedals: VP
• Seatpost: Syncros
• Seat: Syncros
• Hub (Front): Shimano, centerlock, disc, quick release
• Hub (Rear): Shimano, centerlock, disc, quick release
• Chain: KMC e9S
• Cassette: Shimano CS-HG200-9, 11-34t
• Spokes: steel, black
• Rims: BGM, disc, eyelets, width: 23 mm
• Tires: Kenda K1080, 26x2.35"
• Tubes: Kenda
• Approx weights in KG: 20,4
• Range of use: Category 3: Cross-country, marathon and hardtail bikes
• Color: black/green/red (matt)
• Frame size: 36 cm
• Grips: Syncros
• System Weight: 120 kg, The overall weight includes the bike, the rider, the equipment and possible additional luggage

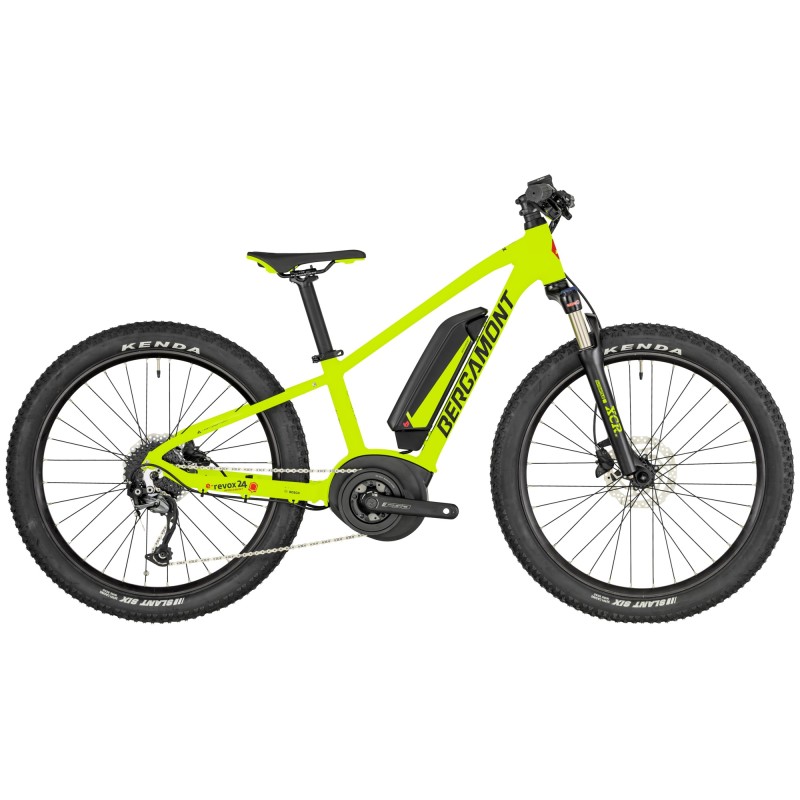

Bergamont E-Revox Junior 24:

• Frame: 24" E-MTB, AL-6061 ultra lite tubing, fluid forming
• Fork: Suntour XCT Plus, 1 1/8", 50 mm, rebound adjust
• E.Drive System: Motor: Bosch Drive Unit Active Line, 250W, 36V, max. 20 km/h
• Display: Bosch Purion
• Battery: Bosch 36 V Li Ion, 400 Wh, frame-type, external
• Assistance Modes: Eco (+40%), Tour (+100%), Sport (+150%), Turbo (+250%), Walk Assist (-5km/h)
• Headset: BGM, A-Headset
• Rear Derailleur: Shimano RD-M4000
• Shifters: Shimano SL-M2000, 1x9-speed, rapidfire plus-shifter
• Brake Levers: Shimano BL-MT200, hydraulic disc brake
• Brakes: Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 160/160 mm
• Crankset: FSA CK-400, with alloy cover, 36t, 155 mm
• BB-Set: Bosch
• Handlebar: Syncros M15, flatbar, 560 mm
• H'stem: Syncros, length: 50 mm
• Pedals: VP
• Seatpost: Syncros
• Seat: Syncros
• Hub (Front): BGM Comp, centerlock, disc, quick release
• Hub (Rear): Shimano, centerlock, disc, quick release
• Chain: KMC e9S
• Cassette: Shimano CS-HG200-9, 11-34t
• Spokes: steel, black
• Rims: BGM, disc, eyelets, width: 23 mm
• Tires: Kenda K1080, 24x2.60"
• Tubes: Kenda
• Approx weights in KG: 19,8
• Range of use: Category 2.2: Kids’ bikes
• Color: green/black/red (matt)
• Frame size: 32 cm
• Grips: Syncros
• System Weight: 65 kg, The overall weight includes the bike, the rider, the equipment and possible additional luggage
