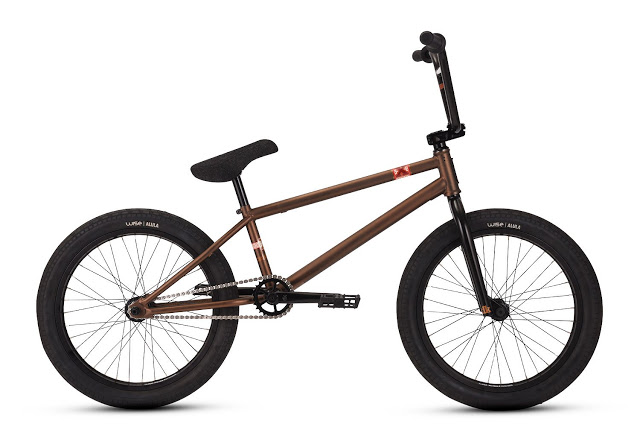

Complete Bike Specifications:
- Frame - 100% chromoly with internally butted and tapered tubing, integrated headset, Mid BB, removable brake mounts, custom plate Brake Bridge
- Top Tube Length - 20.75”
- Chain Stay Length - 13.6”
- Head Tube Angle - 75º
- Seat Tube Angle - 72º
- Fork - 100% chromoly with CNC machined 1-piece steerer tube, built-in bearing race, tapered legs, internally threaded alloy compression bolt
- Bars - 100% chromoly 8.8 x 29”, 11° back, 4° up
- Stem - DK Chamberlain CNC machined alloy top load, 53mm
- Headset - 45/45 integrated sealed cartridge bearings
- Brake - Wise alloy U-brake
- Lever - Wise alloy, hinged
- Rear Hub - Wise alloy sealed bearing 9-tooth cassette with 14mm female axle
- Front Hub - Wise alloy sealed bearing with 3/8” female axle
- Sprocket - DK Kahn 26-tooth alloy
- Cranks -DK Social 3-piece tubular chromoly, 175mm, 48-spline spindle
- BB - 19mm sealed Mid
- Chain - KMC HL710 half link
- Pedals - DK Blender PC platform
- Rims - Wise Rectrix 2 36mm doublewall 36-hole alloy
- Tires - Wise Alula 65psi 20 x 2.25”
- Seat - Wise Covert MX padded Tripod
- Seat Post - Wise alloy Tripod, 25.5mm
- Seat Post Clamp - Integrated
- Grips - DK Tsuka with press-in bar plug
- Features - Removable brake mounts and cable guides, 3D head tube badge
- Weight - 25 lbs 7 oz
