Diamondback Bicycles (United States) - Press Release: The classic 29er hardtail — that’s the best way to describe our premier aluminum model. We’ve taken our strong and light aluminum 29er frame and increased the stiffness and handling precision by adding Boost 148 rear spacing and thru-axles front and rear. We’ve also dressed the bike in an envy-provoking parts package that includes a plush and confidence-inspiring RockShox Reba RL fork, strong Shimano hydraulic disc brakes, and a SRAM GX/NX 1x drivetrain that provides you plenty of granny gear for the ugliest of climbs, without the complexity of a traditional front derailleur system.

Thanks to its 29er wheels, cleaning tricky rock sections and log-overs is a whole lot less tricky on this big wheeler, and since you can never have enough traction — particularly on a hardtail — we went the extra step and equipped this Overdrive with our own Blanchard 25 tubeless ready wheelset.

Specs:

• Frame: Overdrive 29" Butted 6061-T6 Aluminum, Tapered Head Tube, Formed Top / Down Tube, Machined Headtube, Forged Drop Outs, 148x12mm Dropouts w/ Replaceable Hanger

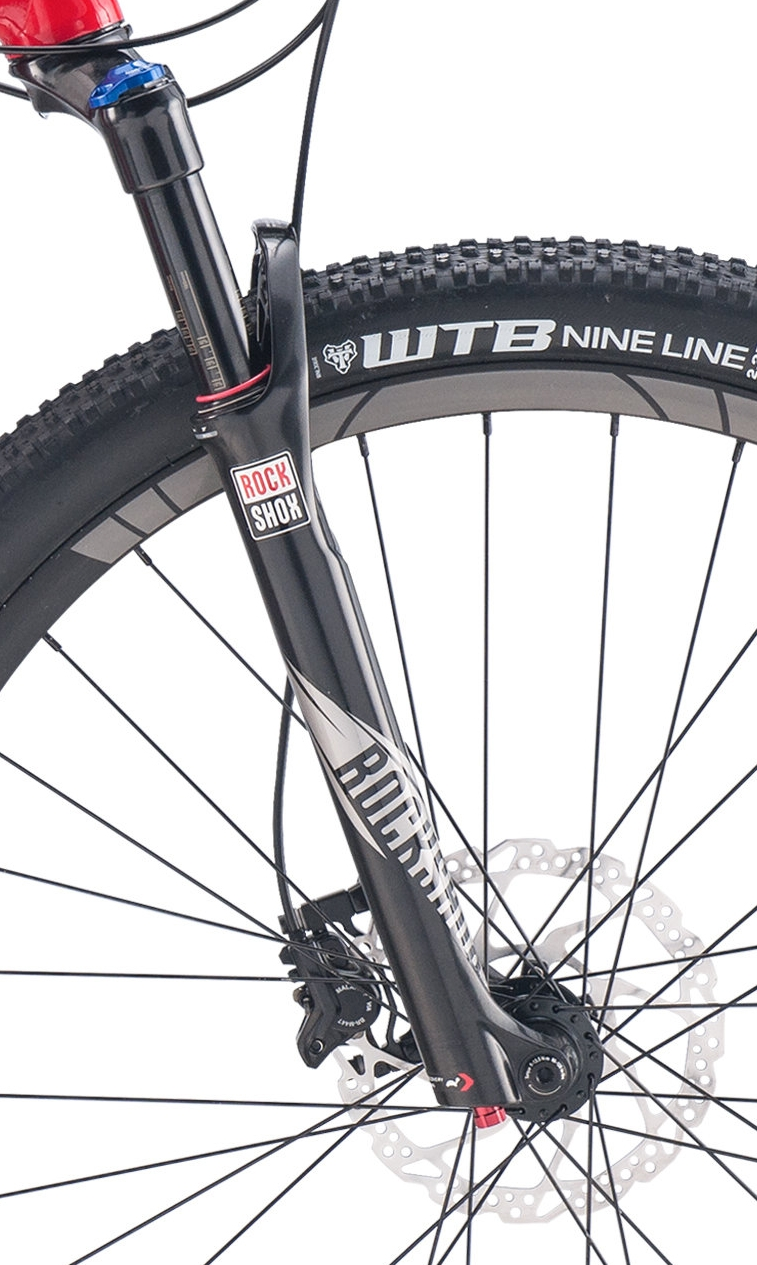

• Fork: Rockshox Reba RL 29", Solo Air, 32mm Stanchion, 100mm Travel, w/ Rebound Adjust, Lockout, 100x15mm Thru-axle, 1.5" Taper Steerer Tube
• Headset: FSA NO.42, Sealed Cartridge for Tapered Headtube

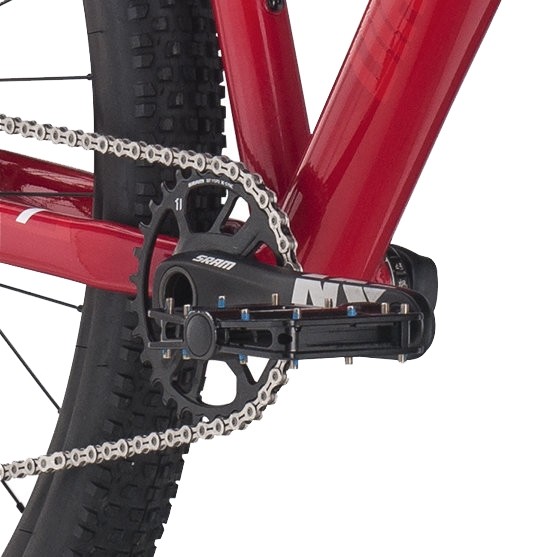

• Cranks: SRAM NX 1x, w/ X-Sync 30T Chain Ring
• Bottom Bracket: SRAM GXP

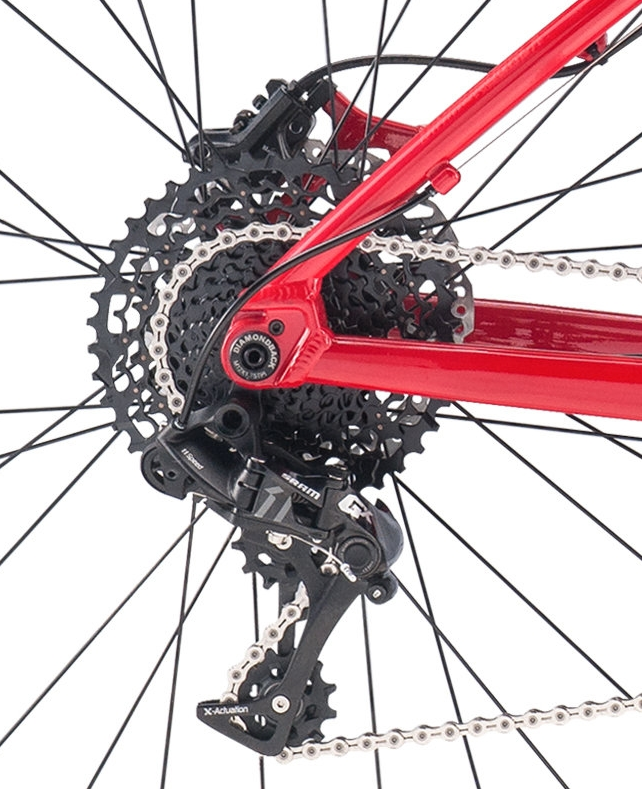

• Rear Derailleur: SRAM GX X-Horizon, 11 Speed
• Shifter: SRAM GX 11 Speed X-Actuation Trigger
• Cogset: SRAM PG1130, 11 Speed, 11-42T
• Chain: KMC X11EL, 11 Speed
• Front Hub: 32h Alloy 15MM Thru-Axle w/ Center Lock Disc Mount
• Rear Hub: 32h Alloy, Boost 148x12mm Thru-axle, 5 Sealed Cartridge Bearing, Cassette w/ CNC Disc Mount
• Spokes: 14g Stainless Steel
• Rims: Diamondback Blanchard 25, Tubeless Compatible
• Tires: WTB Nineline, 29x2.25"
• Brakes: Shimano MT500 Hydraulic Disc, w/ 180mm Front and 160mm Rear Rotors
• Brake Levers: Shimano MT500 Hydraulic
• Pedals: DB4L Alloy Platform w/ Replaceable Pins
• Handlebar: Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore
• Grips: New DB "Flanged" Lock-on, 135mm Silcone
• Stem: DB 3D Forged, 7° Rise, 31.8 Bar Bore
• Seat: DB Race M-series Saddle
• Seatpost: DB Alloy Micro Adjust, 30.9mm
• Extras: Owner’s Manual, Assembly Guide, Tool Kit
