Hunt Bike Wheels (United Kingdom) - Press Release: Designed to be the ultimate tool for Hill Climb events, not general road racing. The seriously high tensile strength 40ton 6K carbon rims are extremely light (280g), and ideal for this type of use in wheels. Please note, the rough and tumble of general road riding and racing, and long fast alpine downhills with extended heavy braking, is better suited to our T700/800 carbon fibre rims used in the rest of our range, as T700/800 carbon fibre pre-preg has higher impact and heat resistance.
Bringing the spoke count down is a clear and obvious way to save weight, but we've also invested in Pillar's high-end Megalite spokes, weighing just 3.4g each! 2017-18 National Hill Climb Champion, Dan Evans, has been crucial to the development of the wheelset, and says "obviously they’re lovely and light but the main thing that comes across is how stiff and solid they feel, nothing like other climbing wheelsets on the market that’s for sure".
Overview:
A featherweight champion:
-
Rims: Extremely high tensile strength 40ton 6K carbon-fibre that weighs just 75GSM. Please note - not suitable for normal clincher or tubeless tyres
-
Tyres: Suitable for 700c tubular tyres between 23mm and up to 30mm. Tyres not included
-
Hubs: Sprint SL J-Bend Hubs, with 7.5 degree engagement. Ideal for fast hill climb accelerations
-
Spokes: Pillar Megalite Bladed Spokes. 3.4g each. 16 Front / 20 Back
-
QR: Hunt Ti Skewers
-
Weight: 991g
Tech Specs:

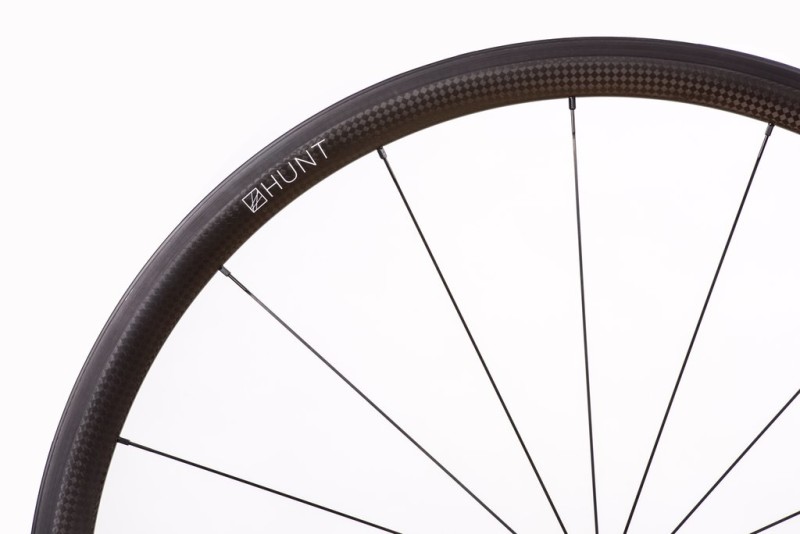

Rims:
-
Tubular Team rim for tubular tyres, not suitable for normal clincher or tubeless tyres
-
Extremely high tensile strength 40ton 6K carbon-fibre mixed with Toray T700/T800 unidirectional
-
Just 280g each
-
23mm outer width ideal for 23-28mm road tyre widths
-
30mm deep wide rounded aero section
-
Griptec basalt ceramic fibre brake-track
Spokes:
-
Pillar's Megalite bladed spokes weighing just 3.4g each
-
Front: 16 spokes laced radially - Aero triple-butted profile
-
Butted 2.0-2.0/0.95-2.0 then PSR section is 2.2
-
Rear: 20 spokes laced 2 cross drive-side and radially non-drive side
-
Butted 2.0-2.0/0.95-2.0 then PSR section is 2.2
-
Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
-
Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area
-
Black stainless treatment
Nipples:
-
Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. Square spoke key included
-
16mm length with washer for a strong connection to the spoke and added durability
-
14 gauge
-
Black anodized finish
Tyres info:
-
Maximum tyre pressure for this rim is 120psi. Please do not exceed the maximum pressure stated on your tyre
-
Only suitable for tubular tyres
Front Hub:
-
Forged and CNC’d 6061-T6 heat treated aluminium alloy body
-
7075-T6 aluminium alloy axles
-
Polished anodized black finish with laser graphics
-
Circular machined dropout interface steps for added stiffness
Rear Hub:
-
7075-T6 heat-treated aluminium alloy freehub body
-
Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies
-
3x treble tooth pawl engagement (9 points of engagement total) for instant acceleration
-
9/10/11 speed Shimano/SRAM compatible freehub, Campagnolo and SRAM XD Driver versions also available
-
Forged and CNC’d 6061-T6 heat treated aluminium alloy body
-
7075-T6 aluminium alloy axles
-
Polished anodized black finish with laser graphics
Bearings:
-
High-grade by EZO Japan
-
Sealed cartridge replaceable units
-
Upgraded to low-friction seals to further reduce rolling resistance
-
Incredibly fast rolling
Quick-Releases:
-
Hunt Titanium, only 29g front and 32g rear
-
Corrosion resistant stainless steel springs
-
Polished anodized black finish with laser graphics
