Introducing Haibike FLYON, the First Complete Haibike ePerformance System

Introducing Haibike FLYON, the First Complete Haibike ePerformance System

Haibike (Germany) - Press Release: The pinnacle of eMTB performance.

Haibike FLYON is the first ever ePerformance system designed and developed by Haibike and sets a new benchmark for high-end ePerformance systems.

Introducing Haibike FLYON:

Conquer nature with next-generation performance of Haibike FLYON. Combining innovation, intuition and intelligent design, this ePerformance system sets new standards in electric mountain bike engineering.

"Haibike’s new FLYON series is probably the biggest developmental leap since the invention of the eMTB." — Design & Innovation Award 2019.

Power - 120 Nm Torque Motor:

Conquer steep ascents, “fly” over trails, explore new frontiers and extend them: An extra strong power package — Made in Germany — ensures the necessary power when you need it, with perfect modulation possible through the five custom assist modes. Together with the technology supplier TQ, we developed a dynamic eMTB motor that is the most powerful mid-drive motor on the market at the moment providing up to 120 Nm torque. Thanks to its patented transmission the motor offers extreme power and efficiency in a compact package.

Integration - Unique Design:

The Haibike FLYON system design integrates innovative technology into a high-quality carbon frame that meets the demands of riders across the most challenging of terrain. The clean silhouette features space-saving battery mounting and integrated cable routing that keep you riding in style for longer.

Support - Intube 630 WH Battery:

Together with our technology partner BMZ we developed a 48 Volt battery with an extremely high energy density and 630 Wh capacity. On the inside, the battery connects via magnet to the system inside the frame and can be secured against theft by a lock developed in collaboration with ABUS. The battery level can be checked via touch sensor. The waterproof battery can be charged via a 4 amp charger either directly through the bike, or separately when removed. For retrofitting, Haibike provides a quick charging function: a 10 amp charger, which brings an empty battery to 80% battery level within only 60 minutes.

Innovation - Speed Sensor Disc:

A newly developed speed sensor disc sends 18 signals per rotation of the wheel to the system and measures the speed 18 times more accurately than any other system available on the market. In this way, the system is able to react significantly faster and more dynamically to changing requirements and recognises acceleration even at slow speeds, e.g. hill starts. The sensor itself is safely positioned out of the way of harm and integrated into the left frame dropout.

Protection - SkidPlate:

The Haibike SkidPlate is a motor cover made of fibre-reinforced plastic and protects the motor effectively from direct impacts when you ride over obstacles as well as from dirt and impacts from stones and other trail debris.

Interface - Full Colour Display:

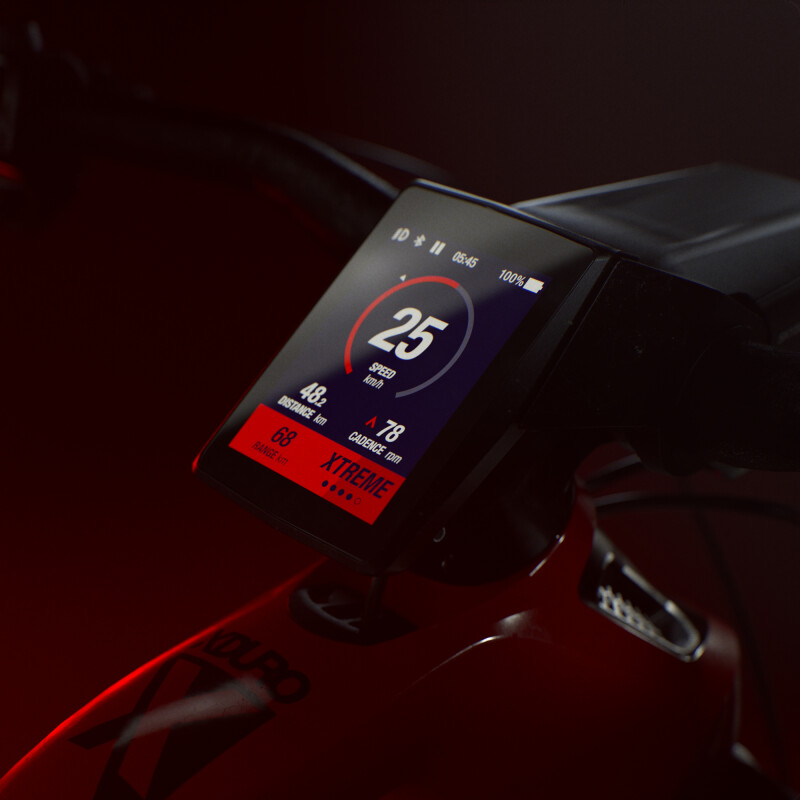

The colour display centrally positioned above the stem is easy to read in every situation due to the transflective design. Current riding data and system information are displayed on four changeable screens. It is also possible to display and analyse training-relevant data such as pulse measurement, cadence or calorie consumption.

Interface - Haibike Remote:

For the central interface between rider and system, we developed a remote that can be operated intuitively, which follows the compact Haibike FLYON design language and provides perfect ergonomics: The mode switch is positioned below the handlebar and can be reached via thumb even during the ride. Not only the mode display serves as feedback, but also a clearly visible LED strap on the remote which changes the colour depending on the level of assistance.

Day or Night - 5.000 Lumen Skybeamer:

Why only master difficult trails and demanding routes by day? The Skybeamer is available in three versions with 150, 300 or 5.000 lumen meaning you can now safely stay out riding after dark! Parking your bike for the short and dark days during the winter months will now be a thing of the past thanks to the powerful headlight. With the Skybeamer 5000, we developed an independent system with daylight, which provides a classic low beam as well as a high beam light with over 5.000 lumen. The light can be operated manually via remote or fully automatically via a brightness sensor in the display.

Night or Day - Twin Tail Lights:

With the Haibike Twin Tail Lights, you can keep on riding even after the sun sets! Eight highly-efficient LEDs make the eBike easily visible, also from the side.

For more information about this article from Haibike click here.

Source link
