Sunday Bikes (USA) – Jake Seeley’s all-new signature frame is designed to complement his progressive, technical street riding.

The Street Sweeper evolves directly from Jake Seeley’s original Broadcaster frame by using shorter chain stays, a steeper head tube angle, a taller bottom bracket and smaller hollow dropouts with integrated chain tensioners. Built with versatility in mind, the Street Sweeper features removable u-brake hardware and Gyro tabs. The frame’s front triangle makes use of traditional round MotoRoss style top and down tubes with proven internal gusseting.

  • 100% 4130 Chromoly Frame (Post-Weld Heat-Treated)
  • MotoRoss style, double-butted, top and down tubes with proven internal gusseting

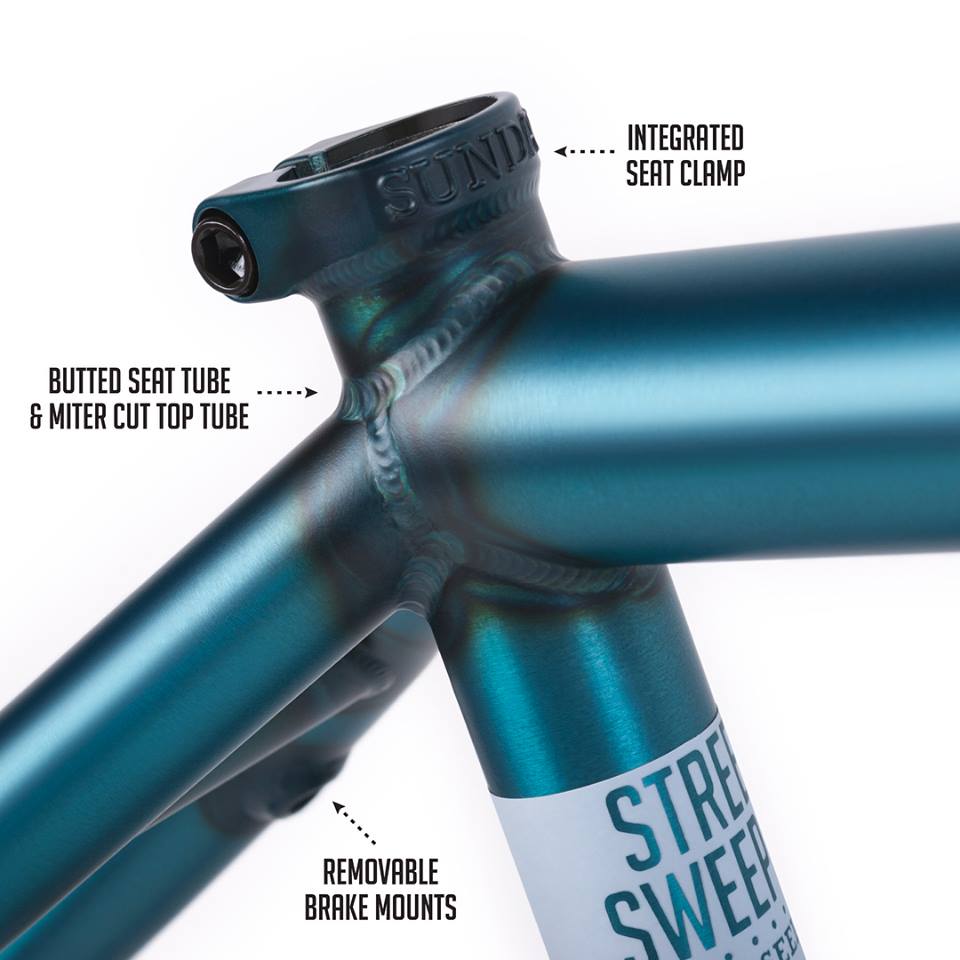

  • Integrated seat clamp
  • Butted Seat Tube & Miter Cut Top Tube: The seat tube is where all three triangles of the frame meet and it is crucial to keep this tube strong
  • Tapered Chain & Seat Stays: Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. The are both angled on the inside for improved chain clearance and weight savings

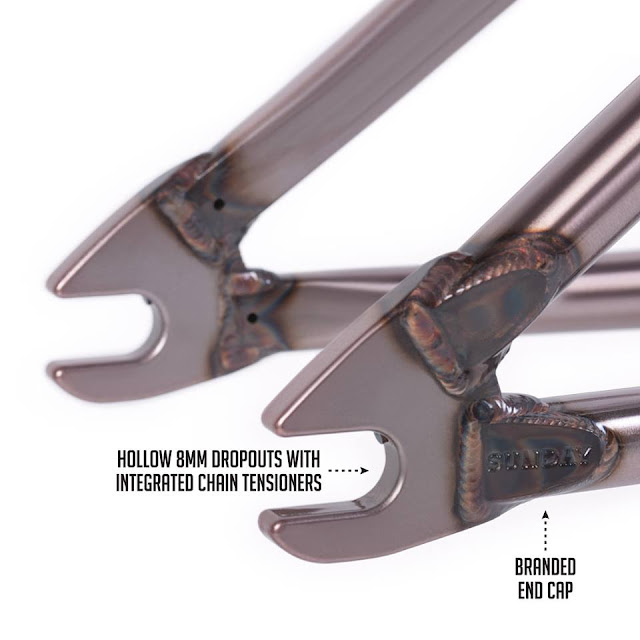

  • Hollow Dropouts with Chain Tensioners: Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in place as well as simplify wheel removal
  • Braking Options: Refined removable brake mounts and cable channel improvements that provides benefits with or without a brake setup

Geometry & Specs:

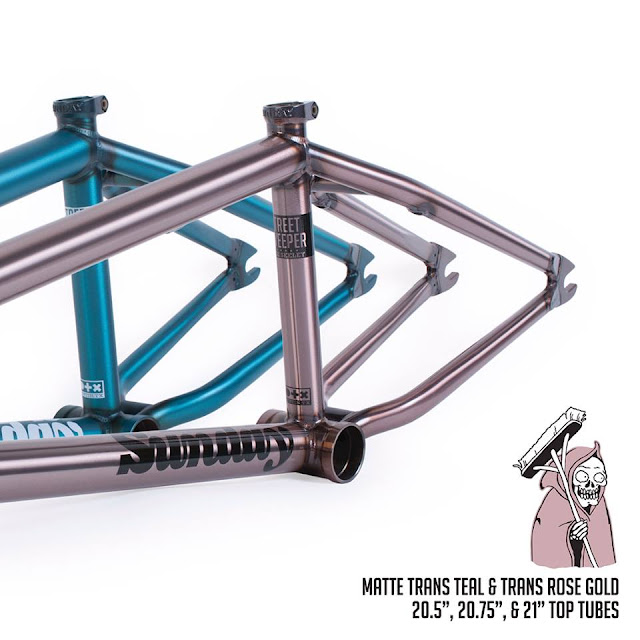

  • Top tube lengths: 20.5", 20.75", or 21"
  • Head tube angle: 75.25°
  • Seat tube angle: 71°
  • Chainstay length: 12.70-13”
  • Bottom bracket height: 11.7”
  • Standover: 8.8”
  • Tire clearance: 2.4”
  • Head tube length: 4.7”
  • Weight: 5 LBS

Current Colors:
  • Raw
  • Trans Purple
