Summum Pro:
Technical specifications:
- Frame - Summum 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 205mm travel, Forward Geometry,alloy upper link with shock eyelet bearings, 12x150mm rear axle, BSA bottom bracket, MAX. capacity sealed bearings, internal or external cable routing, ISCG 05. *Optional Geometry Kit
- Sizes - S: 400mm / M: 400mm / L: 400mm / XL: 400mm
- Rear shock - Fox DHX2 Performance Elite 222x70mm, Settings: low-speed compression, rebound, spring preload
- Shock setting - Compression firm, light rebound , S size spring 450 lbs, M size spring 500 lbs, L/XL 550 lbs spring

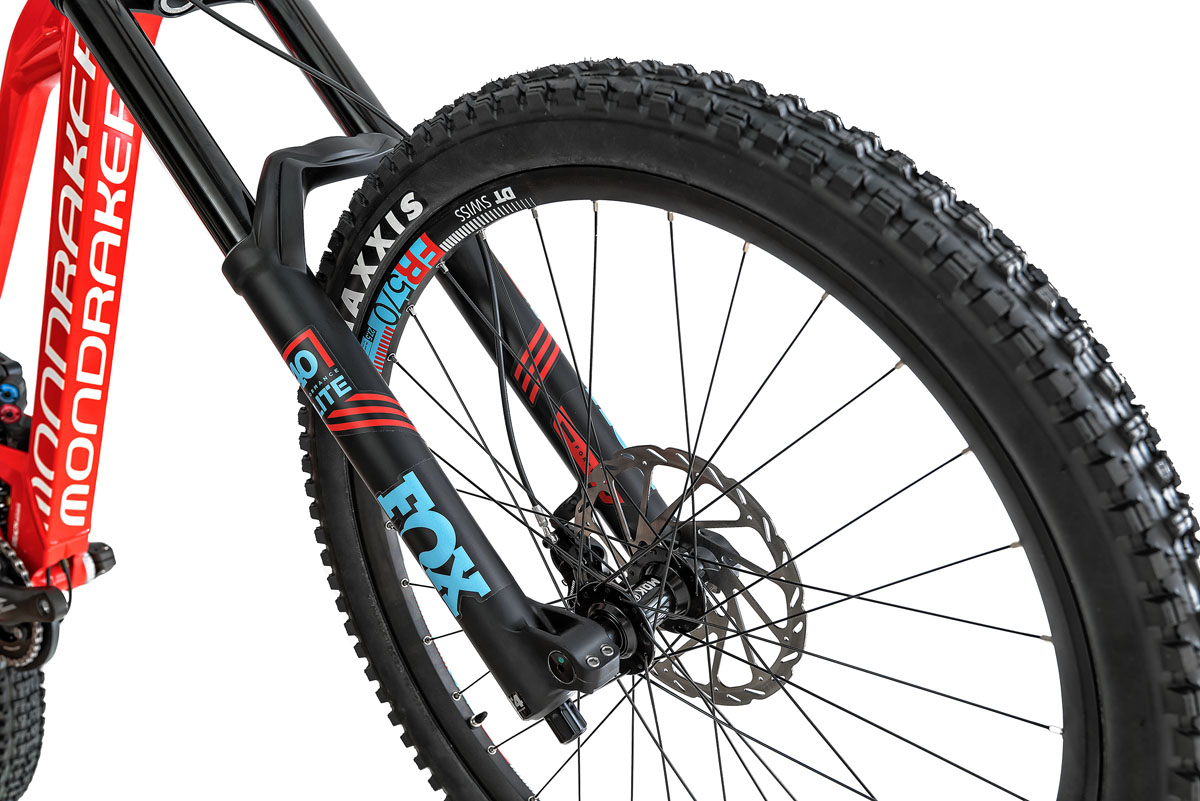

- Fork - Fox 40 27´5 Float FIT4 LSC EVOL Performance Elite 203mm, Air Spring, 1-1/8” steerer tube, 20mm axle. Settings: low-speed compression, rebound, air preload
- Headset - Onoff Mercurium 1.5 ZS for 1-1/8” head tube. 41x30.15x7x45ºx45º ACB sealed bearings, External diameter 56mm
- Stem - Onoff Stoic DH Integrated FG, 20-30mm adjustable length. 6061 aluminium, 31.8mm barbore

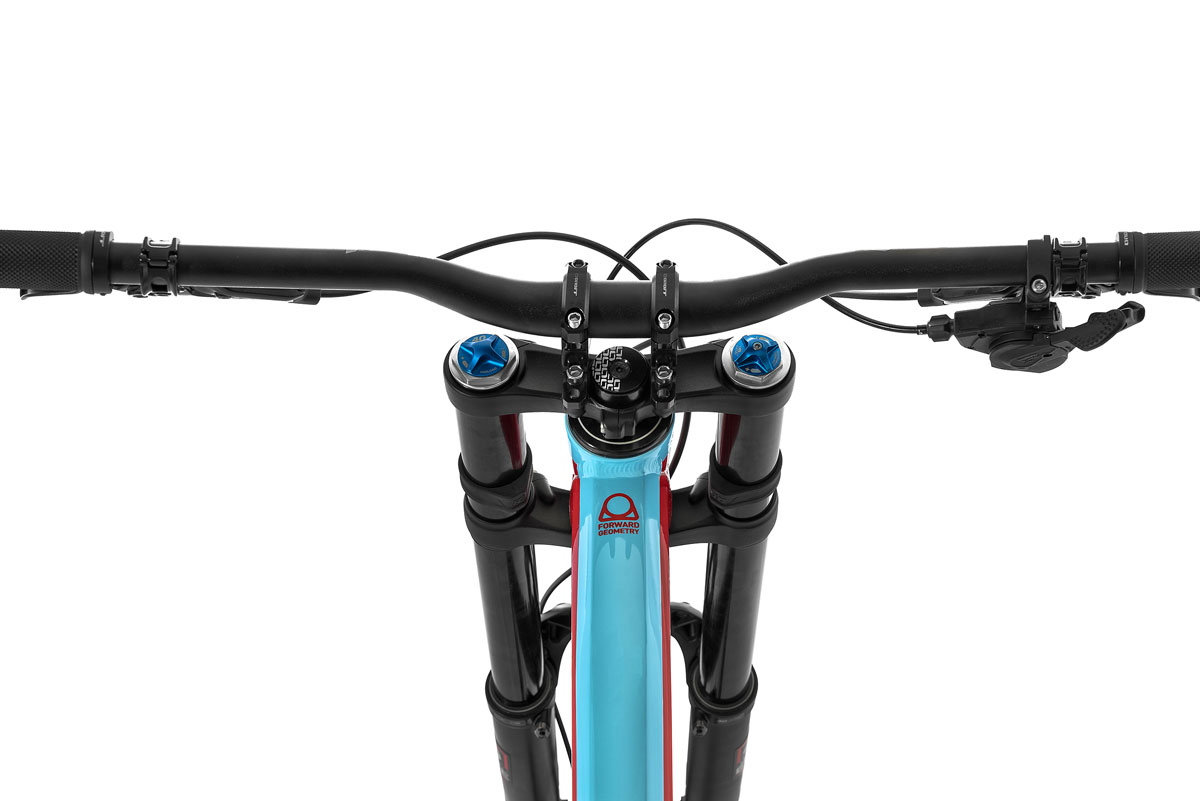

- Handlebar - Mondraker double butted 6061 aluminium, exclusive design for Summum Pro, 1” rise, 780mm width, 9º backsweep, 5º upsweep, 31.8mm barbore
- Grips - Onoff Diamond, 1lock-on, 130mm
- Seatpost - SDG I-Beam SP-751 Alloy 31.6 300mm length, micro-adjustment
- Saddle - SDG I-Beam I-Fly 2.0. High-density PU, lateral protection in cordura
- Front brake - Sram Guide R 203mm, lightweight 4-piston dual-diameter caliper, G2 6 bolts one-piece rotor, semi-metallic pads
- Rear brake - Sram Guide R 200mm, lightweight 4-piston dual-diameter caliper, G2 6 bolts one-piece rotor, semi-metallic pads
- Brake lever - Sram Guide R, tools-free Reach adjust, ambidextrous lever mount
- Rim - Dt Swiss FR570 27’5 33mm external width, tubeless ready. 32 holes
- Spokes - CN stainless steel butted 2.0-1.8-2.0
- Front hub - MDK Disc Pro DH 20mm x 110mm, IS 6 bolts
- Rear hub - MDK Disc Pro DH 12x150mm, sealed bearings, IS 6 bolts
- Front tyre - Maxxis Minion DHR II 27’5 x 2.4 Super Tacky Compound, Wire
- Rear tyre - Maxxis Minion DHR II 27’5 x 2.4 Super Tacky Compound, Wire
- Crank - Shimano Zee M645, alloy, reinforced steel axle. 165mm
- Rings - Aluminium, 36T
- Bottom bracket - Shimano 73mm
- Chain - Shimano HG95 10s
- Front derailleur - Chainguide E.13 LG1 + DMB (Direct Mount Bashguard) Gen 2 Stealth Idler, Aluminum hardware, adjustable/replaceable lower armature, solvent-resistant polycarbonate, larger ISCG 05 mount holes, adjustable upper slider opens without tools
- Rear derailleur - Shimano Zee RD-M640-SS 10s. Shadow Plus technology. Short cage
- Lever - Shimano Zee SL-M640 10s. 2-way Release
- Sprocket - Shimano CS-HG500-10 11-25T, 10s
- Hanger - Mondraker M051
- Others - *Optional Geometry Kit: Chainstay adaptors for 445mm, 450mm, 455mm, 460mm. Steering cups of: 0º, +/- 1º, +/-2º. Brake adaptors of: 455mm, 460mm
- Weight without pedals - 17Kg
Summum:
Technical specifications:
- Frame - Summum 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 205mm travel, Forward Geometry,alloy upper link with shock eyelet bearings, 12x150mm rear axle, BSA bottom bracket, MAX. capacity sealed bearings, internal or external cable routing, ISCG 05. *Optional Geometry Kit
- Sizes - S: 400mm / M: 400mm / L: 400mm / XL: 400mm
- Rear shock - Fox Van RC Performance 222x70mm. Settings: low-speed compression, rebound, spring preload
- Shock setting - Light compression, Light rebound, S size spring 400 lbs, M size spring 450 lbs, L/XL 500 lbs spring
- Fork - Marzocchi 380 27'5' CR 200mm, Coil Spring, 1-1/8” steerer tube, 20mm axle, Settings: Low-speed compression, rebound, spring preload
- Headset - Onoff Mercurium 1.5 ZS for 1-1/8” head tube. 41x30.15x7x45ºx45º ACB sealed bearings, External diameter 56mm
- Stem - Onoff Stoic DH Integrated FG, 20-30mm adjustable length. 6061 aluminium, 31.8mm barbore
- Handlebar - Mondraker double butted 6061 aluminium, Exclusive design for Summum Pro, 1” rise, 780mm width, 9º backsweep, 5º upsweep, 31.8mm barbore
- Grips - Onoff Diamond, 1lock-on, 130mm
- Seatpost - SDG I-Beam SP-751 Alloy 31.6 300mm Micro-adjustment
- Saddle - SDG I-Beam I-Fly 2.0. High-density PU, cordura side protection
- Front brake - Sram Guide R 203mm, lightweight 4-piston dual-diameter caliper, G2 6 bolts one-piece rotor, semi-metallic pads
- Rear brake - Sram Guide R 200mm, lightweight 4-piston dual-diameter caliper, G2 6 bolts one-piece rotor, semi-metallic pads
- Brake lever - Sram Guide R, tools-free Reach adjust, ambidextrous lever mount
- Rim - MDK-DP1 27’5 32mm external width. 32 holes
- Spokes - CN stainless steel
- Front hub - MDK Disc Pro DH 20x110mm, IS 6 bolts
- Rear hub - MDK Disc Pro DH 12x150mm, sealed bearings, IS 6 bolts
- Front tyre - Maxxis Minion DHR II 27’5 x 2.4 Super Tacky Compound, Wire
- Rear tyre - Maxxis Minion DHR II 27’5 x 2.4 Super Tacky Compound, Wire
- Crank - Truvativ Ruktion 1.0, Alloy HP cast arm, 165mm
- Rings - 36T
- Bottom bracket - Truvativ Howitzer XR 73mm
- Chain - Sram PC-951 9s
- Front derailleur - E.13 LG1 chain guide, Nickel Chrome protector, height adjustable to appropriate plate size. ISCG 05
- Rear derailleur - Sram X7 9s short cage, Exact actuation
- Lever - Sram Trigger X5, 1:1 Actuation
- Sprocket - Sram PG-950 11-26T 9s
- Hanger - Mondraker M051
- Others - *Optional Geometry Kit: Chainstay adaptors for 445mm, 450mm, 455mm, 460mm. Steering cups of: 0º, +/- 1º, +/-2º. Brake adaptors of: 455mm, 460mm
- Weight without pedals - 17Kg
