New 2018 Mondraker e-Prime eMTB Bike Range

By Mondraker
Posted on Jul 29, 2017

Mondraker (Spain) – Mondraker revealed their New 2018 Mondraker e-Prime eMTB Range.

e-Prime Carbon R +:

Features:

Frame - e-Prime 27´5+ Stealth Full Carbon, Forward Geometry, Tapered head tube, Interface for Bosch Performance CX, HHG internal cable routing, plastic lower protector for motor, 12x148mm rear axle
Sizes - S: 390mm / M: 430mm / L: 470mm / XL: 510mm
Fork - RockShox Judy Gold 27´5+ RL Solo Air 120mm, Tapered head tube, 15x110mm Boost axle. Settings: rebound, compression adjustment at low-speed to lock, air preload
Headset - Onoff Saturn Tapered for 1-1/8” -> 1/5” head tube. Top bearing 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Stoic FG 30mm. Forged 6061 alloy, 31.8mm barbore
Handelbar - Mondraker custom design 0.5 760mm
Grips - Onoff Diamond, 1lock-on, 130mm
Seatpost - Onoff Pija Dropper 31.6mm, internal hose guide. Size S: 337x100mm, size M/L/XL: 387x125mm
Saddle - Exclusive Mondraker e-Prime Carbon R+ design
Front brake - Sram Level T 200mm, centerline 6 bolts one-piece rotor, organic pads
Rear brake - Sram Level T 180mm, centerline 6 bolts one-piece rotor, organic pads
Brake lever - SRAM Level T, brake lever reach adjust, 2 bolts clamp Matchmaker compatible, ambidextrous lever mount
Rim - New MDK-EP1 27´5+ Asy 35 TLR wheelset
Spokes - CN stainless
Front hub - MDK Pro II 15x110mm
Rear hub - MDK Pro II 12x148mm
Front tyre - Kenda Havok 27.5x2.8, TLR, DTC, EMC, 120TPI, folding
Rear tyre - Kenda Havok 27.5x2.8, TLR, DTC, EMC, 120TPI, folding
Crank - Bosch Performance Line CX system w/ PowerPack 500Wh Bosch battery, Purion on-board computer. Miranda Delta crankset 16T
Chain - Sram PC-1031 10s
Rear derailleur - Sram GX Type 2.1 with Roller Bearing Clutch and Cage Lock, long cage, X-Horizon system
Lever - Sram Trigger GX, 10s, X-Actuation, Zero Loss Technology
Sprocket - Sunrace CSMCS3 11-42T 10s
Hanger - Mondraker M066

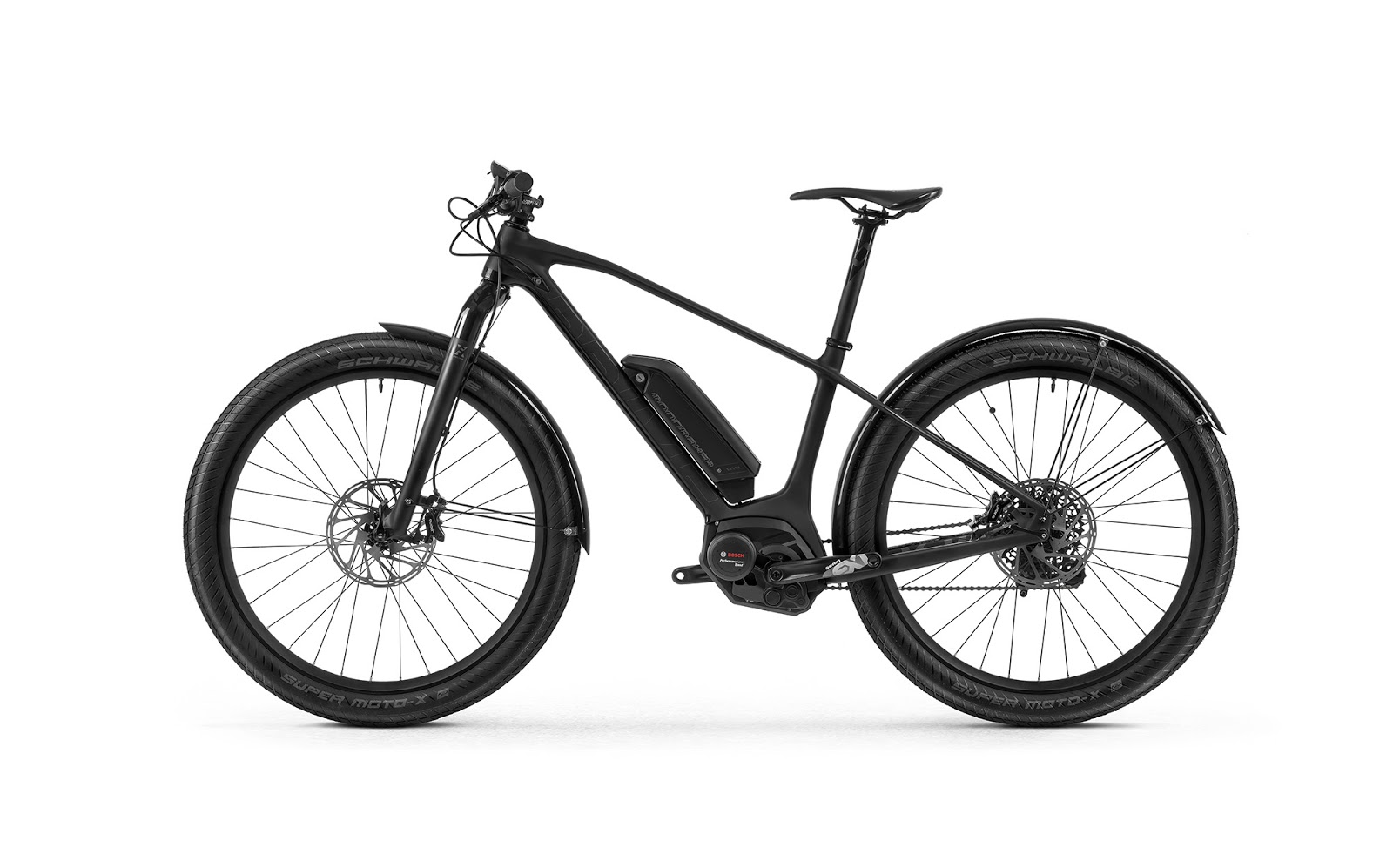

e-Prime Carbon SX +:

Features:

Frame - e-Prime 27´5+ Stealth Full Carbon, Forward Geometry, Tapered head tube, Interface for Bosch Performance CX, HHG internal cable routing, plastic lower protector for motor, 12x148mm rear axle
Sizes - S: 390mm / M: 430mm / L: 470mm / XL: 510mm
Fork - Stealth Full carbon fork 27´5+, 15x110mm Boost axle
Headset - Onoff Saturn Tapered for 1-1/8” -> 1/5” head tube. Top bearing 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Stoic FG 30mm. Forged 6061 alloy, 31.8mm barbore
Handelbar - Mondraker custom design 0.5 760mm
Grips - Onoff Diamond, 1lock-on, 130mm
Seatpost - Onoff Notion 0-R. aluminium 2014 T6 2D-molded head. Diameter 31.6mm. Length 400mm
Saddle - Mondraker e-Prime Carbon SX + exclusive design
Front brake - Magura MT5E 203mm, 4 piston caliper, 6 bolts one-piece rotor
Rear brake - Magura MT5E 203mm, 4 piston caliper, 6 bolts one-piece rotor
Brake lever - Magura MT5E, brake lever reach adjust, brake light sensor
Rim - DT Swiss H1900 Spline 27´5, internal width 35mm, e-bike specific,Tubeless Ready, 28 spokes
Spokes - Hybrid sytem, stainless steel
Front hub - DT Swiss 370, Boost 15x110mm axle, IS 6 bolts mount
Rear hub - DT Swiss 370, Boost 12x148mm axle, IS 6 bolts mount
Front tyre - Schwalbe Super Moto X 27.5x2.8, RaceGuard, SnakeSkin, ECE-R75
Rear tyre - Schwalbe Super Moto X 27.5x2.8, RaceGuard, SnakeSkin, ECE-R75
Crank - Bosch Performance Line Speed system w/ PowerPack 500Wh Bosch battery, Intuvia on-board computer. Sram EX1 crankset 18T
Chain - Sram PC 1110 11s
Rear derailleur - Sram GX Type 2.1 with Roller Bearing Clutch and Cage Lock, long cage, Exact actuation, 11s
Lever - Sram Trigger GX, 11s. Zero Loss technology, Exact actuation
Sprocket - Sram PG-1130 11-42T 11s
Hanger - Mondraker M066

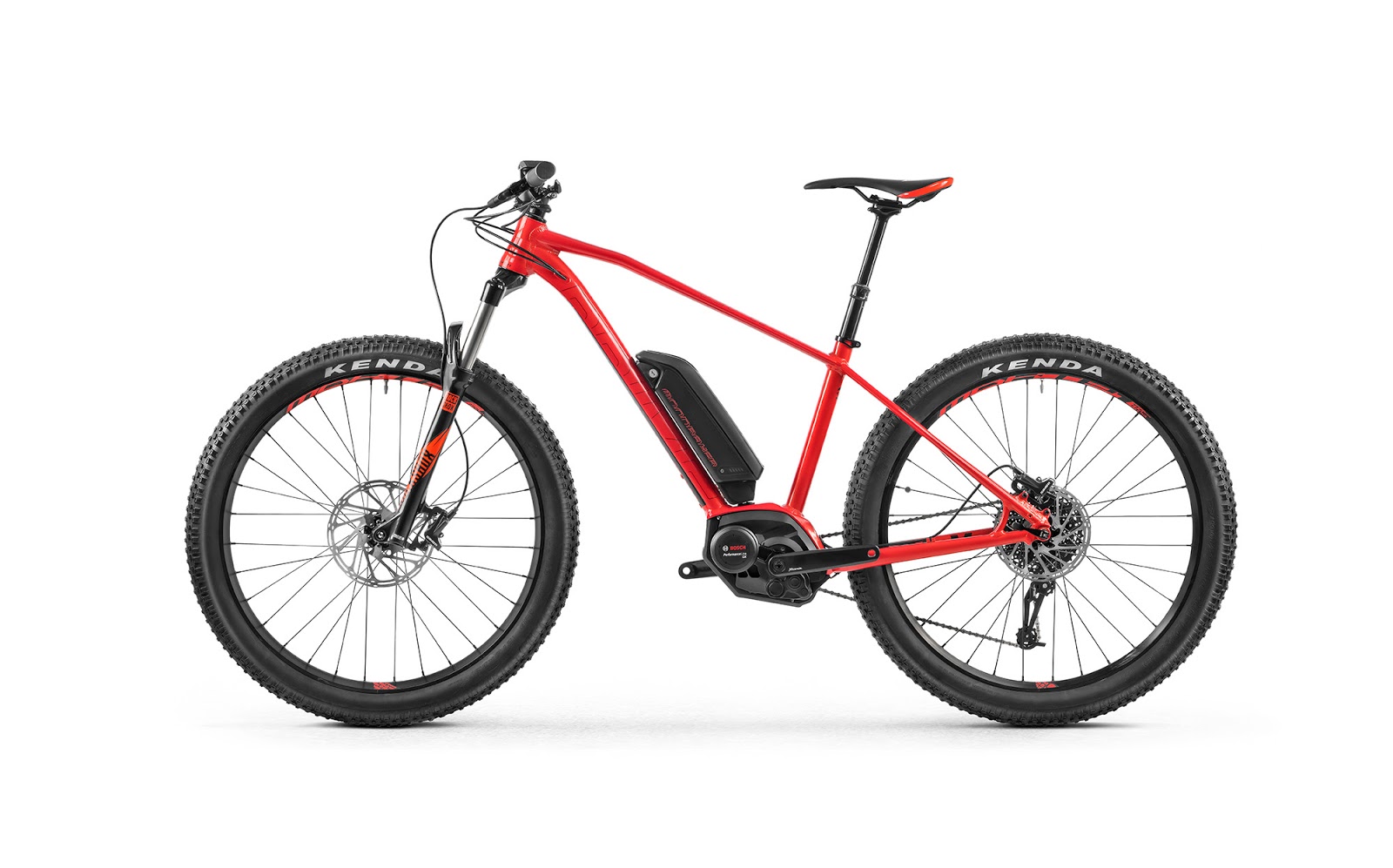

e-Prime R +:

Features:

Frame - e-Prime 27´5+ 6061 Xtralite Alloy, Forward Geometry, Tapered head tube, Interface for Bosch Performance CX, plastic lower protector for motor, 12x148mm rear axle
Sizes - XS: 370mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm
Fork - Fox 32 27´5 Rhythm Sweep adjust Evol, 120mm, 2 position lever with medium reference positions, Tapered steerer tube, 15x110mm Boost axle. Settings: rebound, compresion Open to Firm, air preload
Headset - Onoff Saturn Tapered for 1-1/8” -> 1/5” head tube. Top bearing 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Stoic FG 30mm. Forged 6061 alloy, 31.8mm barbore
Handelbar - Mondraker custom design 0.5 760mm
Grips - Onoff Diamond, 1lock-on, 130mm
Seatpost - Onoff Pija Dropper 31.6mm, internal hose guide. Size S: 337x100mm, size M/L/XL: 387x125mm
Saddle - Exclusive Mondraker e-Prime R+ design
Front brake - Sram Level T 200mm, centerline 6 bolts one-piece rotor, organic pads
Rear brake - Sram Level T 180mm, centerline 6 bolts one-piece rotor, organic pads
Brake lever - Sram Level T, brake lever reach adjust, 2 bolts clamp Matchmaker compatible, ambidextrous lever mount
Rim - New MDK-EP1 27´5+ Asy 35 TLR wheelset
Spokes - CN stainless
Front hub - MDK Pro II 15x110mm
Rear hub - MDK Pro II 12x148mm
Front tyre - Kenda Havok 27.5x2.8, TLR, DTC, EMC, 120TPI, folding
Rear tyre - Kenda Havok 27.5x2.8, TLR, DTC, EMC, 120TPI, folding
Crank - Bosch Performance Line CX system w/ PowerPack 500Wh Bosch battery, Purion on-board computer. Miranda Delta crankset 16T
Chain - Sram PC-1110 11s
Rear derailleur - Sram NX Type 3 with Roller Bearing Clutch and Cage Lock, long cage, X-Horizon system
Lever - Sram Trigger NX1, 11s, X-Actuation, Zero Loss Technology
Sprocket - Sram PG-1130 11-42T 11s
Hanger - Mondraker M066

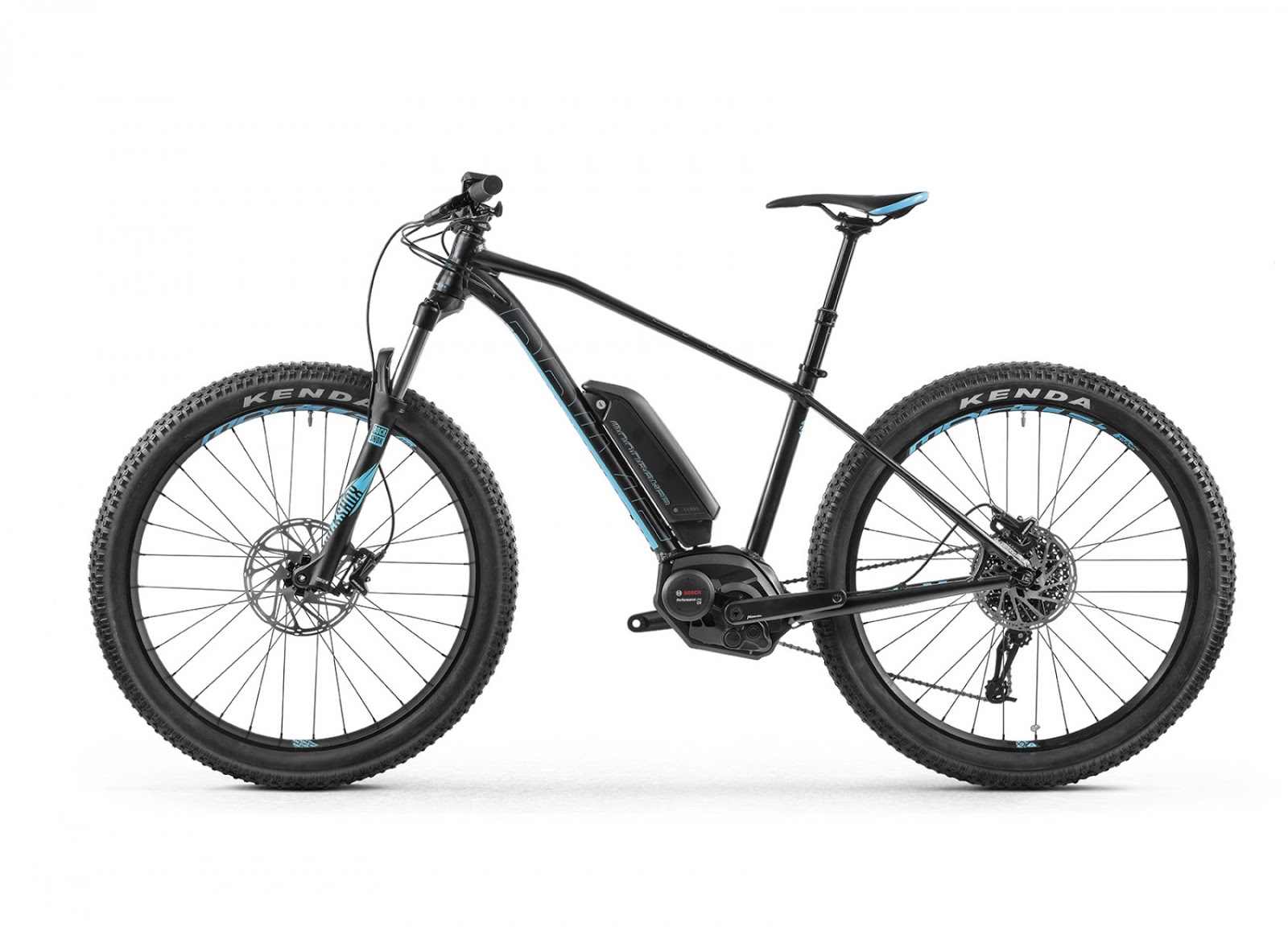

e-Prime +:

Features:

Frame - e-Prime 27´5+ 6061 Xtralite Alloy, Forward Geometry, Tapered head tube, Interface for Bosch Performance CX, plastic lower protector for motor, 12x148mm rear axle
Sizes - S: 390mm / M: 430mm / L: 470mm / XL: 510mm
Fork - RockShox Judy Silver TK 27´5+ Solo Air Solo Air 120mm, Tapered head tube, 30mm steel bars, 15x110mm Boost axle. Settings: rebound, Turnkey lock, air preload
Headset - Onoff Saturn Tapered for 1-1/8” -> 1/5” head tube. Top bearing 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Stoic FG 30mm. Forged 6061 alloy, 31.8mm barbore
Handelbar - Mondraker custom design 0.5 760mm
Grips - Onoff Diamond, 1lock-on, 130mm
Seatpost - Onoff Pija Dropper 31.6mm, internal hose guide. Size S: 337x100mm, size M/L/XL: 387x125mm
Saddle - Exclusive Mondraker e-Prime + design
Front brake - Sram Level 200mm, centerline 6 bolts one-piece rotor, organic pads
Rear brake - Sram Level 180mm, centerline 6 bolts one-piece rotor, organic pads
Brake lever - Sram Level, brake lever reach adjust, ambidextrous lever mount
Rim - New MDK-EP1 27´5+ Asy 35 TLR wheelset
Spokes - CN stainless
Front hub - MDK Pro II 15x110mm
Rear hub - MDK Pro II 12x148mm
Front tyre - Kenda Havok 27.5x2.8, TLR, DTC, EMC, 120TPI, folding
Rear tyre - Kenda Havok 27.5x2.8, TLR, DTC, EMC, 120TPI, folding
Crank - Bosch Performance Line CX system w/ PowerPack 500Wh Bosch battery, Purion on-board computer. Miranda Delta crankset 16T
Chain - Sram PC-1031 10s
Rear derailleur - Sram GX, long cage, Exact actuation
Lever - Sram Trigger X5, 10s, 1:1 Actuation
Sprocket - Sunrace CSMCS3 11-42T 10s
Hanger - Mondraker M066
