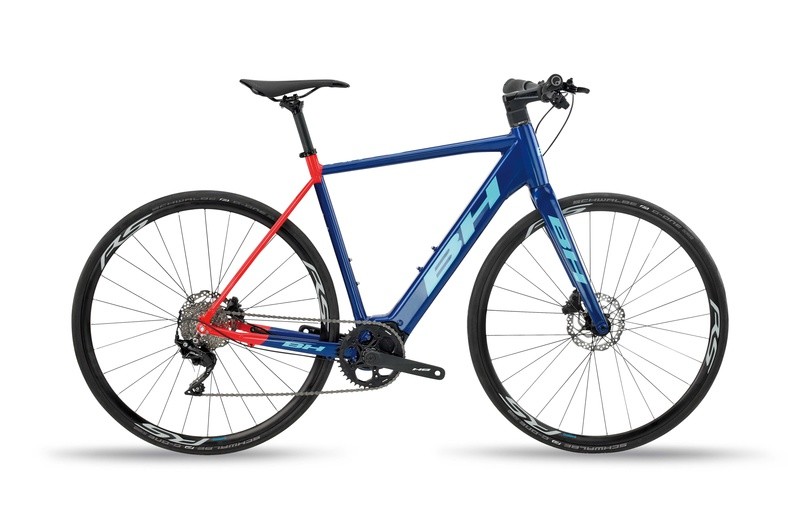

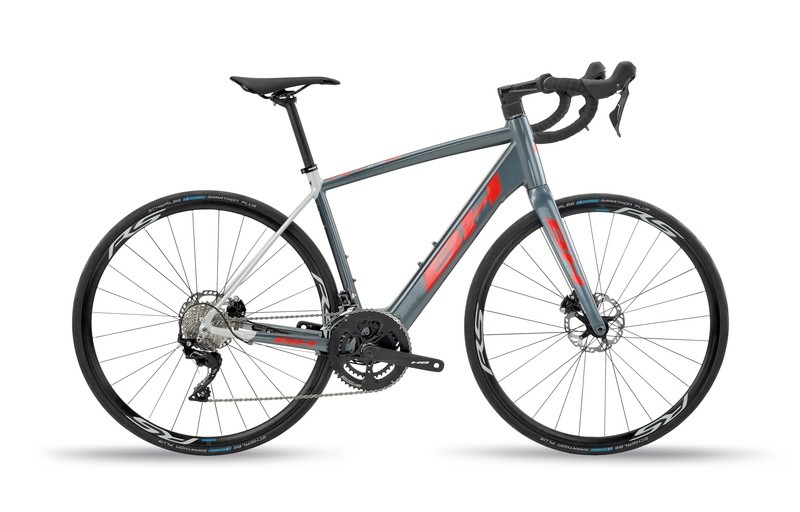

BH (Spain) - Press Release: We have designed the Core system with the aim of creating a range of e-bikes with long ranges that preserve the essence, geometry and traditional shapes of road and gravel bikes.

165 Km of freedom:

One of the most important features of Core e-bikes is their 165 km range, thanks to the large capacity of their 540 Wh hidden battery, which has energy density of more than 234 Wh/kg.

The charging port is located on the side of the down tube, enabling fast charging: it is possible to charge the battery to 80% in 1.5 hours.

Lightweight, compact, powerful and very very quiet:

The motor of Core e-bikes is characterised by being extremely quiet, compact, lightweight and powerful. It is integrated into the frame with a minimal visual impact and a low centre of gravity and it is protected by two side housings to ensure an insulated and hermetic seal.

It only weights 2.5 kg and enables the use of conventional double-plate groupsets. And it does not generate any friction in non-assistance mode, allowing the user to use it at speeds above 25 km/h without any additional effort.

The motor delivers 250 W of power and generates a maximum torque of 65 Nm.

Only 163 mm:

The motor was designed to be as small and compact in size as possible. It has also been designed with users of road and gravel bikes in mind.

With a Q-Factor of only 163 mm which optimises the cyclist's performance, efficiency and ergonomics.

With extremely short rear chainstays for a very quick and reactive geometry.

No cables:

The road and gravel bike range features the ACR system, thus ensuring 100% internal cabling.

Core heart:

The Core display is fully integrated into the stem and it features a button that allows you to increase or reduce the assistance level, through an LED colour system.

Additionally, the display shows the user the charge level left in the battery in a simple and visual way and it features LED colour lights for the different modes.

BH has developed the Core App (IOS and Android) that allows you to connect your smartphone to the bike's Core system via Bluetooth. Among other options, the Core App allows the user to switch between the motor's assistance modes whenever they like.

Beyond your limits:

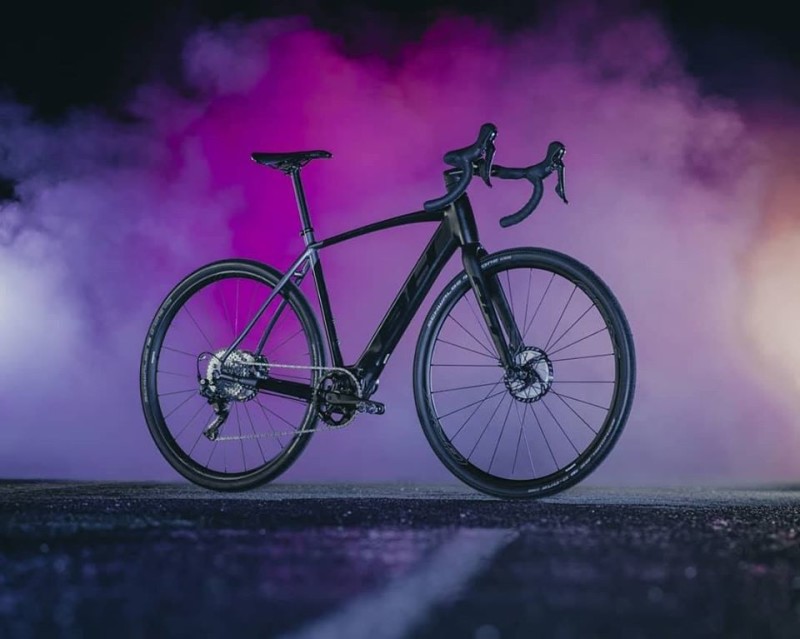

The Core's frame lines maximise the visual sensation of a bike with minimalist lines and a refined and stylish aesthetic appearance.

The result: the simple and minimalist integration of the electrical components with the elements you would expect to find on conventional road and gravel bikes.
