New BH Rebel e-Bike Range

By BH
Posted on Oct 21, 2017

BH (Spain) – "The Rebel series incorporates Yamaha technology. A compact, aggressive design, a central motor completely integrated into the bootm bracket and a lateral extraction battery incorporated into the front triangle guarantees maximum performance, efficiency and reactivity", shared BH.

The MTB range has a side-extraction battery, located in the front triangle and integrated with the design of the frame. It incorporates the Boost 148x12 rear axle, dropout and high-end seats and grips. In addition to models with telescopic seatposts and wheels for tubeless tyres.

"There are great new features in the peripherals in the Trekking range; the lights, racks, seats and grips have been upgraded to obtain high-performance bicycles that meet the needs of our most demanding customers. And a third, more compact size has been added for all Cross and Jet models. New features of the Rebel Urban bikes include the battery on the rack and a folding model", explained the company.

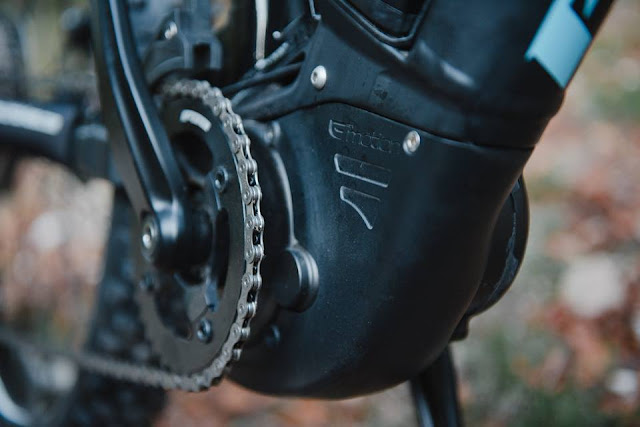

Rebel bikes consist of a Yamaha compact central motor, either 3.5 kg (PW motor) or 3.1 kg (PW-X motor), with an aggressive design and built into the bottom bracket, with a high torque of up to 80 Nm and 250 W power, limited to 25 km/h and throttle restricted to 6 km/h. The Yamaha central motor is built into the frame with minimal visual impact and a low centre of gravity. It also enables the use of a conventional groupset – double plate or internal gear hub – and offers no resistance in «no assistance» mode.

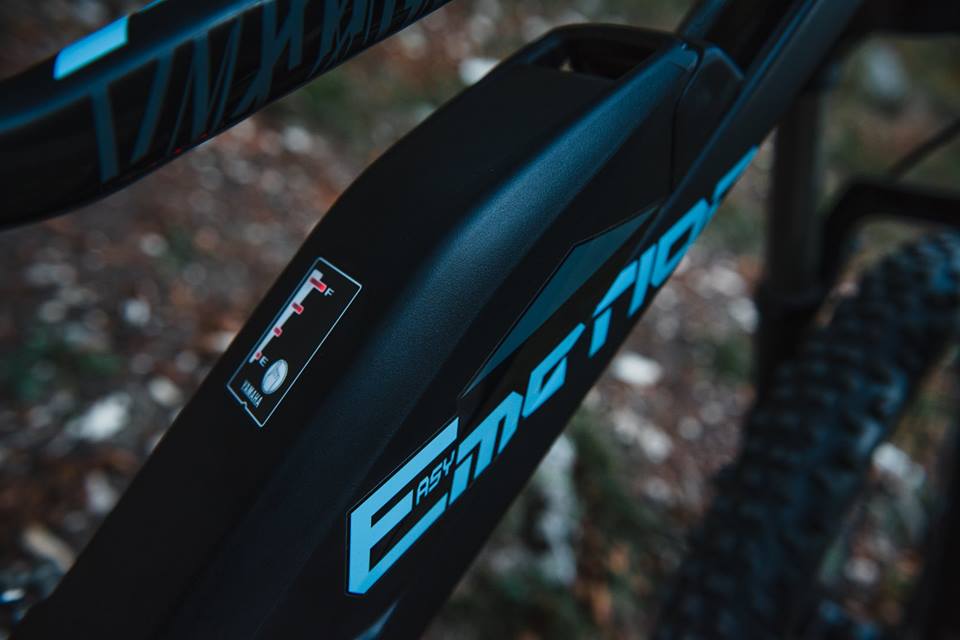

500WH and 400WH Batteries:
The battery allows an autonomy up to 105km (Standard 500Wh battery) and 85km (Lite 400Wh battery). It allows a rapid charge to 80% in only 1.5 hours

LED and LCD Displays:

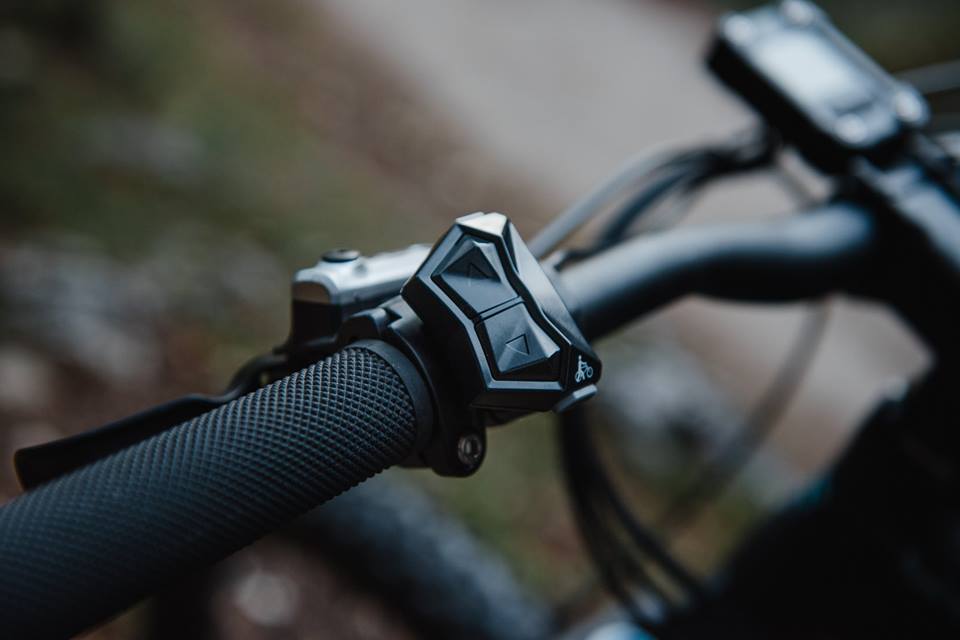

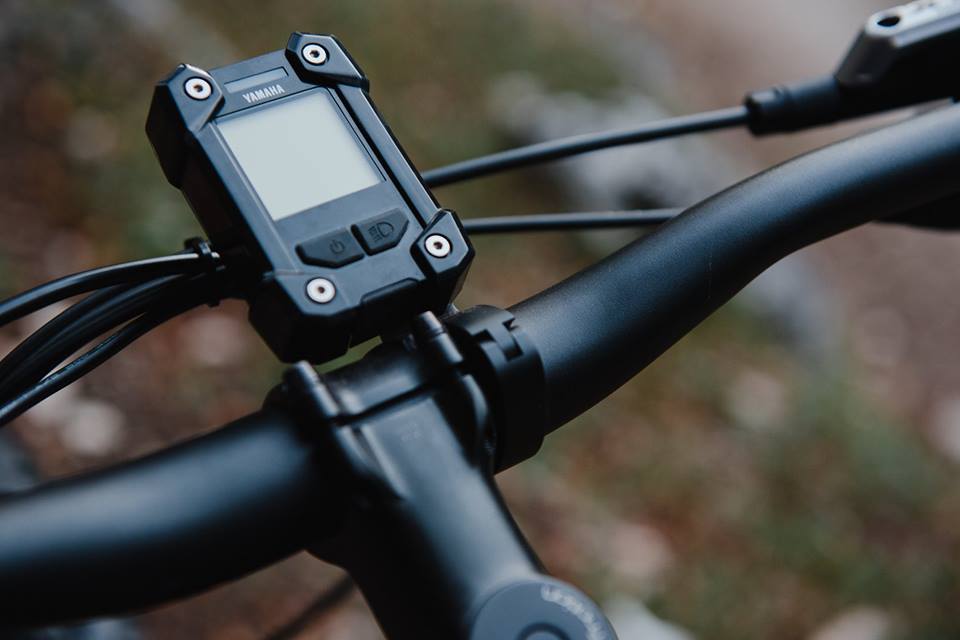

Rebel bikes come with two types of display: The PW-X range has a robust and highly visual screen that allows the rider to concentrate on the ride. A design with a housing that protects the screen from vibrations and knocks and with high visibility and an LED light that indicates the assistance mode (green for ECO and ECO+ modes, blue for HIGH/STD and yellow for EXPW). The control buttons to set the assistance mode are ergonomic and are on the handlebar for ease of use. And in the PW range there is a removable central LCD display with a remote control on the handlebar that allows you to access the different functions.

Rebel Lynx 5.5 27,5" Plus PW-X Specifications:
