Eastern Bikes (United States) - The expert level Eastern Shovelhead has been an Eastern staple for over a decade. A full chromoly frame, fork and bars provide lightweight performance. The Shovelhead is finished off with fully sealed hubs, 3-piece 48 Spline cranks, Squealer 100psi tires, alloy sprocket, double wall rims and our new Facet pedals (2 Steel Pegs Included).

• 25.6 Lbs
• Chromoly Frame
• Chromoly Fork
• Chromoly Bars
• Sealed Hubs
• 3 Piece 48 Spline Cranks
• Mid BB
• Integrated Headset
• Eastern Grips
• Alloy Eastern Phorcys Sprocket
• Pivotal Seat
• Double Wall Front and Rear Rims
• 2.4" Eastern Squealer 100psi Tires
• Eastern Facet Pedals
• 2 Cold Steel Pegs

Frame:

• Full Chromoly Shovelhead 20", Removable Brake Mounts
• Top Tube Size: 21.0″
• BB: Mid
• Headtube: Integrated
• Chainstay Length: 13.38″
• Clamp: Integrated with Frame

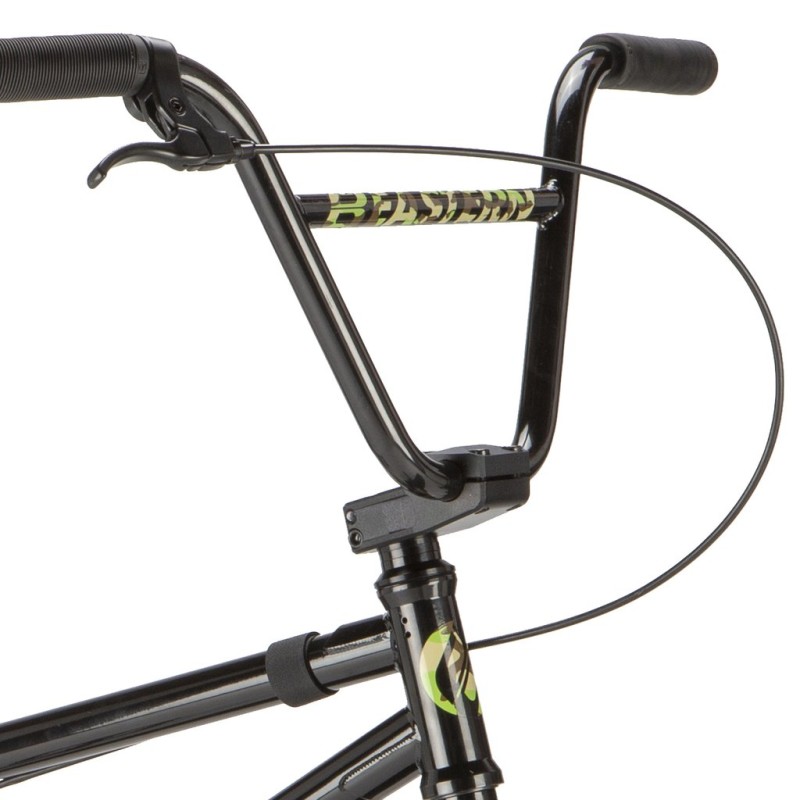

Bars:

• Full Chromoly 9.0"
• Upsweep/Backsweep 12⁰/1⁰

Fork:

• Full Chromoly, Tapered Legs, 3/8" Dropouts
• Fork Rake: 28mm

Other Components:

• Headset Integrated 45°X45° Sealed Cartridge Bearing
• Stem CNC Machined 6061 Missile Grade Aluminum Top Load Stem
• Grip Eastern Riblet Grips
• Crank 3-Piece, Tubular Heat-Treated Chromoly, 48-Splined Spindle, 170mm Arm Length
• Bottom Bracket Sealed Bearing Mid
• Chainwheel Eastern Phorcys, Alloy, 28T
• Chain KMC Z510 1/2 x 1/8
• Pedal Eastern Facet Pedal with 9/16" Chromoly Axle
• Front Brake N/A
• Front Lever N/A
• Rear Brake U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
• Rear Lever Forged Alloy Lever
• Brake Cable [S] Linear
• Saddle Medium Width Pivotal Seat
• Post Pivotal, Forged Alloy, 200mm
• Front Hub Sealed Bearing, Forged Alloy Shell, Drilled for 36 Spokes, Female Axle System with 3/8" Allen Key Bolts
• Rear Hub Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
• Freewheel 9 Tooth Driver with Hub
• Front Rim Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires
• Rear Rim Alloy, Double Wall, Drilled for 36 Spokes. For 20″ Tires
• Spokes 14 Gauge with Brass Nipples
• Front Tire Eastern Squealer 100psi 20 x 2.40
• Rear Tire Eastern Squealer 100psi 20 x 2.40
• Peg Cold Steel Pegs (2pcs)
