New Kink BMX Pillar 24 Cranks

New Kink BMX Pillar 24 Cranks

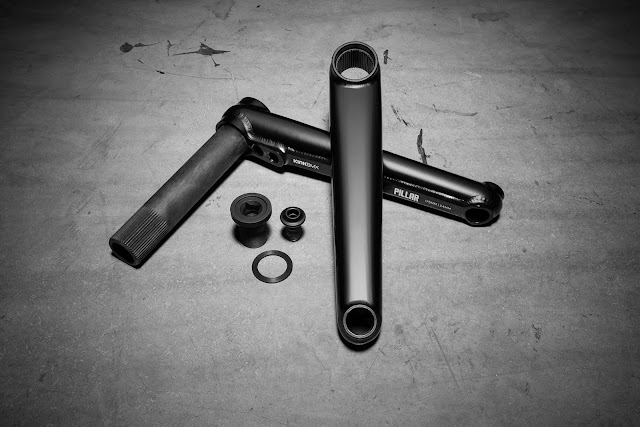

Kink BMX (USA) – As the name implies, the Pillar 24 cranks are Kink BMX's 24mm version of the proven Pillar cranks. In additional to a much improved strength to weight ratio, the 24mm (23.8mm) spindle means sprockets mount directly without the need of added adapters. The Pillar 24 cranks use the same exclusive single piece forged backplate found in the original Pillar cranks, that tie together the pedal and spindle bosses.

Acting as an extremely stiff backbone to each crank arm, this design eliminates several weak points found in traditional tubular cranks. The Pillar 24 cranks also feature a two piece hydraulically pressed spindle to arm design, and a heat-treated hollow chromoly spindle. Available now.

  • Colors - Black ED, Chrome
  • Length - 170mm and 175mm
  • Spindle Size - 24mm Hollow
  • Spindle Type - 48-Spline
  • Drive Side - RHD/LHD Compatible
  • Drive Type - Regular and Micro Drive Sprocket Bolt Bosses
  • Tubing - 100% 4130 Chromoly Steel
  • Heat Treatment - TruTherm Post Weld Heat Treated
  • Particulars - Unique One Piece Forged Backplate
  • Weight - 28.5oz (175mm)

For more information about this article from Kink BMX click here.

Source link
