New Omnium Cargo Frame – Internal/Gates

New Omnium Cargo Frame – Internal/Gates

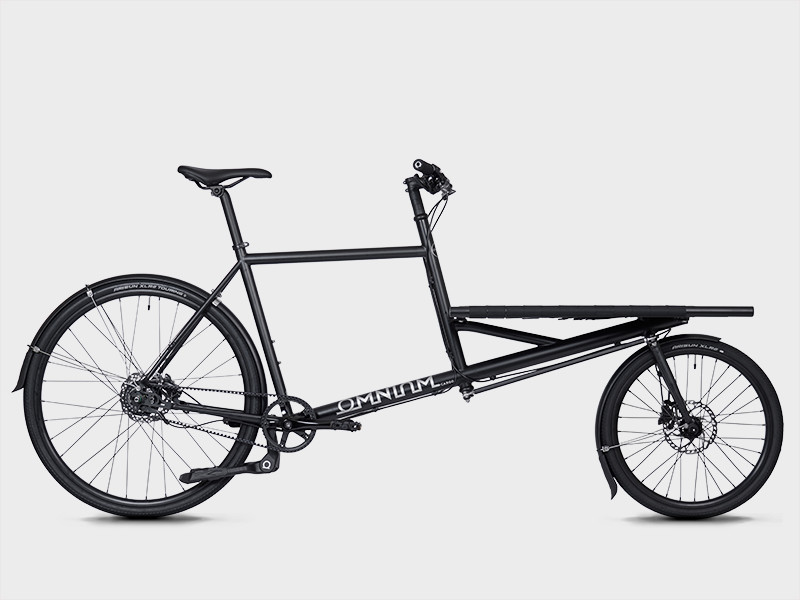

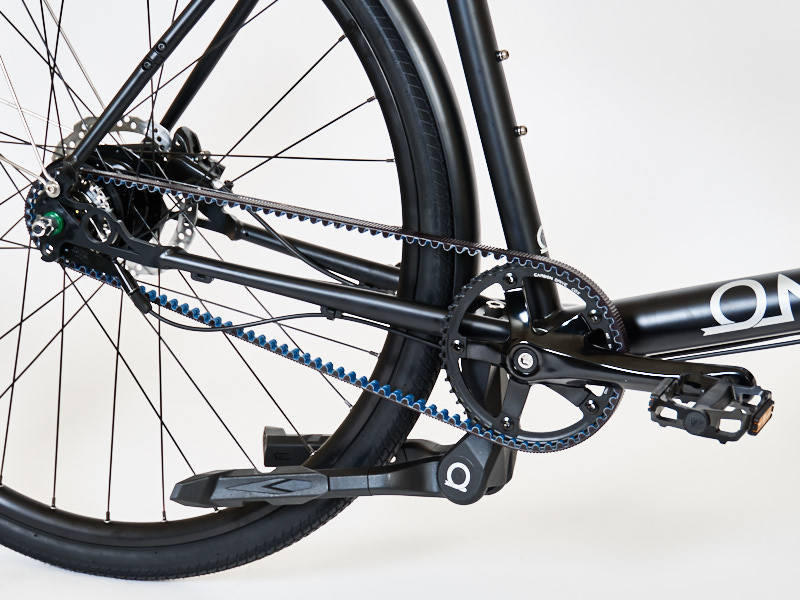

Omnium Cargo (Denmark) - Press Release: The Omnium Cargo Belt Drive is an internal geared variation of our standard Cargo bike with Gates Carbon Drive.

A brand new, complete bike, delivered worldwide. Bike comes nearly ready to ride with just a few basic assembly tasks required.

Frame Specifications:

  • Double-Butted Chromoly Steel Frame
  • 5 Sizes: S, M, L, XL
  • Frame + Fork + Steering Rod: 6870g +/-
  • Standard Rack Weight: 1320g +/-
  • Rack dimensions: 83cm x 50cm
  • Seat post diameter: 31.6 mm
  • Seat post clamp size: 34.0 mm
  • Rear Wheel: 700C, 135 mm spacing, disc only
  • Front Wheel: 451C, 100 mm spacing, disc only
  • Tyre clearance, front: 37mm with mudguards
  • Tyre clearance, rear: 37mm with mudguards
  • Fork headset: 1 1/8″ Threaded
  • Steerer headset: 1 1/8″ Aheadset
  • Bottom Bracket: BSA 68mm
  • Q-Factor/Stance: 145mm
  • Gears: Drop-outs for derailleur gear system
  • Recommended maximum loading weight including rider: 175 kg
  • Framekit includes:
  • Frame + Fork + Headsets (Front and rear) + Steering Rod + Steerer Tube + Seat Clamp
  • Does NOT include spacers for headset.


For more information about this article from Omnium Cargo click here.
