The Orbis comes in two flavours that differ in tire clearance. The Orbis R has a measured tire clearance of 28mm compared to the Orbis's 34mm measured tire clearance.

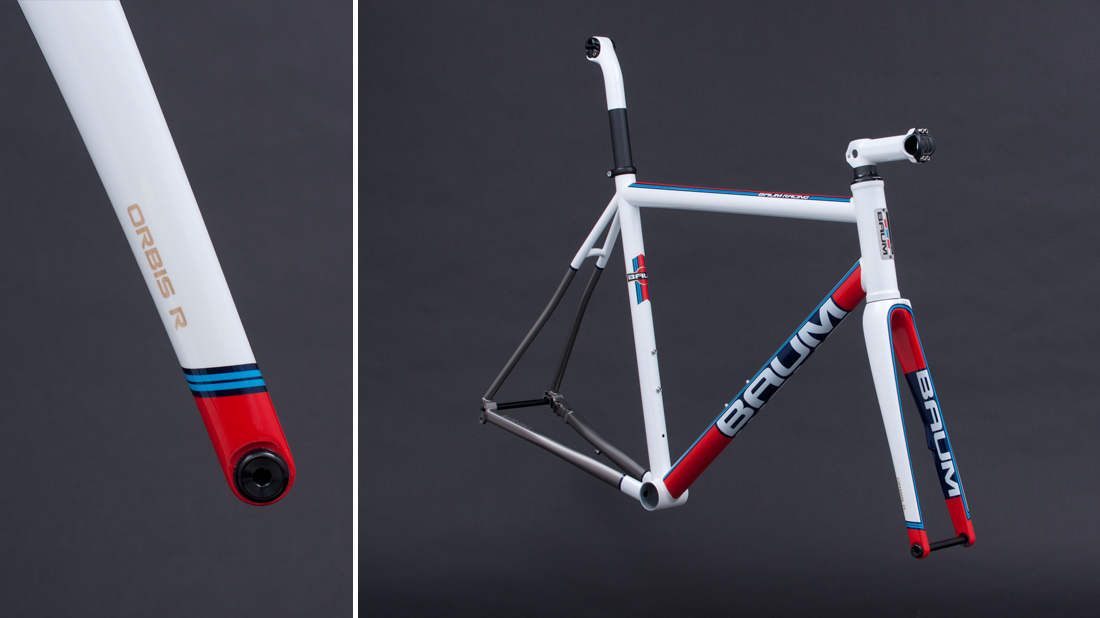

Orbis R:
"Employing every aspect of the tailored ride personality of a Corretto but with disc brakes. This is no gravel grinder. The Orbis-R is a modern disc brake bike exactingly built to the latest standards in disc road bike technology. The maximum measured tyre clearance of 28mm gives riders both increased road grip and a smoothing of the asphalt that makes you wonder how riding on 22c tyres was ever a thing. A 1.25” integrated headtube and Enve road disc fork compliments the direct mount brake mounts, formed chainstays and through axles", explained Baum Cycles.
Orbis - It’s the Orbis-R, with added generosity:
"A maximum measured tyre size of 34mm takes the plush ride that comes with a Orbis R to new levels of compliance. Increased bottom bracket drop ensures handling is not only everything you expect from a Baum but it is also tuned so that you can take advantage of the exceptional grip and cornering that the wider profile the tyres offer. Formed chainstays (for tyre clearance), a T47 bottom bracket and a tweaked stand-over height geometry (due to increased wheel radius) are just some of the features of the Orbis", they added.
Highlights:
Flat mount squircle chainstay undergoes an in-house compound bend, matching the drive side stay.
An internal rear brake line and all cables able to be internally routed. Coupled with a seamless head tube to fork transition.
Proprietary machined 6/4 titanium dropout, lowered for chainline clearance and designed to bend but never require replacement.
Standard Fuselage Package Includes:
- Personalised fitting
- Personalised geometry
- Individualised diameter tube selection
- All 8 tubes are butted in-house to rider requirements
- Internal hydro routing
- Standard paint schemes
- Individualized headtube length to the millimeter
- Semi-integrated Cane Creek 110 headset
- Enve RD disc through axle fork 100 x 12
- Proprietary 6/4 Ti thru axle dropouts
- Axle spacing 142x12
- T47 bottom bracket shell
- Enve carbon seatpost
- 3T ARX II Team Alloy headstem
- Cable routing:
- Mechanical
- Di2 or EPS
- eTap specific (no cable routing)
- Maximum chain ring 53/39T
- Maximum tyre size:
- Orbis-R - 28mm measured
- Orbis - 34mm measured
Interested? Submit your enquiry using the form below:
