Prototype (Portugal) - These are some EVO4 SP strengths, the new Straight Pull spoke systems have increased stiffness in 9% and further enhanced with the redesigned freehub system to incrase greater performance.

The special oversized sealed bearings increase smooth and long-lasting operation maintain lightness, rigidity and durability.

Main objective: improve your personal record!

Specs:

Hub EVO 4 SP  110 – Front:

• Model: EVO 4 SP 110
• Material: AL Serie 7000 – Light Force
• Number of holes: 28
• Colours: Black
• Axle system: 15 x 110mm (Fox or Rock Shox)
• Spoke type: Straight pull
• Max spoke tension: 1600N
• Bearings: PROTOTYPE PRO 2 – High precision
• (Ceramic bearings option available)
• Brake system: IS (6-bolt)
• Clamping: thru-axle
• Weight: 109gr

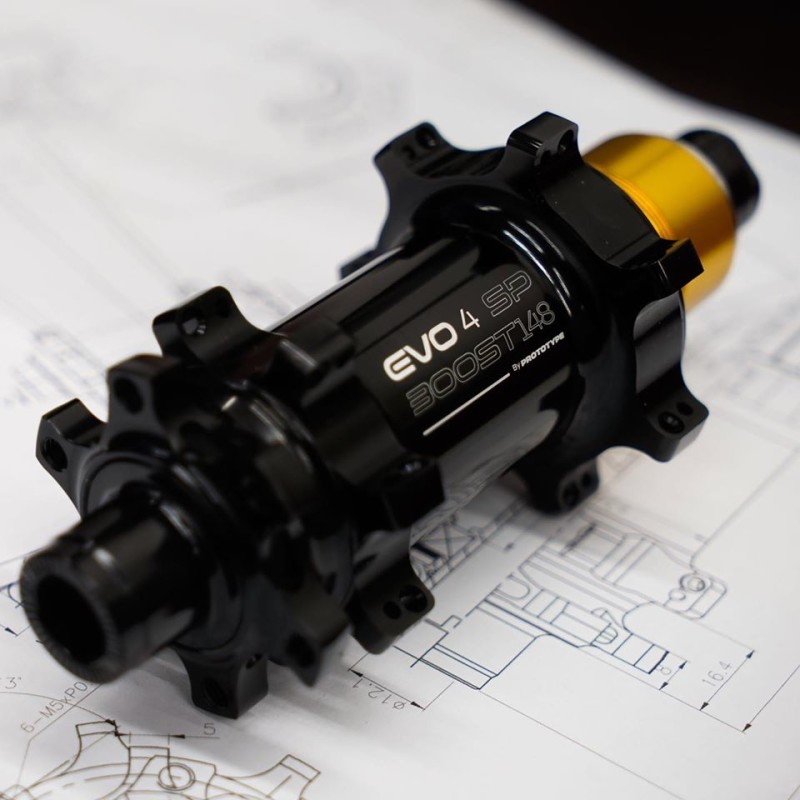

Hub EVO 4 SP  148 – Rear:

• Model: EVO 4 SP 148
• Material: AL Serie 7000 – Light Force
• Number of holes: 28
• Colours: Black
• Axle system: 12 x 148mm
• Spoke type: Straight pull
• Max spoke tension: 1600N
• Bearings: PROTOTYPE PRO 2 – High precision
• (Ceramic bearings option available)
• Freewheel System: Shimano 10-11S, Micro Spline or Sram XD
• Brake system: IS (6-bolt)
• Clamping: thru-axle
• Weight: 239gr (XD)
