New Special Edition BSD ALVX AF Frame Available for Pre-Order Now!

New Special Edition BSD ALVX AF Frame Available for Pre-Order Now!

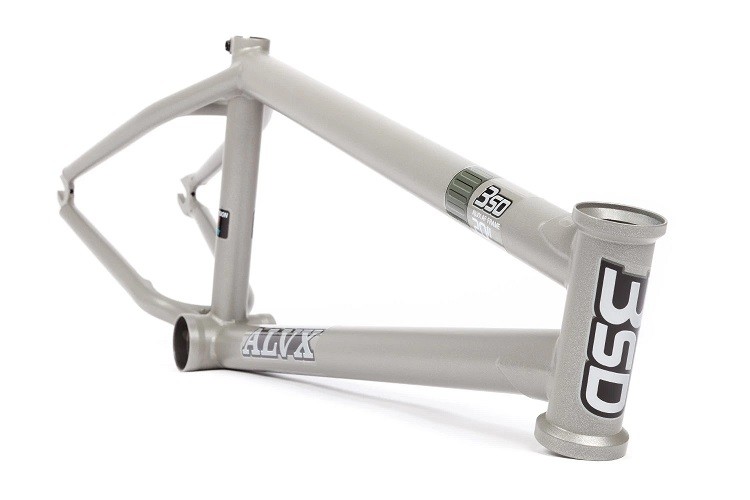

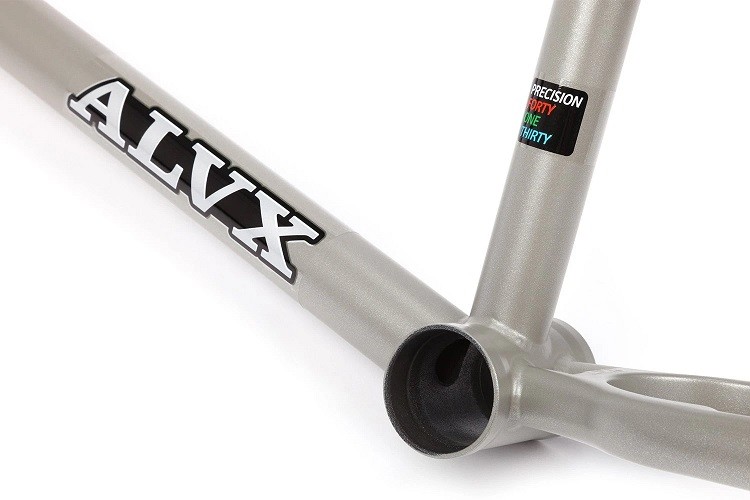

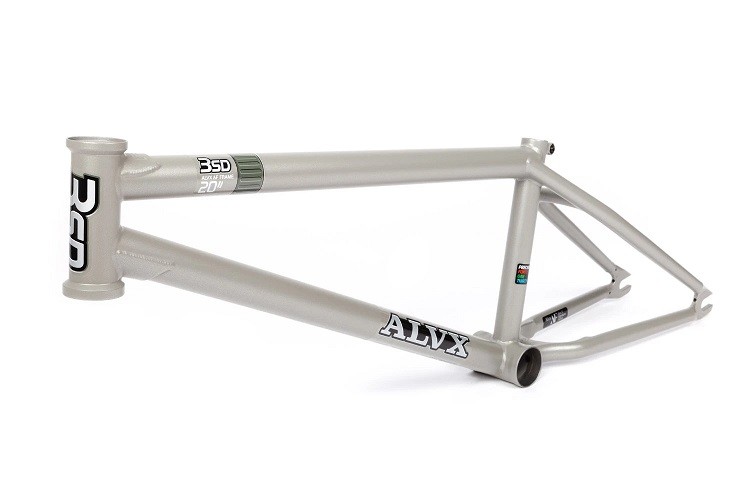

BSD (United Kingdom) - Press Release: Alex Donnachies' Sony VX inspired signature frame with special edition graphics and VX grey colourway. There will be one production run only of these frames, tapes and batteries are not included...

Tech specs:

  • Toptube lengths: 20.3" / 20.6" / 20.8" / 21"
  • Headtube angle: 75.5°
  • Headtube length: 117mm
  • Seattube angle: 71°
  • Rear end length: 12.5-13"
  • BB Height: 11.7"
  • Standover height: 8.7"
  • Weight: 5lbs
  • Brake mounts: none - brakeless
  • Tubing: Sanko Japanese seamless 4130 chromoly
  • Colours: VX Grey

Design Features:

Invest Cast Yoke:

At 12.5" the ALVX chainstay length is as short as it can be. By using invest casting we were able to create a new chainstay yoke which creates more clearance for the tire for when your wheel is slammed. Also because this part is cast and heat treated it strengthens the rear end of the frame by stiffening it up.

External Gussets:

On a frame the highest concentration of stress is at the junctions between the headtube/toptube and headtube/downtube. To handle the pressures of modern riding, the required strength is achieved using a combination of butted tubing and external gussets.

Invest Cast Dropouts:

The dropout is cast as one piece, much stronger than a plate welded to a tube. 7mm thick to provide good support for your axle, and the small shape has been designed for grinding meaning there's no overhang to catch on ledges or rails, also the dropout is heat treated before welding making it extra tough. And finally there are integrated chain tensioner bolts inside.
