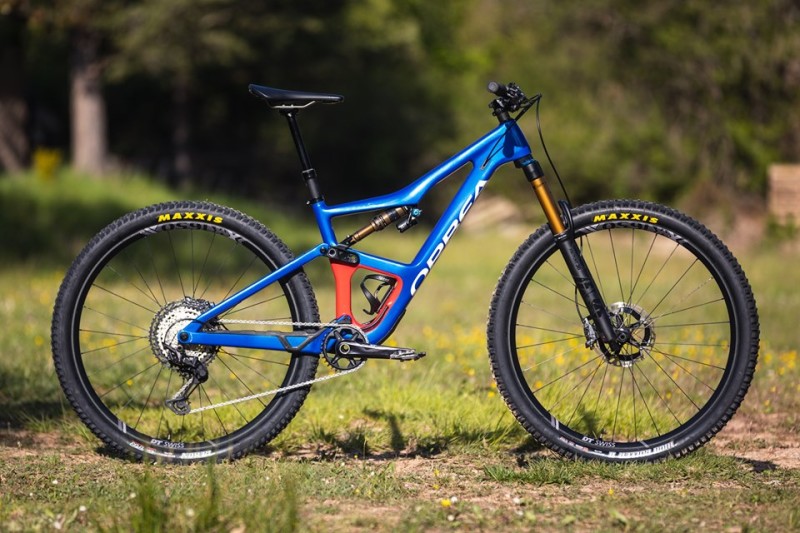

Orbea (Spain) - Do your friends ask if you intend to ride the chairlift when you invite them out for a ‘few’ park laps? Do your top routes frequently involve pushing up and down trails that aren’t on any map? Do your favorite rides begin or end with headlamps, an ice chest and great friends? Does your bike have to do everything well to get you there and back again? If you think you might be this rider, then Occam should be your bike.
Suspension:
- 140mm travel with 140/150mm fork options
- Modern trail bikes are used for an impressive variety of rides
- Some riders use them to climb thousands of meters on huge rides, others weave in and out of bike parks and jumps during their daily adventures
- Occam is available with either a 140mm Fox 34 or 150mm Fox 36 so you can ride the way you like
Trail geometry:
- Lower Bottom Bracket - Corners Naturally
- Longer Cockpit - Room to Move While Maintaining Balance
- Longer Wheelbase - Stability at High Speeds
- Steep Seat Angle - Proper Pedaling Position
- Short Seat Tube - For Long Dropper Posts
Carbon OMR:
- Orbea Monocoque Race (OMR) frames blend high modulus fibers and high strength fibers exclusively
- Prepreg carbon sheets are laser cut to minimize excess materials and overlap, and hours of pre-moulding ensure optimal compaction with the smallest amount of carbon
- A full EPS (Expanded Polystyrene) mold helps eliminate wrinkles and voids
Asymmetry - Strength:
- The right side support strengthens and stiffens a high-stress area
- Instead of using a less-efficient “shock tunnel” the Occam design offsets the shock to the left side of the frame, allowing the asymmetrical support to follow a more direct path
- This straight line that closely follows the shock mounting is the most efficient way to neutralize suspension forces on the front triangle
Asymmetry - Ergonomics & Balance:
- The asymmetric/offset design offers unique advantages beyond stiffness and low weight.
- The shock is mounted in a position that offers incredibly easy access to damper controls and the tidy design leaves room for bottle with easy left-side access.

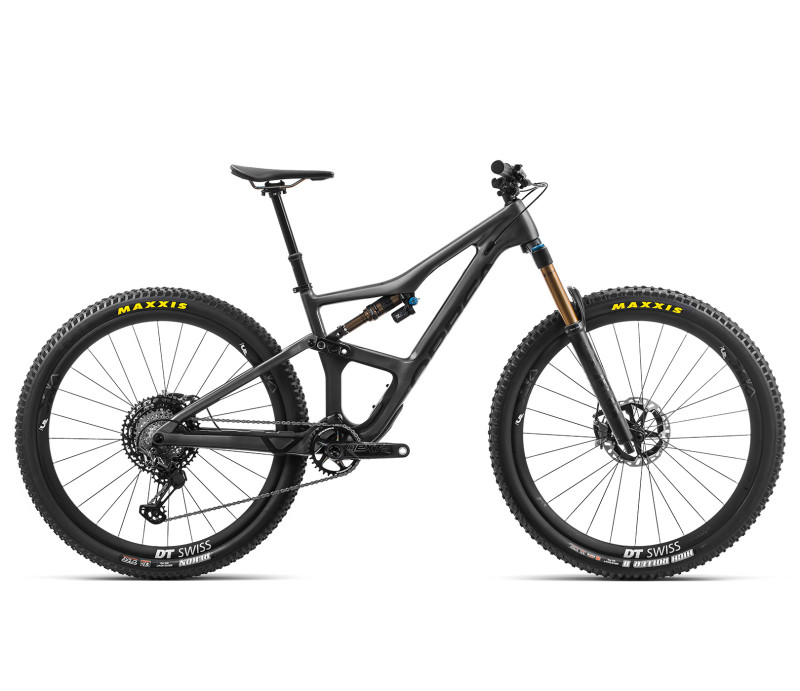

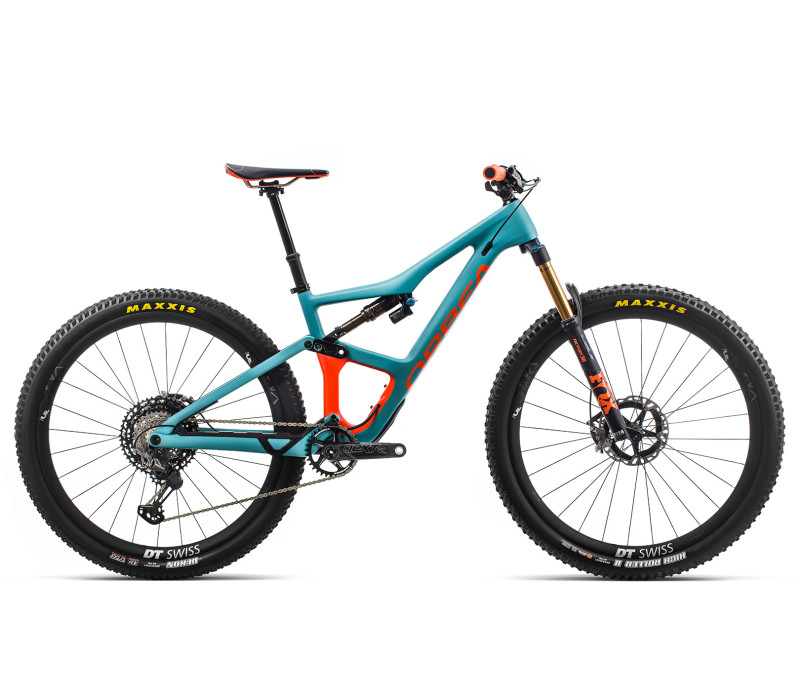

Occam M-Ltd Specifications:
- Frame Orbea Occam OMR 2020 140mm travel 29" C-Boost 12x148
- Shock Fox DPX2 Factory 3-Position Adjust Evol Kashima custom tune 210x50mm
- Fork Fox 36 Float Factory 150 Grip2 RC2 QR15x110 Kashima
- Crankset Race Face Next-R 32t
- Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
- Handlebar Race Face Next R 35 20mm Rise 780mm
- Stem Race Face Turbine 35mm interface
- Shifters Shimano XTR M9100
- Brakes Shimano XTR M9120 Hydraulic Disc
- Cassette Shimano XTR M9100 10-51t 12-Speed
- Rear derailleur Shimano XTR M9100 SGS Shadow Plus
- Chain Shimano CN-9100
- Wheels DT Swiss XMC-1200 Spline 30c TLR 15/110mm CL
- Tyres Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR
- Pedals N/A
- Seatpost Crank brothers Highline
- Saddle Fizik Taiga Kium rail
- Rear Hub Orbea 12x187x1.5mm
