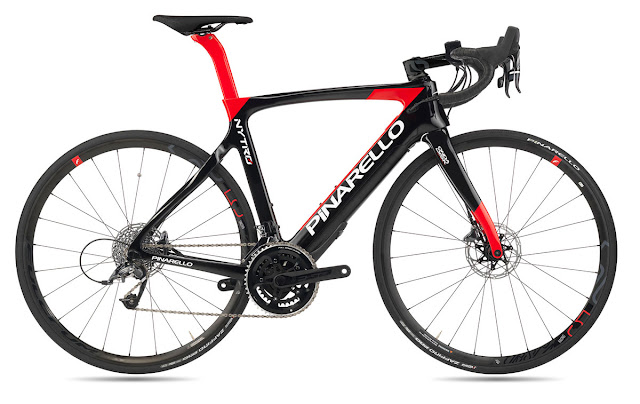

A real Pinarello:
The frame is inspired by the Dogma F10 geometry, to maintain Pinarello typical ride feeling.
As light as possible:
The combination of a high end carbon fiber frame, the lightest electric system on the market and high quality components results in a bike weight of only 13 Kg.
A perfect balance:
The New Nytro pushes further our «Think asymmetric philosophy», with a seat tube right half section considerably wider than the left section and the top tube right side wider as the left side.
A best in class air drag:
The Flat Back profile has been adapted to incorporate the Drive Pack and the bottom bracket and chain stays were set to maximize the integration between components and the airflow guidance.
The power of disc brakes:
Nytro is a highly performant bike downhill also thanks to its 160mm flat mount discs for a secure braking in all conditions and 12mm thru-axles for stability and higher torsional rigidity.
Power on demand:
The new Nytro offers four modes, to help you go for a ride wherever you want, with an electric assistance until 25km/h.
A technological heart:

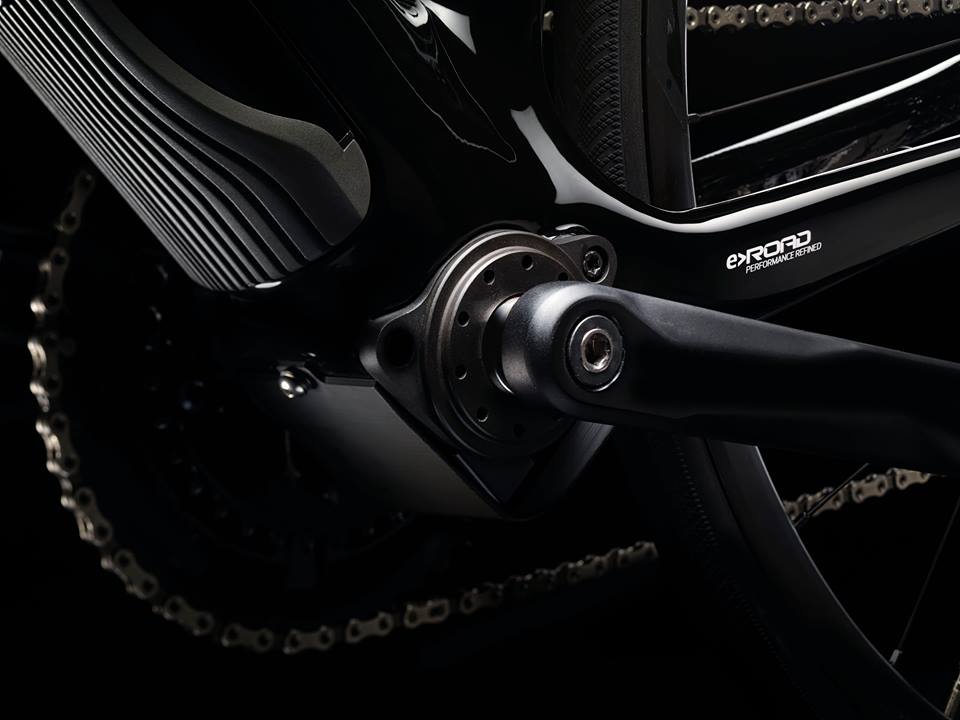

As a new standard on the e-road bikes market, Nytro uses the most advanced drive system in the market: Evation from Fazua.
The lightest:
The whole drive system just weighs 4,7kg including the battery.
The most compact:
The cutting edge design of the system allows a perfect integration with the Nytro the frame.
The quickest:

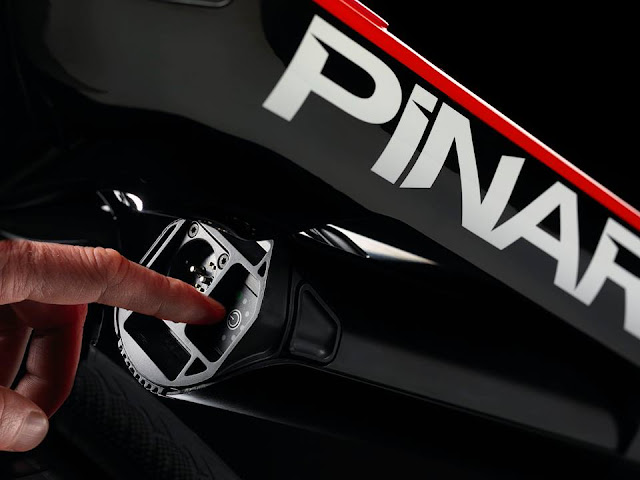

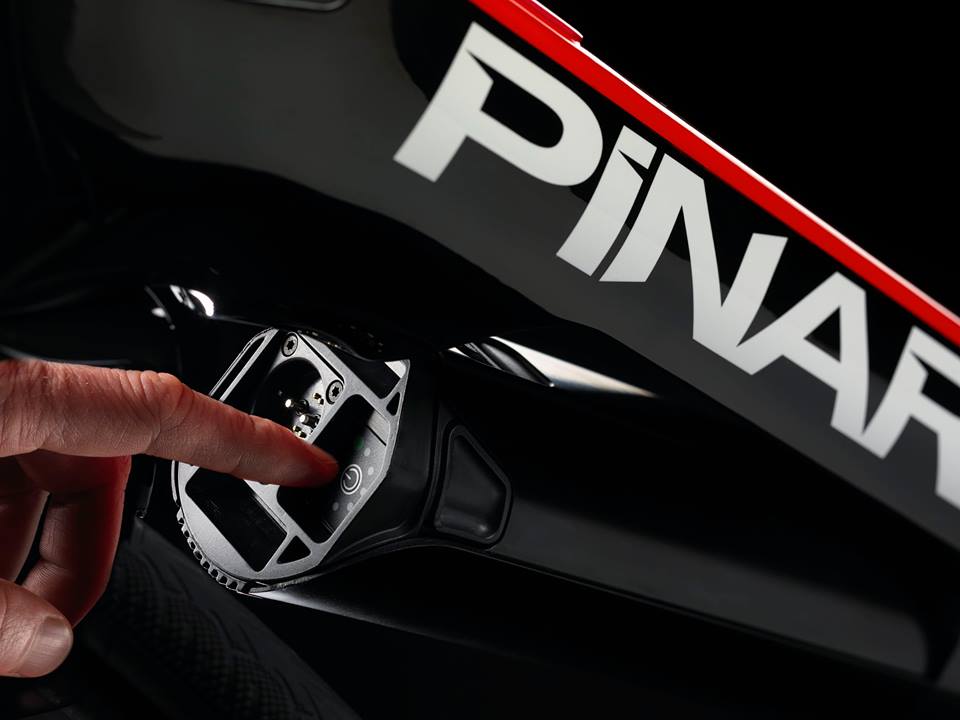

The battery can be easily installed and removed when a charge is needed, thanks to a quick release.
Frame:
- T700 Carbon Fiber
- Asymmetric frame
- Drop In bearing system with tapered headset
- Internal cable routing
- Italian thread BB
- Flatback profiles
- Frontal seat clamp, integrated and aerodynamic
- Max Tyre 700 x 28
Drive system:
- Fazua Evation System
- Max nominal Power: 250W
- Max Power: 400W
- Max Torque: 60Nm
- Battery energy: 252 Wh
- Weight: 4,7 Kg
- Max Speed with assistance: 25 Km/h
Brakes:
- RAD System Disk Brake
- Front Thru-Axle 100 x 12 Shimano
- Rear Thru-Axle 142 x 12 Shimano
- Disk Flat Mount max 160mm
Video:
