Canyon (Germany) - The Spectral AL 5.0 EX is a beautifully designed top class all mountain trail bike. The aluminum frame harmonizes perfectly with the carefully chosen components. The Fox Rhythm 34 FLOAT suspension fork and the Fox Performance Float DPS LV EVOL shock absorbers provide a suspension that lets you glide through every trail. The durable 30 mm wide wheels from DT Swiss make the perfect connection between trail and bike. When it gets steeper, the continuously variable Iridium Dropper Post guarantees 150mm of clearance. So you can easily get behind the saddle and shift your weight as needed. If you don’t have tons of cash to commit to an all-mountain fully, but still demand top quality, then the Canyon Spectral AL 5.0 EX can get you over the trails you want to tackle.

Fox Rythm 34 FLOAT:


Trail suspension fork with air-sprung 150 mm travel and 15 mm through axle. Together with the tapered steerer that makes it an extremely stiff package at all points of rotation, and keeps you in control over every type of terrain.

Fox Performance Float DPS LV EVOL:


The Fox Performance Float DPS LV EVOL damper has three speed settings to allow for an optimum reaction to the trail bumps. The EVOL air chamber improves the response on the highly technical trails.

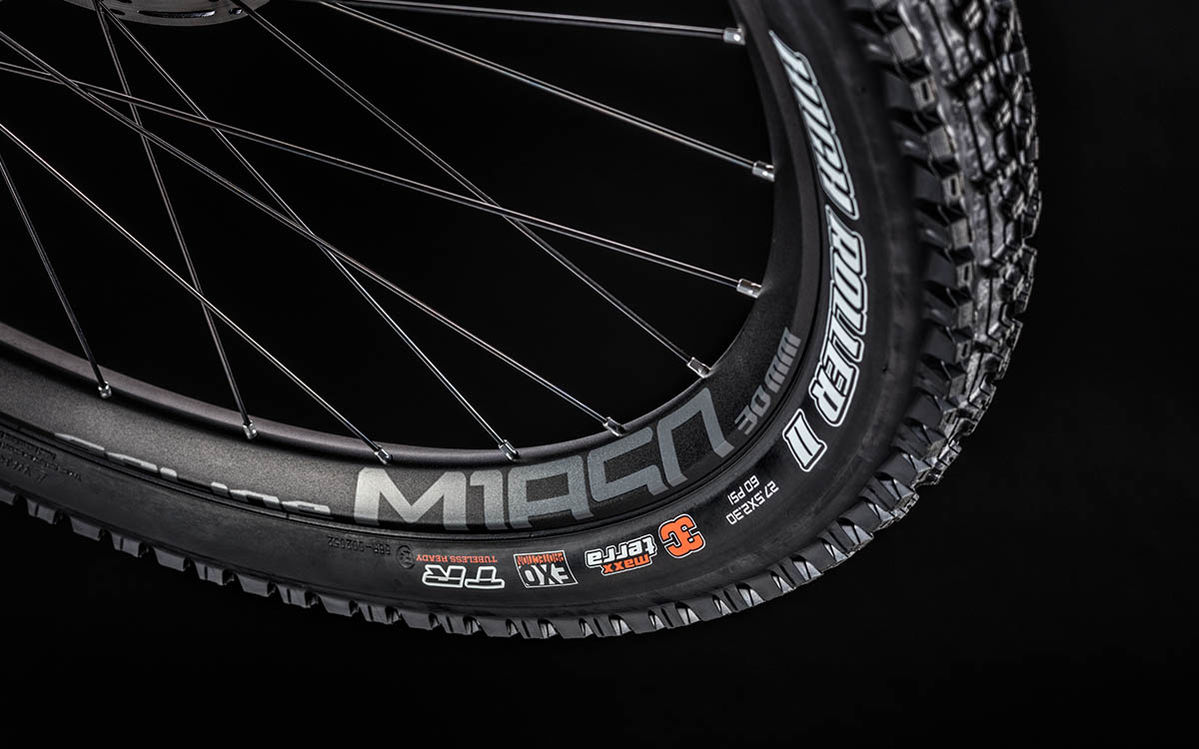

DT Swiss M 1850 Spline:


Lightweight wheels designed exclusively for Canyon. The 30 mm wide, rugged rim combines the SPLINE® technology pawl system hubs. The straight pull spokes eliminate weak points of conventional j-bend spokes, and are extremely durable.

Race Face Aeffect DM:


The forged crank from 6066 aluminum with a direct-mount chainring and 24 mm axle. Weighing 730 g, it is the perfect crank for the toughest trails every day. Reliable, robust and low-maintenance.

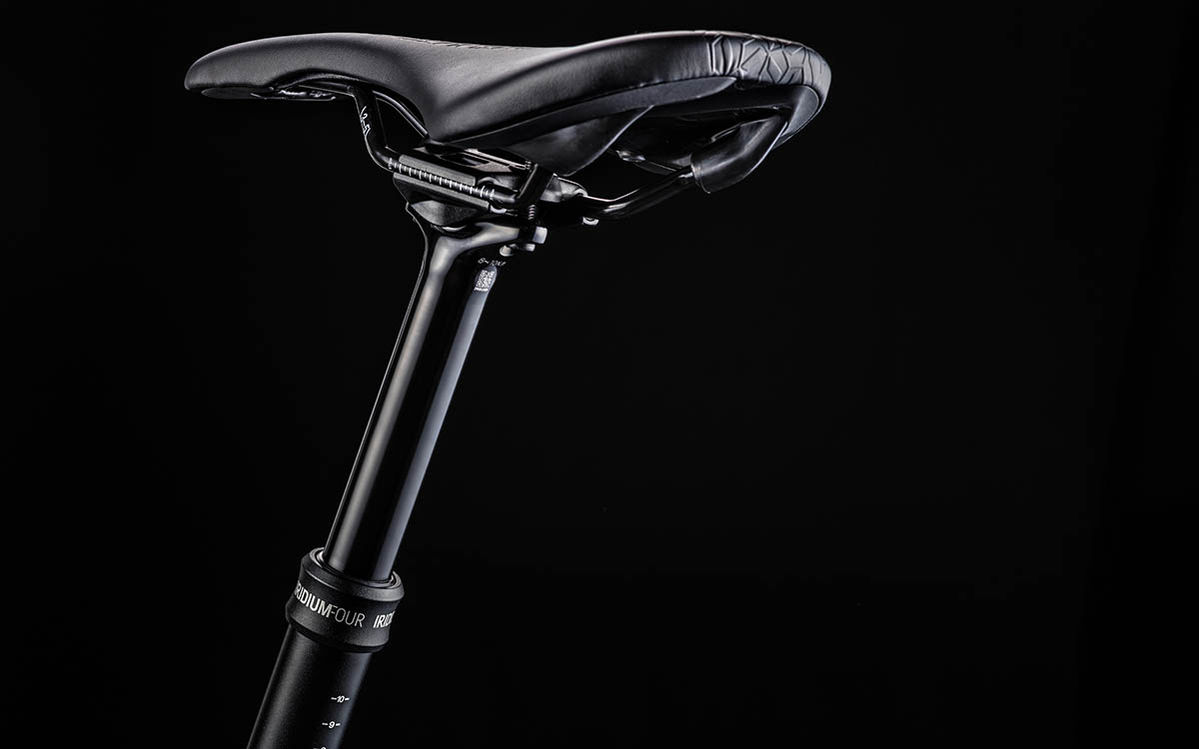

Iridium Dropper-Post Stealth:


Seamless, adjustable dropper seatpost with 150 mm travel. The internal cable provides a clean look and prevents rubbing and scratching on the frame. For frame size XS we use a seat post with 120 mm travel.



Components:

• Frame: Canyon Spectral AL
• Rear Shock: Fox Performance Float DPS LV EVOL
• Fork: Fox Rythm 34 FLOAT
• Headset: Acros | Canyon
• Rear Derailleur: SRAM GX, 11s
• Derailleur Hanger: Derailleur Hanger No. 26
• Shifters: SRAM GX, 11s
• Brakes: SRAM Guide R
• Cassette: SRAM XG-1150, 11s
• Wheelset: DT Swiss M 1850 Spline
• Tyres: Maxxis High Roller II 2.3 | Maxxis Minion Semi Slick 2.3
• Cranks: Race Face Aeffect DM, 11s
• Chainrings: 30
• Chain: SRAM PC-1110
• Bottom Bracket: Race Face
• Stem: Race Face Aeffect
• Handlebar: Race Face Aeffect
• Grips: Canyon Bracelets
• Saddle: Iridium \ 3 - 5 \
• Seat post: Iridium Dropper-Post Stealth
• Saddle clamp: Canyon Race Clamp
• Pedals: none included
• Frame sizes: XS, S, M, L, XL
• Colour: vertical green copper | silver brushed - grey
• Weight: 13,2 kg (Size M)
