Superior (Czechia) - The trail version of the new full carbon frame designed for World Cup racing tracks. This model features progressive geometry with an extremely short chainstay, 130mm rear and 140mm front travel, and a dropper post. The smart details to define the trail design include integrated down tube and chainstay protectors, a Block Lock system to protect the frame against damage by handlebars, dropper post travel of 125/150 mm (size-related), and optional two bottle cages. The machine‘s 2,35“ Schwalbe tires and wider rims ensure perfect rollover and safe downhills, and the DT Swiss M 1900 Tubeless carbon wheelset reduces punctures to a minimum.
- New kinematics, 130 mm travel, and responsive Rock Shox suspension
- Integrated down tube and chainstay protectors
- Block Lock headset: frame protected against damage by handlebars
- Dropper post for better control in rough terrain
- Two bottle cages option
- Schwalbe Nobby Nic 2,35" tubeless ready tires: a superior grip and few flats
- DT Swiss M1900 SPLINE wheelset with a 30 mm rim for a better tire fit and traction
Specs:
Frameset:
- Frame: Carbon MTB Trail SU-01, Advanced Trail Geometry, Travel 130 mm, Tapered Head Tube, BB92, 3D alloy one piece link, Carbon swingarm, SR dropout, Boost 12x148 mm, Inner Cable Routing, dropper seat post ready
- Head Set: Acros AZX-220 R4, ZS44/28.6 | ZS56/40, BlockLock 150°

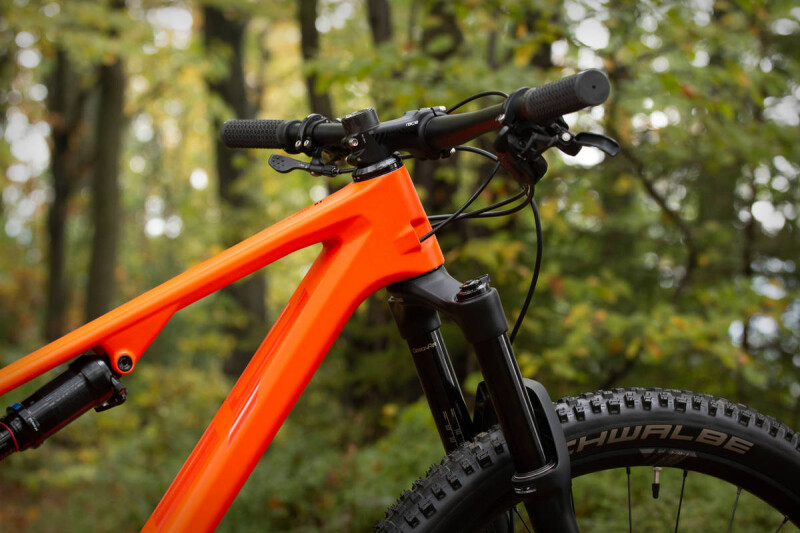

- Fork: RockShox Revelation RC, Tapered, DebonAir, 15x110mm axle, 140mm travel
- Colour: Matte Orange/Red/Black
- Sizes: 15.5" (S), 17.5" (M), 19.0" (L), 21.0" (XL)
Drivetrain:
- Gears: 1x12
- Shifter: Shimano SLX SL-M7100-IR RapidFire Plus, 12-speed

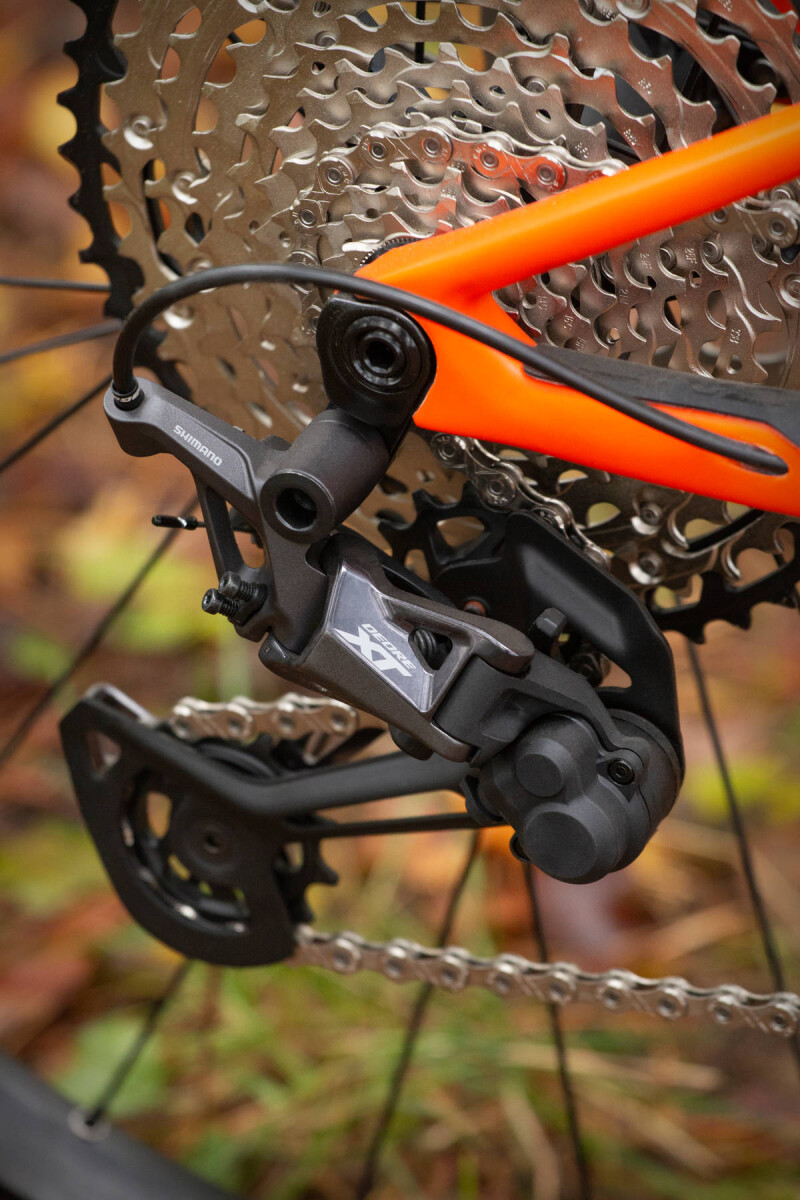

- Rear Derailleur: Shimano XT RD-M8100 Shadow Plus

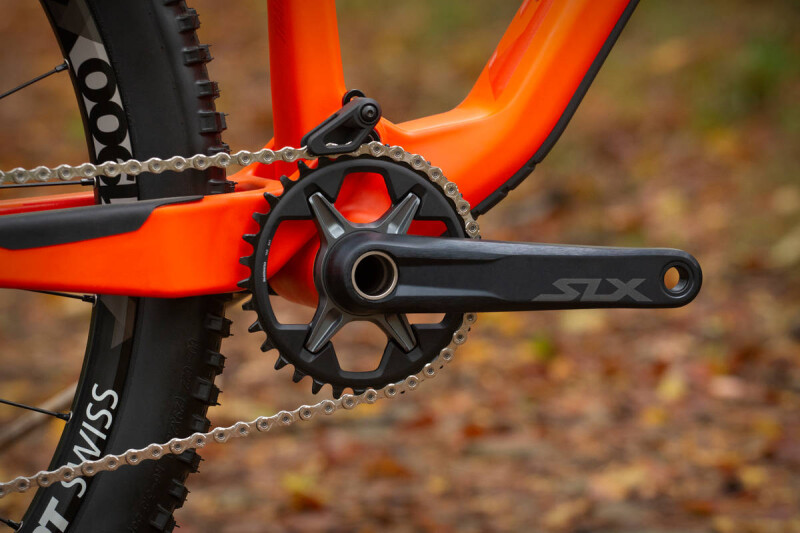

- Crankset: Shimano SLX FC-M7120 Hollowtech II, 34T
- Cassete: Shimano CS-M7100-12, 10-51T
- Bottom Bracket: BB-MT500PA PressFit, shell 41x92mm
- Chain: Shimano CN-M6100
Components:
- Handlebar: ONE1 Alloy, MTB AL-312BT, 6° backsweep, 12mm rise, 760mm, 31.8mm
- Stem: ONE1 Race RAS-D63028 Alloy, 31.8mm, -10°
- Grips: ONE1 VLG-1661D2N, Lock-On
- Brakes: Shimano BL-M6100/BR-M6100, hydraulic disc brake
- Saddle: fizik Taiga
- Seat Post: ONE1 Alloy, MT171, dropper post, 30.9mm
Wheels:
- Tires: Schwalbe Nobby Nic Performance, 29x2.35", ADDIX
- Wheelset: DT Swiss M 1900 Spline DB30; 12x148mm, Shimano MICRO SPLINE 12 speed, Center Lock, Tubeless, DT Swiss M 1900 Spline DB30; 15x110mm, Center Lock, Tubeless
Weight:
- Weight*: 13,1 kg
