The All-New Cascade Peak from Fezzari Bicycles

The All-New Cascade Peak from Fezzari Bicycles

Fezzari Bicycles (United States) - Press Release: The all-new Cascade Peak with our AT529 frame is the best we have ever built! Better pedaling saves rider energy, better descending to instill confidence, and a more active, lively suspension design makes sure you return to the trail head with a smile on your face.

Now Includes X-Fusion Manic Dropper Seatpost.

The heart and soul of the Cascade Peak is the new Tetra-Link suspension design combined with our GA-Link Geometry.

  • Climb-conquering pedaling efficiency – the suspension kinematics have been refined to increase pedaling efficiency and get you to the top of the climb faster and with more energy in your legs.
  • A plush/bottomless feel – Fezzari designed a very progressive suspension to give an incredibly plush ride. This leads to great small bump sensitivity while preserving mid-stroke support.
  • Active braking – the design ensures the suspension stays active under braking, even through technical sections.

Fezzari’s GA-Link Geometry allows you to adjust the geometry for both 27.5 plus and 29er wheels while maintaining a consistent bottom bracket height between the two platforms, creating more control, fun and confidence for you, the rider.

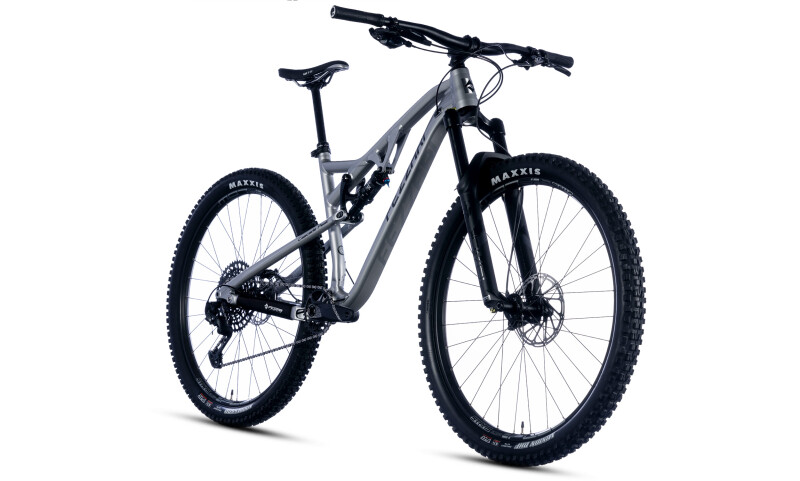

The Cascade Peak is our premiere alloy full suspension All-Mountain Trail machine. On the 27.5+ platform, the Cascade Peak's AT529 frame has all of the key features and more that you'd expect of a bike of this caliber; 12mm rear axle and tapered headtube for stiffness, 148mm boost spacing, sealed bearings on the pivots, and smooth welding. With 5.1" (130mm) of rock-chewing suspension travel, 27.5+ wheels, and an efficient pedaling platform, you'll climb parts of trails and descend through sections you didn't think were possible. Sram Level T hydraulic disc brakes will keep your speed in check.

Combine these features with our 23-point custom setup and you have a quality bike that is specifically built with your riding style in mind. You can't beat the value and ride quality the Cascade Peak offers.

Tech Specs:

Frameset:

  • Frame: Fezzari Racing Design AT529, 130mm travel, full sealed cartridge bearings, replaceable derailleur hanger, tapered headtube, water bottle bosses
  • Fork: DVO Diamond D1, 140mm travel, 1.5 inch tapered steer tube, 110mmx15mm boost thru axle, black
  • Rear Shock: 2018 Fox Float DPS, Performance Series, 3 Position Lever with Evol SV aircan, matte black
  • Sizes: S, M, L, XL
  • Headset: FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered

Drivetrain:

  • Shifters: SRAM GX Eagle Trigger 12-speed
  • Front Derailleur: N/A
  • Rear Derailleur: SRAM GX Eagle 1x12, X-HORIZON, 12-speed, Type-3 roller bearing clutch, long cage
  • Cassette: SRAM XG-1275 GX Eagle, 10-52t, 12-speed
  • Crank: Truvativ Descendant DUB 6K Aluminum Eagle Crankset
  • Chainrings: SRAM X-SYNC 2 Eagle, 32t
  • Bottom Bracket: SRAM DUB, English Thread
  • Chain: SRAM GX Eagle 12-speed

Cockpit:

  • Handlebars: Fezzari FRD Charger35, alloy, 35mm clamp, 760mm wide, 15mm riser, 9 degree bend
  • Stem: Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit
  • Tape/Grips: Fezzari lock-on grips
  • Saddle: WTB Volt Comp
  • Seatpost: X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout)
  • Pedals: Available Separately

Wheels:

  • Rims: Stans Flow 29er S1, Tubeless Ready, 32 hole or WTB i35 27.5+
  • Hubs: Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm, XD Driver
  • Spokes: 1.8mm (15g) black stainless, brass nipples
  • Tires: Maxxis Minion DHF 29x2.5WT Exo/Tubeless Ready 60 TPI, Rear: Maxxis Aggressor 29x2.5 Exo/Tubeless Ready 60TPI
  • Tubes: Maxxis 29x2.5, (Tubeless setup available at Checkout)

Brakes:

  • Brakes: SRAM G2 R Hydraulic Disc, SRAM Centerline Rotors, 180mm/160mm F/R
  • Brake Levers: SRAM G2 R

Extras:

  • Extras: Fezzari Neoprene chainstay protector

For more information about this article from Fezzari Bicycles click here.
