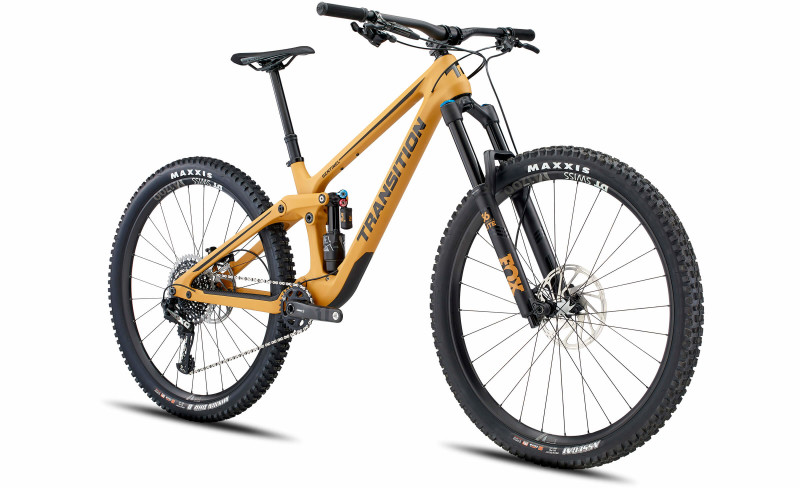

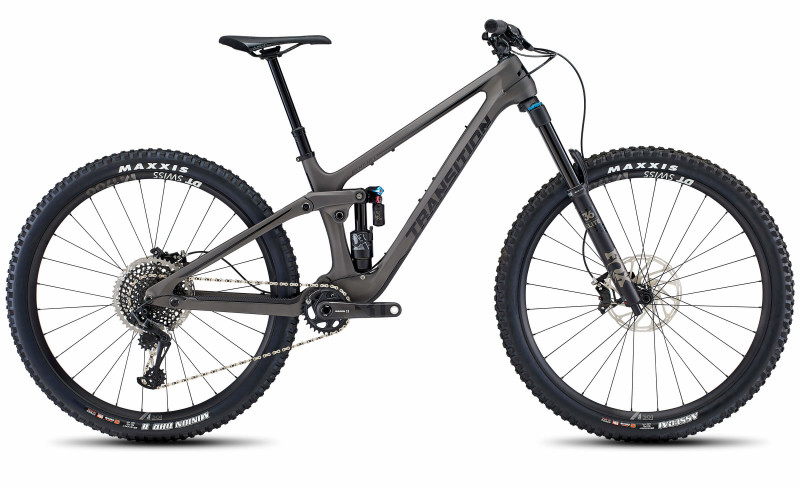

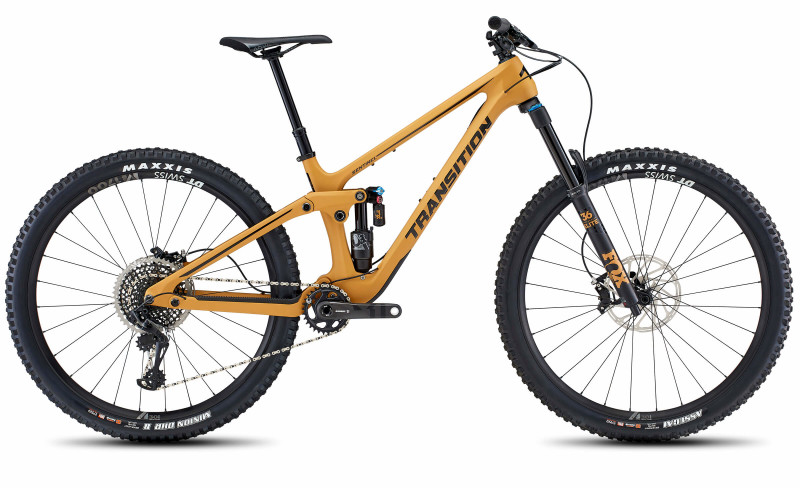

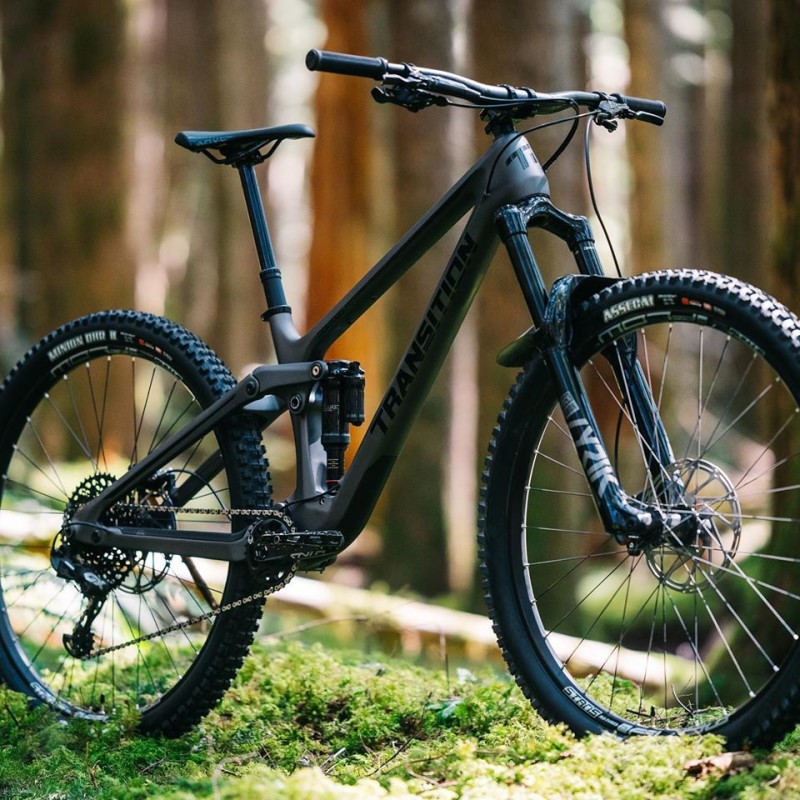

The Bike You All Have Been Asking For, the New Transition Sentinel

The Bike You All Have Been Asking For, the New Transition Sentinel

Transition Bikes (United States) - Press Release: The Hard Charging All-Rounder.

The Sentinel inspires confidence like you’re wearing full body armor.

It’s forgiving do-it-all attitude truly blurs the lines between planted bottomless sender and playful poppy trail pony. Whether you’re chasing EWS dreams or just a weekend afternoon escape, it will bring out the best in you. So easy to get acquainted with you’ll find yourself sending lines, jumps and maneuvers you always felt were beyond your ability. Where before you went around, now you go over. Where you pushed up, now you pedal. Where you rolled, now you boost.

Speed Balanced Geometry:

SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.

Giddyup Suspension Design:

We wanted to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively whether you're setup correctly or not. Because, we get it, sometimes life gets in the way, and you've got to grab your bike and GiddyUp without checking your setup. When you do, it will still feel good.

We did this by balancing a 24% progressive leverage curve with a consistent linear rate of change. Anti-squat is tuned to enhance pedaling performance and acceleration. Overall chain growth is moderate and reduces after sag so chain tension doesn't get in the way of the suspension working.

This translates to killer small bump compliance and great mid-stroke support that gradually transitions into an end of stroke ramp that is subtle, yet supportive. The amount of consistent progression is carefully optimized for both air and coil shocks. Riders are able to add or remove volume spacers in air shocks to suite their individual riding style and there is no compromise to bottom out support with coil shocks. The Sentinel has 150mm of rear wheel travel when used with the supplied 205mm x 62.5mm stroke shock. It is also possible to install a shorter, 205mm x 57.5mm stroke shock, to decrease the rear wheel travel to 140mm.

A wide usable sag range of 25 - 35% allows the rider to tune the feel of the bike; from poppy and playful, to planted for plowing. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.

Frame Specifications:

  • Rear Travel: 150mm (Compatible with 140mm)
  • Front Travel: 160mm
  • Wheel Size: 29"
  • Sizes: SM, MD, LG, XL, XXL
  • Colors: Loam Gold, Ti Grey
  • Frame Bearings: 2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900
  • Fork Axle To Crown: 574mm (Includes headset)
  • Fork Offset: 42-44mm
  • Rear Shock Size: 205mm x 62.5mm (Compatible with 205mm x 57.5mm)
  • Shock Hardware: Trunion Mount Top / 25mm x 8mm Bottom
  • Headset (Top): 44mm Zero Stack
  • Headset (Bottom): 56mm Zero Stack
  • BB Shell: 73mm BSA Threaded
  • Rear Brake Mount: 180mm Post Mount, Max Rotor Size 203mm
  • Rear Axle: Syntace X12 148, 1.0mm Thread Pitch
  • ISCG Tabs: ISCG05
  • Seatpost Diameter: 31.6mm
  • Seat Clamp: 37mm
  • Max Seatpost Insertion: Small 220mm | Medium 250mm | Large 290mm | XL 320mm | XXL 350mm
  • Max Chainring Size: 32T Standard Single Ring
  • Max Tire Size: 29 x 2.6
  • Rear Shock Sag: 150mm/62.5mm: 16-20mm (26-32%), 140mm/57.5mm: 15-19mm (26-33%)

For more information about this article from Transition Bikes click here.

Source link
