The Diamond of the Kellys e-Series - The All-New 2020 Kellys Theos

The Diamond of the Kellys e-Series - The All-New 2020 Kellys Theos

Kellys Bicycles (Slovakia) - Hard-enduro e-bike that provides the ultimate range and performance thanks to massive energy hidden in the frame powered by a top version of Re-Charge Li-ion battery with 630 Wh/17Ah and powerful Shimano STEPS E8000.

The all-new THEOS is now also available in two different models i70 and i50!

Hit the link below to learn more about our 2020 THEOS series available in new prices!

THEOS i90:

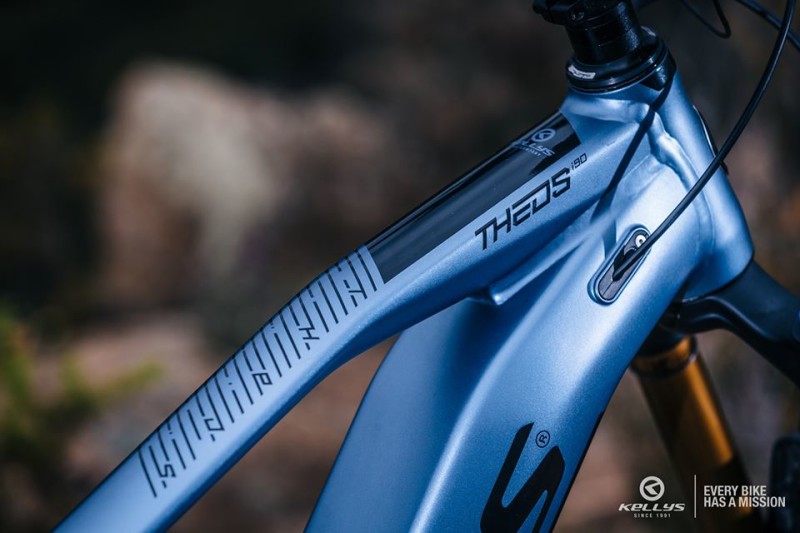

  • Frame: KELLYS e-Frame Allmountain 27.5, Uni-Body Integrated Design / Four-bar link, 150mm rear travel, tapered HT, internal routing, 12x148mm Boost thru axle
  • Frame size: M / L

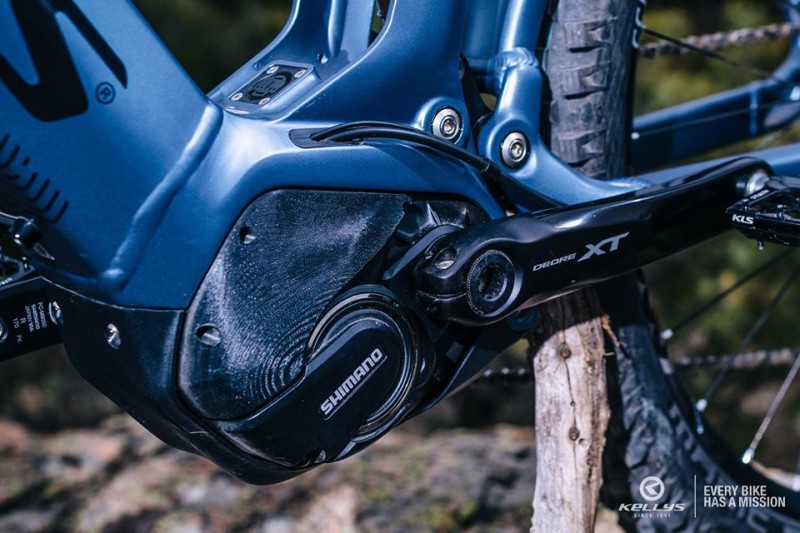

  • Motor: SHIMANO STEPS E8000, 36V
  • Switch unit: SHIMANO SW-E7000
  • Computer display: SHIMANO SC-E8000
  • Battery: KELLYS Re-Charge Li-ion internal 630Wh / capacity 17.5Ah
  • Fork: FOX 36 Float Factory, Kashima Coat (27.5) Boost, 160mm, Float Evol / FIT4 3-Position Remote / Open Mode Adjust / 15QR thru axle
  • Rear shock: FOX Float DPX2 Factory, 3-Position / Trunnion mount (205x65mm)
  • Head parts: FSA 1.5 integrated
  • Crankset: SHIMANO FC-E8050 Hollowtech II (38T) - length 170mm
  • Shifters: SHIMANO Deore XT Di2 SW-M8050 Firebolt
  • R/derailleur: SHIMANO Deore XT Di2 M8050 (direct mount)
  • Speed: 11
  • Cassette sprocket: SHIMANO CS-M7000-11 (11-46T)
  • Chain: KMC e11T (116 links)
  • Brakes: SHIMANO Deore XT M8020 Hydraulic Disc
  • Brake rotors: 203mm front / 203mm rear
  • Brake levers: SHIMANO Deore XT BL-M8000
  • Thru axle: FOX 15QRx110mm front / NOVATEC 12x148mm rear
  • Wheel set: DT Swiss H1900 Spline 30 Disc Center Lock (15x110mm / 12x148mm)
  • Spokes: stainless steel black
  • Tires: SCHWALBE Magic Marry 65-584 (27.5x2.60) SnakeSkin, Tubeless Easy, ADDIX Soft, folding front / SCHWALBE Hans Dampf Evo 65-584 (27.5x2.60) SnakeSkin, Tubeless Easy, ADDIX Speedgrip, folding rear
  • Stem: RACE FACE Aeffect R 35 - diam 28.6mm / bar bore 35mm / 0° / length 50mm
  • Handlebar: RACE FACE Aeffect R 35 RiseBar - diam 35mm / rise 20mm / width 780mm
  • Grips: KLS Poison
  • Seat post: KS LEV Integra Remote Telescopic - diam 31.6mm / length 440mm, travel 150mm
  • Saddle: KLS Styx
  • Pedals: plastic


For more information about this article from Kellys Bicycles click here.
