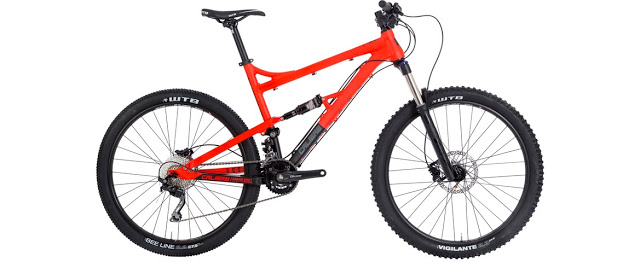

Calibre Bikes (UK) – A new and improved version of Calibre's full-suspension mountain bike.

The frame of the Calibre Bossnut V2 has increased its lateral stiffness with the introduction of a one piece rocker link, which in turn has given greater clearance for a larger rear tyre – great for those UK winters.

It now has wider WTB tubeless ready rims that give an overall stronger wheel, and more importantly a better tyre profile to allow more control and grip.

The effective top tube of the bike has been stretched a little, this gives more room to maneuverer and allows a shorter stem which gives better steering control and confidence in steeper terrain.

A key part of what makes the Bossnut such a great bike is its well thought out and awesome spec list, and this continues for 2017, with the Rock Shox Sektor Silver forks and the Monarch R rear shock keeping the bike in control and wanting to go faster.

Shimano Deore provides the drive while the clutch rear mech keeps the chain on over the roughest terrain, with the Shimano hydraulic brakes keeping everything in control with one finger.

A short Calibre trail stem and wide 760mm Ritchey handlebar give the rider superior control in steep terrain and allow the bike to be thrown around with confidence.

Features:

• Increased the effective top tube length, whilst decreasing the length of the stem to give a more controlled and confident ride
• Developed a one piece rocker link to stiffen the suspension laterally
• Increased tyre clearance for up to a 2.35” tyre
• Available in frame sizes 17.5" (M), 19.5" (L) and 21.5" (XL)

Specifications:

• Wheel Size - 650B
• Frame - 6061 aircraft grade hydroformed alloy frame with tapered headtube and forged one piece rocker link - 130mm rear travel
• Fork - Rock Shox Sektor Silver 130mm travel with tapered alloy steerer and 15mm bolt through maxle
• No. of Gears - 20
• Gear Details - Shimano Deore 10 speed
• Gear Shifters - Shimano Deore 2 x 10 speed iSpec
• Front Derailleur - Shimano Deore 2 x 10 speed
• Rear Derailleur - Shimano Deore 10 speed Shadow Plus
• Chainset - Shimano Deore 36x22T
• Cassette - Sunrace 11-36T
• Brakes - Type - Hydraulic Disc
• Brakes - Details - Shimano M506 levers with M447 calipers, Shimano 180mm centre lock front rotor and Shimano 160mm centre lock
• Brakes - Levers - Shimano M506 levers
• Weight - 14.5 kg
• Rims - WTB ST i25 32H tubeless ready
• Tyres - WTB Vigilante 2.3” front, WTB Bee Line 2.2” rear
• Front Hub - Formula 15mm bolt through 32H
• Rear Hub - Formula 32H
• Stem - Calibre trail (45mm for 17.5"and 19.5", 60mm for 21.5")
• Saddle - WTB Volt Sport
• Handlebar - Ritchey MTN Trail 760mm width, 20mm rise
• Head Set - FSA Orbit tapered No. 57E
• Pedals - Alloy platform pedal
• Rear Shock - Rock shox Monarch R 190x51mm
• Gender - Mens
• Seatpost - Calibre trail 30.9mm 350mm length
