"An all-new 2018 Pipeline frame pushes the rear travel to 140mm, increases stiffness, adjusts the suspension kinematics for more efficient pedaling and better small-bump sensitivity, and gives the frame a host of next-generation features. Available in both carbon and alloy models, the Pipeline plows through greasy roots and square-edged chunder with authority, while providing near limitless traction on rocky, slippery climbs", explained Rocky Mountain.

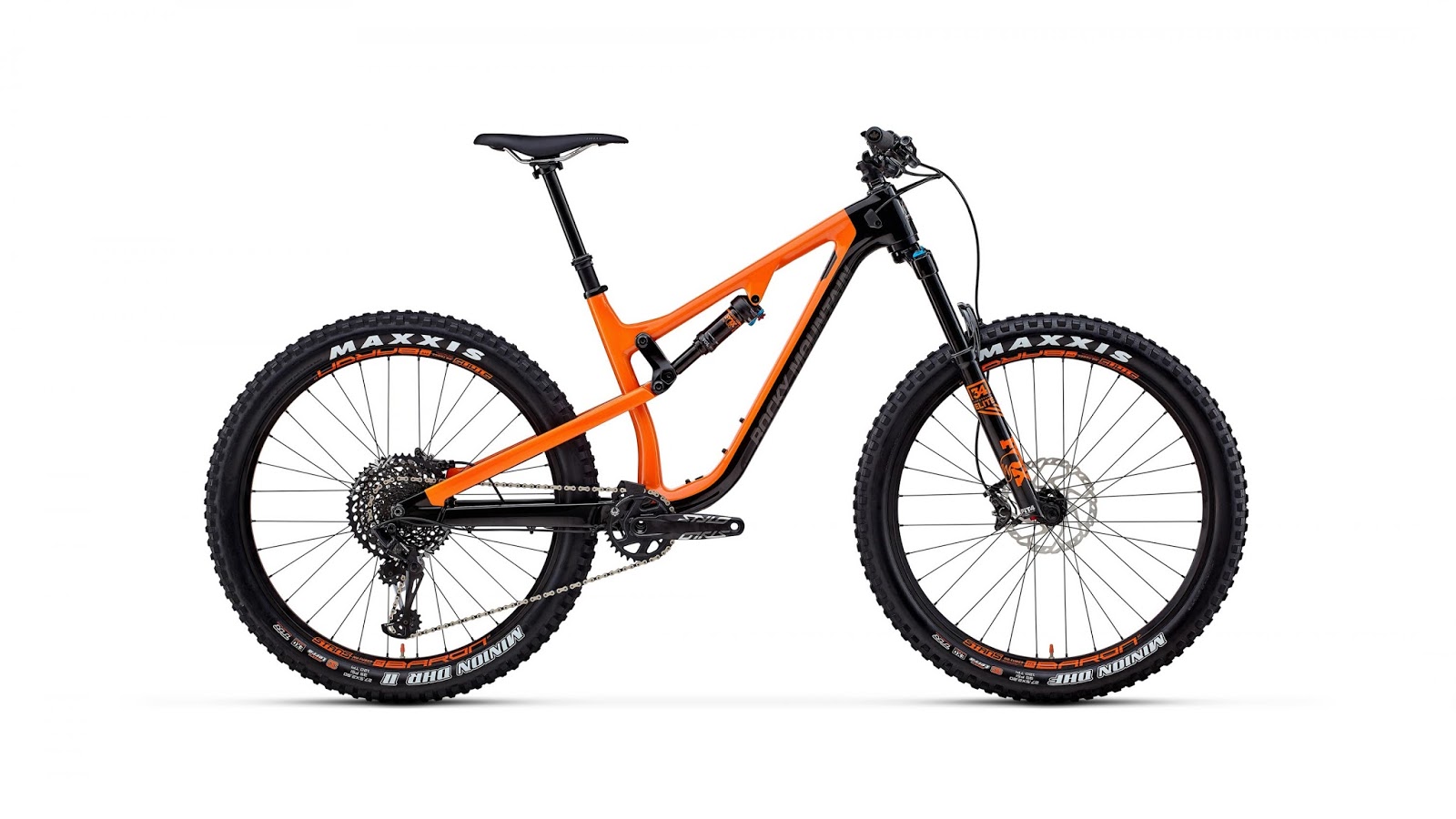

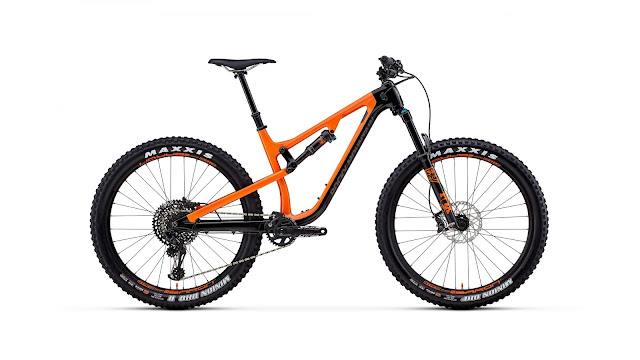

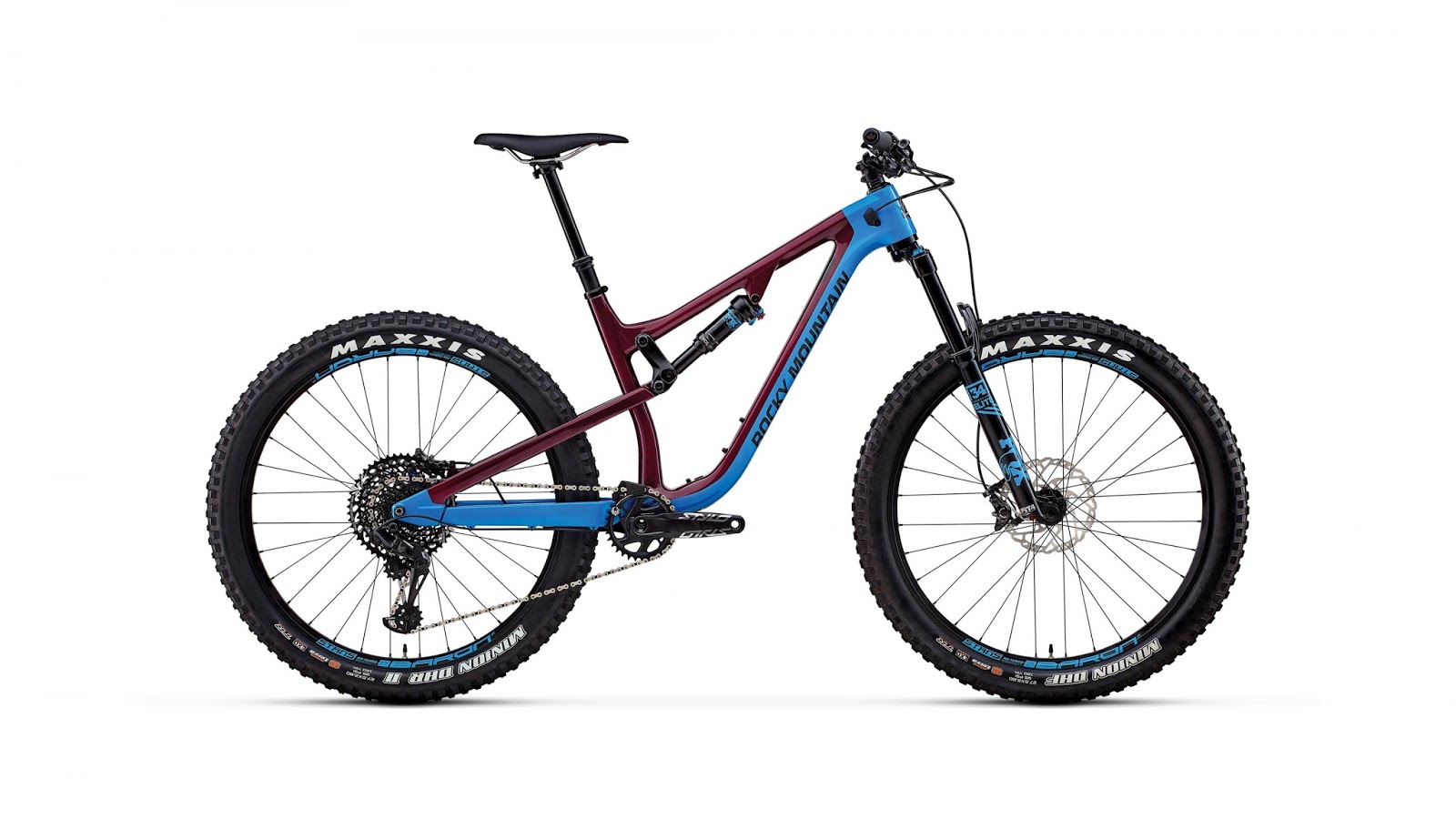

Pipeline Carbon 70:
Specifications:
- Sizes S - M - L - XL
- Frame Smoothwall™ Carbon. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. Ride-9™ Adjustable Geometry + Suspension Rate
- Fork Fox 34 Float Performance Elite 140mm
- Front Travel 140 mm
- Shock Fox Float DPS Evol Performance Elite
- Rear Travel 140 mm
- Headset FSA Orbit NO.57E Extend-o-matic
- Stem Rocky Mountain 35 AM
- Handlebar Race Face Turbine R 780mm
- Grips Rocky Mountain Lock On XC
- Brakes Shimano XT
- Shifters Sram GX Eagle
- Front Derailleur Rocky Mountain Spirit Guide
- Sram GX Eagle
- Cranks & Chainrings Sram Stylo 7k Eagle 32T
- Bottom Bracket Sram GXP BB92
- Cassette Sram XG-1275 10-50T
- Chain Sram GX Eagle
- Front Hub Rocky Mountain Sealed Boost 15mm
- Rear Hub DT Swiss 370 Boost 148mm
- Spokes WTB 1.8-1.6
- Rims Stans Baron S1 Tubeless Ready - Tape / Valves Incl
- Tires Maxxis Minion DHF Maxx Terra 3C Tubeless Ready 27.5 x 2.8 / Maxxis Minion DHR II Maxx Terra 3C Tubeless Ready 27.5 x 2.8
- Seatpost Fox Transfer Performance Elite 30.9mm
- Saddle WTB Silverado Race

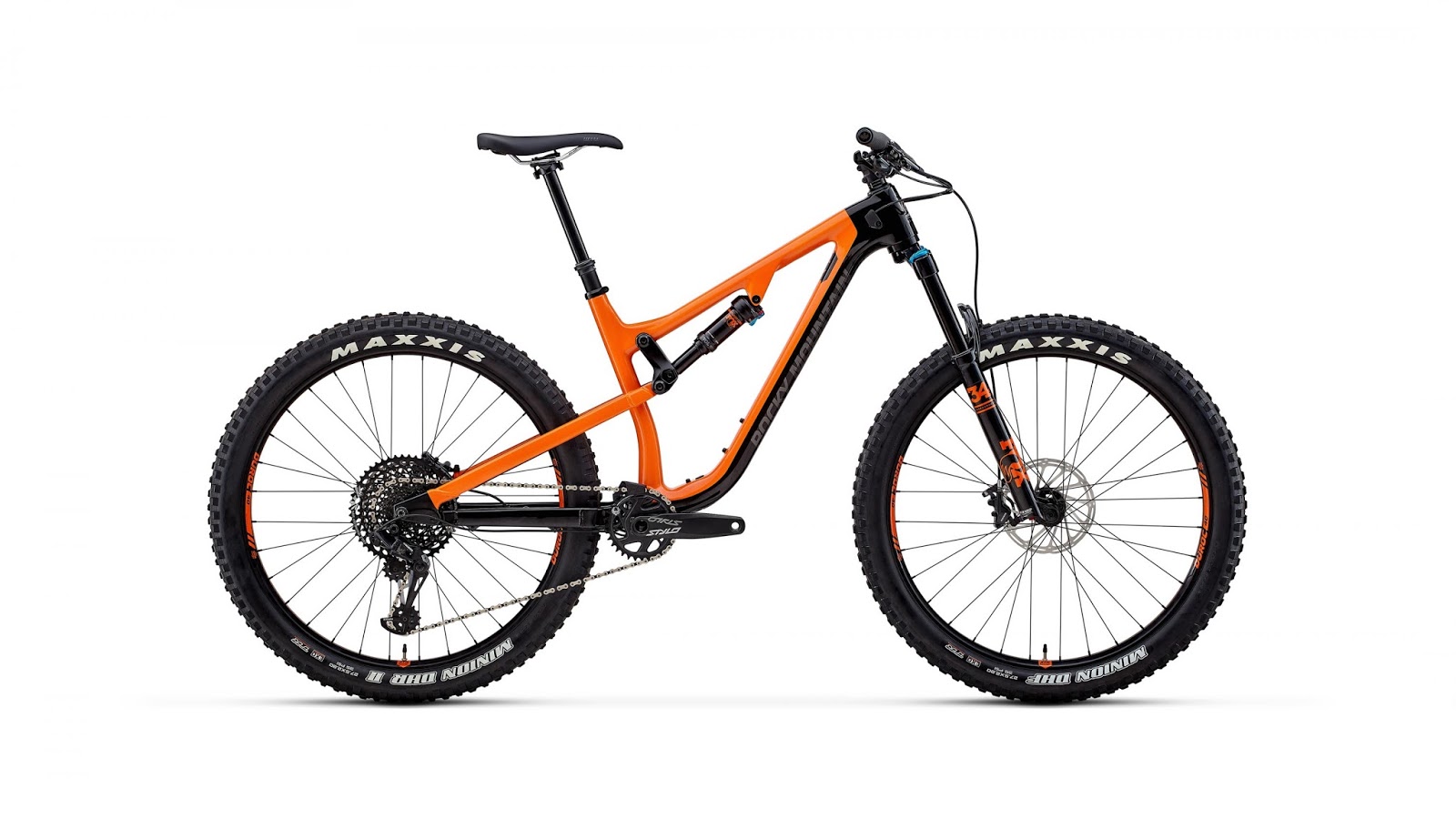

Pipeline Carbon 50:
Specifications:
- Sizes S - M - L - XL
- Frame Smoothwall™ Carbon. Form™ Alloy Rear Triangle. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. Ride-9™ Adjustable Geometry + Suspension Rate
- Fork Fox 34 Float Performance 140mm
- Front Travel 140 mm
- Shock Fox Float DPS EVOL Performance
- Rear Travel 140 mm
- Headset FSA Orbit NO.57E Extend-o-matic
- Stem Rocky Mountain AM
- Handlebar Rocky Mountain AM 760mm
- Grips Rocky Mountain Lock On Light
- Brakes Sram Level TL
- Shifters Sram GX Eagle
- Front Derailleur Rocky Mountain Spirit Guide
- Rear Derailleur Sram GX Eagle
- Cranks & Chainrings Sram Stylo 6k Eagle 32T
- Bottom Bracket Sram GXP BB92
- Cassette Sram XG-1275 10-50T
- Chain Sram GX Eagle
- Front Hub Rocky Mountain Sealed Boost 15mm
- Rear Hub DT Swiss 370 Boost 148mm
- Spokes WTB 1.8-1.6
- Rims Sun Düroc 40 Tubeless Ready - Tape / Valves Incl
- Tires Maxxis DHF EXO Tubeless Ready 27.5 x 2.8 / Maxxis DHR EXO Tubeless Ready 27.5 x 2.8
- Seatpost Fox Transfer Performance Elite 30.9mm
- Saddle WTB Volt Race

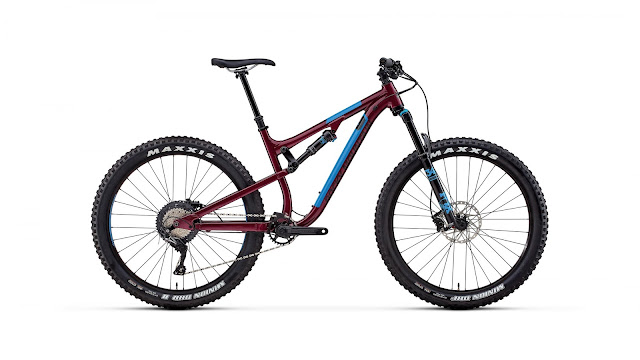

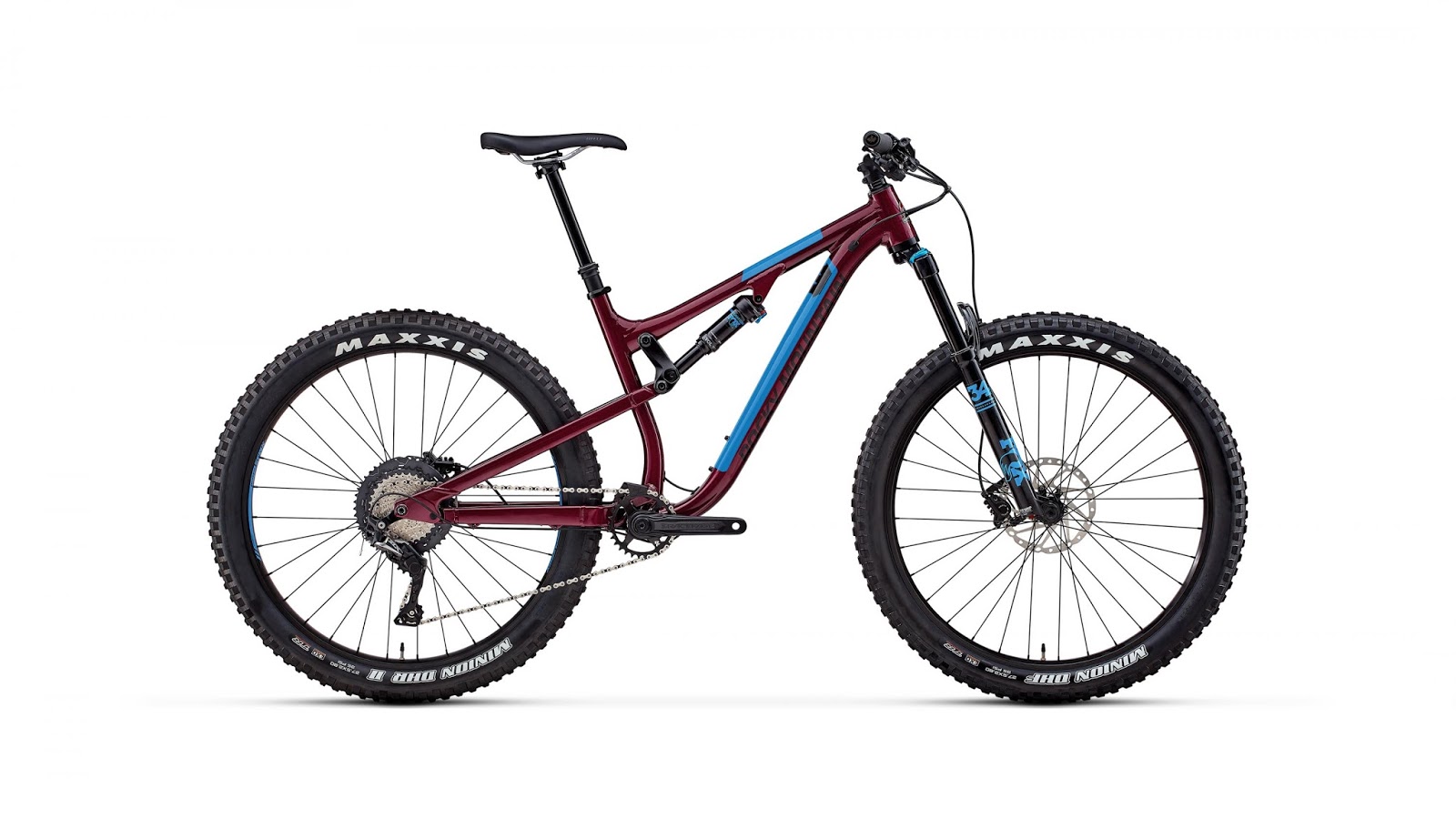

Pipeline Alloy 50:
Specifications:
- Sizes S - M - L - XL
- Frame Form™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. ISCG05 Tabs. Ride-9™ Adjustable Geometry + Suspension Rate
- Fork Fox 34 Float Performance 140mm
- Front Travel 140 mm
- Shock Fox Float DPS EVOL Performance
- Rear Travel 140 mm
- Headset FSA Orbit NO.57E Extend-o-matic
- Stem Rocky Mountain 35 AM
- Handlebar Race Face Chester 780mm
- Grips Rocky Mountain Lock On Light
- Brakes Shimano MT500
- Shifters Shimano SLX
- Front Derailleur Rocky Mountain Spirit Guide
- Rear Derailleur Shimano SLX
- Cranks & Chainrings Race Face Aeffect Cinch 30T Steel
- Bottom Bracket Race Face BB92
- Cassette Shimano SLX 11-46T
- Chain KMC X11-1
- Front Hub Shimano M618 Boost 15mm
- Rear Hub Shimano M618 Boost 148mm
- Spokes WTB 2.0
- Rims Alex XM35 Tubeless Compatible - Tape / Valves / Sealant Not Incl
- Tires Maxxis DHF EXO Tubeless Ready 27.5 x 2.8 / Maxxis DHR EXO Tubeless Ready 27.5 x 2.8
- Seatpost Fox Transfer Performance Elite 30.9mm
- Saddle WTB Volt Race

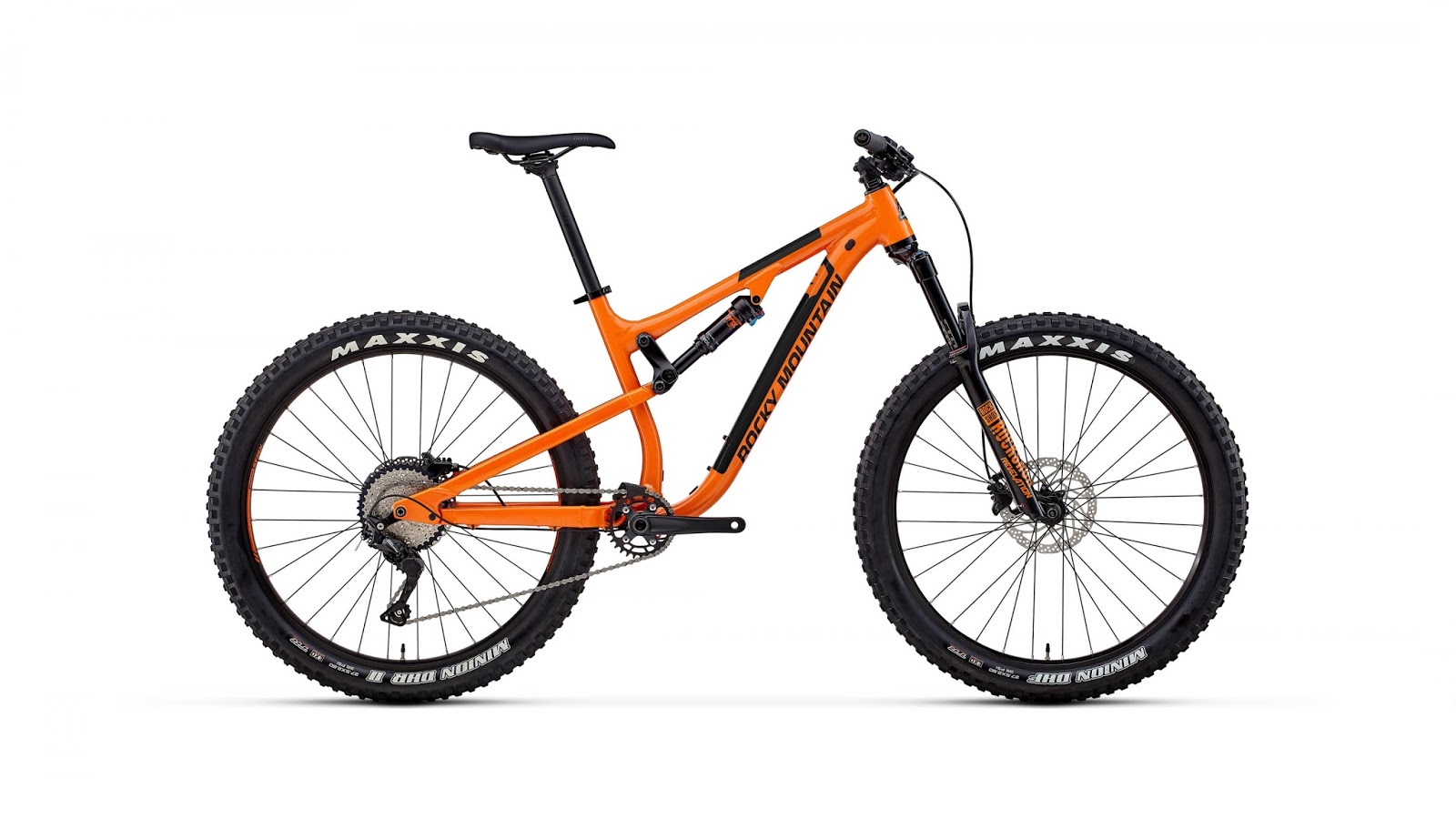

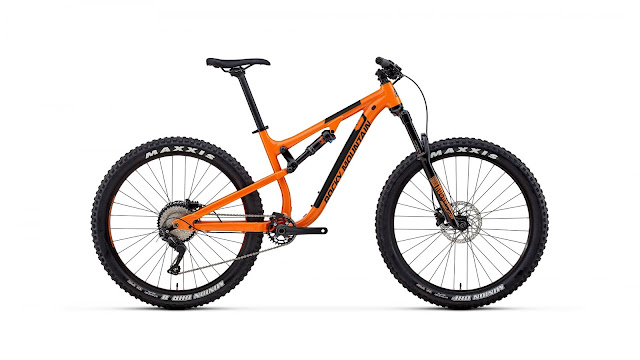

Pipeline Alloy 30:
Specifications:
- Sizes S - M - L - XL
- Frame Form™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. ISCG05 Tabs. Ride-9™ Adjustable Geometry + Suspension Rate
- Fork RockShox Revelation RC 140mm
- Front Travel 140 mm
- Shock Fox Float DPS EVOL Performance
- Rear Travel 140 mm
- Headset FSA Orbit NO.57E Extend-o-matic
- Stem Rocky Mountain AM
- Handlebar Rocky Mountain AM 760mm
- Grips Rocky Mountain Lock On Light
- Brakes Shimano M396
- Shifters Shimano Deore
- Front Derailleur Rocky Mountain Spirit Guide
- Rear Derailleur Shimano Deore
- Cranks & Chainrings Rocky Mountain Microdrive 2 PC 30T
- Bottom Bracket Rocky Mountain Sealed BB92 - Shimano Compatible
- Cassette Shimano HG-500 11-42T
- Chain Shimano HG-54
- Front Hub Rocky Mountain Boost 15mm
- Rear Hub Shimano M618 Boost 148mm
- Spokes 2.0 Stainless
- Rims Alex XM35 Tubeless Compatible - Tape / Valves / Sealant Not Incl
- Tires Maxxis DHF EXO Tubeless Ready 27.5 x 2.8 / Maxxis DHR EXO Tubeless Ready 27.5 x 2.8
- Seatpost Rocky Mountain SL 30.9mm
- Saddle WTB Volt
