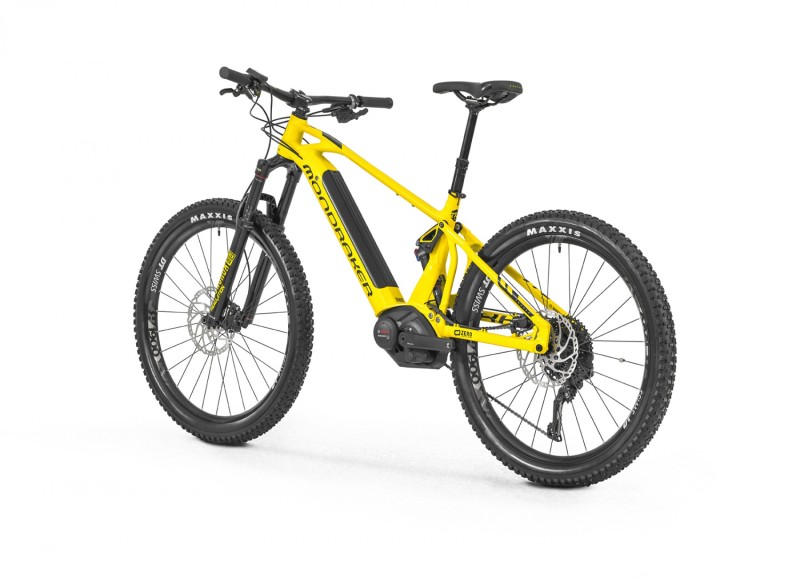

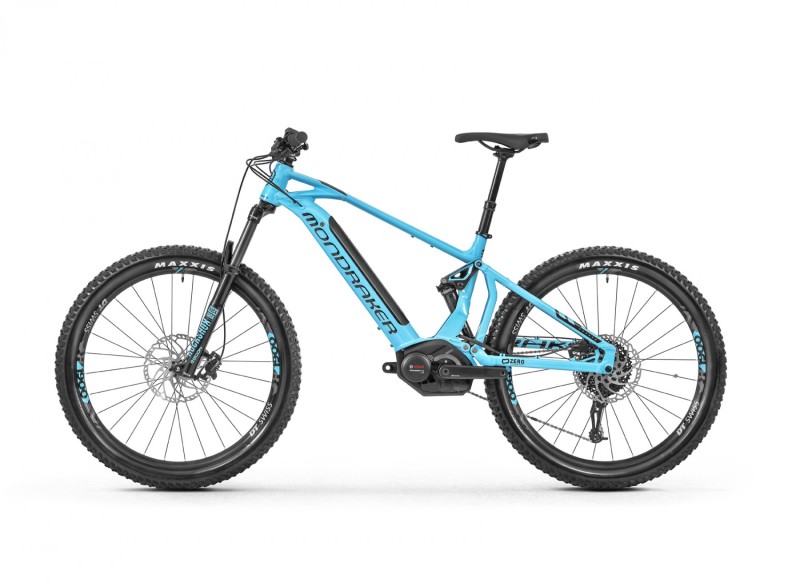

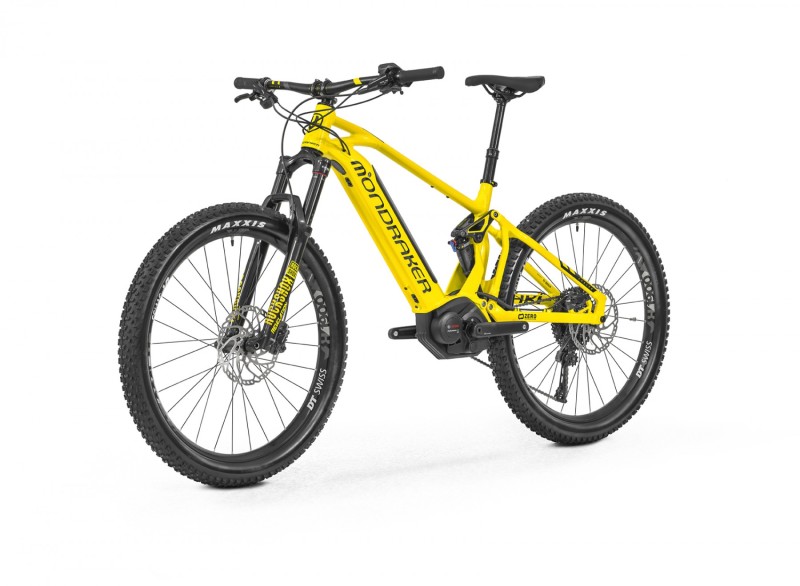

Mondraker (Spain) - Chaser defines the new generation of e-MTB Trail bikes. Zero suspension, Forward Geometry and a fully integrated Stealth alloy frameset design.
Chaser XR+ Technical Specifications:
- Frame: Chaser 27´5+ 6061 Alloy Stealth Evo, Zero Suspension System, 130mm travel, Forward Geometry, intenal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, shock mudguard
- Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 500mm
- Rear shock: RockShox Monarch RT, 200x57mm, Solo Air Settings: compression 2 positions lever, rebound, air preload. 22.2x10mm bushings
- Shock setting: Light compression, light rebound
- Fork: RockShox Revelation RC Motion control 29, 150mm, DebonAir, tapered steerer tube, 15x110mm axle, offset 42mm. Settings: compression adjustment at low-speed to lock, rebound, air preload
- Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
- Stem: Onoff Stoic FG 30mm, 6061 forged alloy, 31.8mm barbore
- Handlebar: Mondraker double butted 6061 alloy, rise: 12mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore
- Grips: Onoff Diamond, 1lock-on, 130mm
- Seatpost: Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L/XL size: 425x150mm
- Saddle: Mondraker Chaser XR design
- Front brake: Shimano MT501, RT66 203mm IS 6 bolts rotor, resin pads
- Rear brake: Shimano MT501, RT66 203mm IS 6 bolts rotor, resin pads
- Brake lever: Shimano MT501, servo wave, alloy lever
- Rim: DT Swiss H1900 Spline 27´5, 35mm internal width, tubeless ready, 28 spokes
- Spokes: DT Hybrid SP, straight pull
- Front hub: DT 370, 15x110mm, IS 6 bolts
- Rear hub: DT 370, 12x148mm, IS 6 bolts
- Front tyre: Maxxis Rekon 27´5x2.8, tubeless ready, Dual compound, Exo-protection, 60TPI, folding bead
- Rear tyre: Maxxis Rekon 27´5x2.8, tubeless ready, Dual compound, Exo-protection, 60TPI, folding bead
- Crank: Bosch Performance Line CX system, PowerTube battery 500Wh , Purion on-board computer, Miranda Delta ebike crankset, 165mm
- Rings: MDK 16T, narrow-wide, 6mm offfset
- Chain: Shimano HG601, 11s
- Rear derailleur: Shimano XT M8000, Shadow+, SGS, 11s
- Lever: Shimano SLX M7000, 11s
- Sprocket: Sunrace CSMS8, 11-46T, 11s
- Hanger: Mondraker M067
- Weight without pedals: 23,200
Other Models:
- Chaser +
