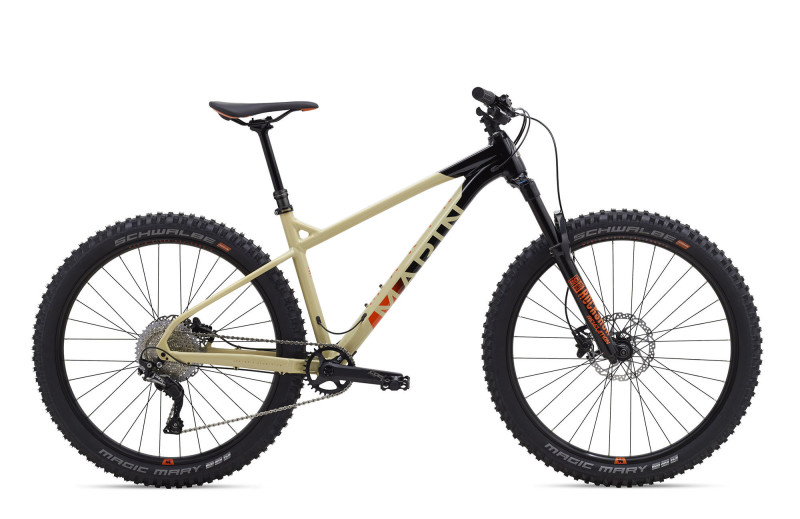

Marin Bikes (United States) - Press Release: Developed in conjunction with freeride legend Matt Jones and taking its name from the most rough and tumble piece of Marin County, the all-new San Quentin collection lives up to the notoriety of the namesake maximum security California State Prison.
Blending the strength and style of our Alcatraz dirt jump frame with the natural trail savvy of the Nail Trail hardtail, the San Quentin family of aggressive trail hardtails is the perfect mash-up for the modern trail rider.
San Quentin 3 Specs:
- Frame: Series 3 6061 Aluminum, Double Butted Frame, Internal Shifter & Dropper Post Routing, External Brake, 12x148mm Thru Axle, 73mm Threaded BB
- Fork: RockShox Revelation RC, 110x15mm Boost Spacing, Fast Black Stanchions, 130mm Travel, Bolt-On Thru Axle
- Rims: Marin Aluminum Double Wall, Disc Speci c, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible
- Hub Rear: Forged Alloy, Quad Sealed Cartridge Bearings, Alloy Axle, 12x148mm, Centerlock Disc, 32H, Shimano Standard Freehub Body.
- Hub Front: Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Centerlock Disc, 32H
- Spokes: 14g Black Stainless Steel
- Tires: Vee Tire Flow Snap, 27.5x2.6”, Tackee Compound, Folding Bead, Tubeless Compatible
- Derailleur Rear: Shimano RD-M7000, SLX GS, Direct Mount, 11-Speed
- Derailleur Front: -
- Shift Lever: Shimano SL-7000R 11-Speed
- Crankset: FSA Comet, Direct Mount 32T Ring, 2-piece Design
- Bottom Bracket: External Sealed Cartridge Bearing
- Chain: KMC X-11 EL
- Cassette: SunRace, 11-Speed, 11-46T

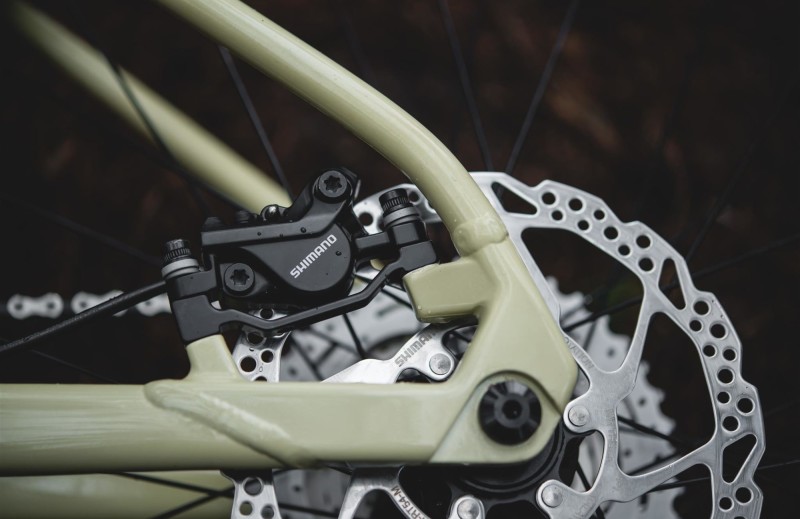

- Brakes Front: Shimano BR-MT400 Hydraulic Disc ,180mm Centerlock Rotor
- Brakes Rear: Shimano BR-MT400 Hydraulic Disc, 180mm Centerlock Rotor
- Brake Levers: Shimano BL-MT400 Hydraulic
- Handlebar: Marin Mini-Riser, 6061 Double Butted, 28mm Rise, 780mm width, 4° up, 9° back
- Stem: Marin 3D Forged Alloy, 35mm
- Grips: Marin Single Clamp Locking
- Headset: FSA No 57E, Sealed Cartridge Bearings, 11/8"x11/2”
- Seatpost: X-Fusion Manic, 1x Plastic Remote, Size S 125mm Travel, All Other Sizes: 150mm Travel
- Saddle: Marin MTB
- Pedals: Alloy Body Flat
- Extras: Marin Custom Guide, Alloy Back Plate, Top Guide Only, ISCG 05 Mounts
Other Models:
- San Quentin 1
- San Quentin 2
