Rocky Mountain (Canada) - Press Release: The Altitude will be our key platform for enduro racing and aggressive trail riding. Ridden by the Rocky Mountain Race Face Enduro Team, this bike is fast. Already race proven with Jesse's win at the EWS in Zermatt, the redesigned Altitude is now more capable than ever.
The goal with the redesign was to create a bike that would be competitive on today's racetracks while still being a ton of fun for those getting out on weekends. We might not all smash racetracks and stand on podiums like Jesse Melamed, but we can all relate to the feeling of committing to ride a little faster or hitting that feature you usually skip over. The Altitude has everything that you need to take your riding to the next level.
Looking at the needs of shorter riders vs. taller riders, we've introduced a wheelsize split on our medium Altitude frame. The Altitude is designed high speed descending and aggressive riding, which is why we've offered four frame sizes including both size small and medium with 27.5" wheels.

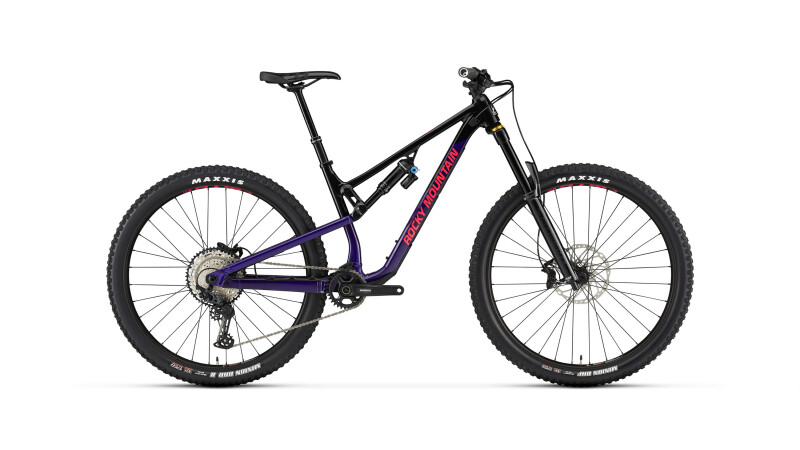

Specifications: Altitude Carbon 90 Rally Edition:
- Frame: SMOOTHWALL™ Carbon. Full Sealed Cartridge Bearings. Press Fit BB92. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry. 2 Position Axle. 160mm Travel. SMOOTHWALL™ Carbon Rear Triangle
- Sizes: SM-MD-LG-XL
- Fork: Fox 38 Float EVOL GRIP2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset
- Front Travel: 170mm
- Shock: Fox Float X2 Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ
- Rear Travel: 160mm
- Headset: FSA Orbit NO.57E | 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
- Stem: Race Face Turbine R | 0° Rise | All Sizes = 40mm
- Handlebar: Race Face Next R | 780mm Width | 20mm Rise | 8° Backsweep | 4° Upsweep | 35mm Clamp
- Grips: Ergon GD1 EVO Lock On
- Brakes: Shimano XTR Trail 4 Piston | Finned Metal Pads | RT86 203mm F Rotor | RT86 180mm R Rotor
- Shifters: Shimano XTR
- Rear Derailleur: Shimano XTR
- Cranks & Chainrings: Shimano XTR | 27.5 = 34T | 29 = 32T | 24mm Spindle | 170mm Crank Length
- Bottom Bracket: Shimano SM-BB71
- Cassette: Shimano XTR 12s 10-51T
- Chain: Shimano XTR 12s
- Front Hub: Race Face Vault Boost 15mm
- Rear Hub: Race Face Vault Boost 148mm | RMB Axle | 163mm x 12mm x 1.5mm
- Rims: Race Face Turbine R Wheelset | Tubeless Ready - Tape | Valves Incl | 28H
- Tires: F: Maxxis Minion DHF 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxGrip DD Tubeless Ready
- Seatpost: Race Face Turbine R (by Fox) Dropper 30.9mm | SM = 125mm | MD = 150mm | LG - XL = 175mm
- Saddle: WTB Volt Race | Cromoly Rails | 142mm Width
- Weight: 14.70 KG | 32.3 LBS | Incl. Inner Tubes
