Thok E-Bikes (Italy) - Press Release: THOK E-Bikes introduces two new models as a preview of its future range: the MIG 2.0 and the TK01 Ltd.

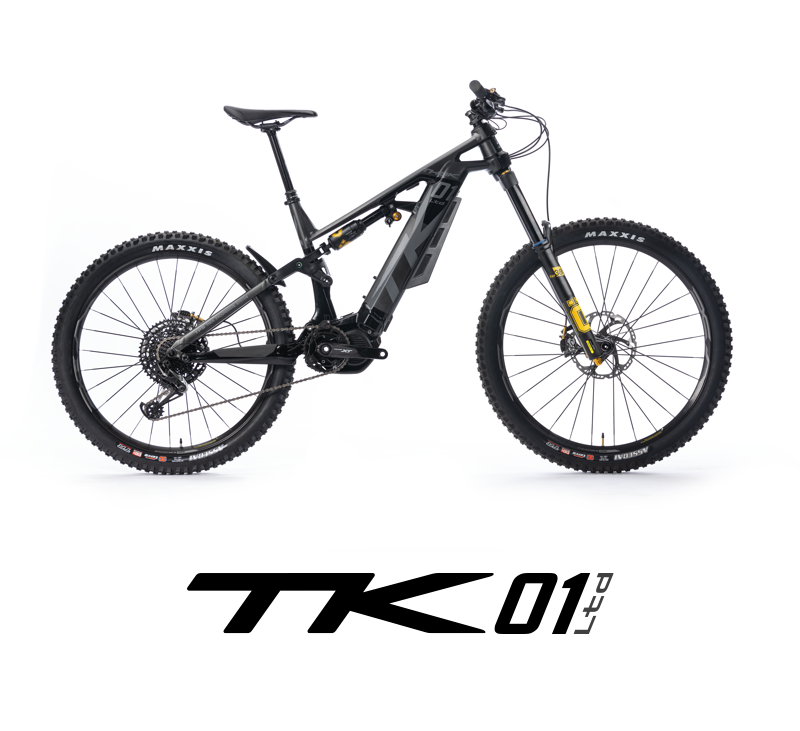

TK01 Ltd:

Limted edition of 35 units, painted and assembled in Italy and customized with the name of the owner.

Designed around the unprecedented "THOK CONTROL GEOMETRY”, the TK01LTD is the e-MTB for the most demanding bikers. The new “PRECISE FRONT END”, created for the innovative tapered head tube 1.8, and the new 38mm upper tube OHLINS fork with 180mm travel, mark an epochal change in the conception of e-MTB's steering. The integrated 630Wh battery, located close to the engine to assure a low center of gravity, together with the mullet wheels, guarantee fun without time limits, respecting our claim: ”Performance First”.

TCG “THOK CONTROL GEOMETRY” Plus:

It’s the innovative geometry from THOK represented by an elongated top tube and a new standard tapered head tube 1.8, with 65° steering angle, straight seat tube of 75,5°, ensuring riding comfort and total control on technical singletracks.

Spec:

• Frame: Alloy frame 6061 T4 T6 with 170mm rear travel, orged and CNC parts, hydroformed tubes, headtube tapered 1.8 and integrated battery.
• Sizes: S - M - L - XL
• Power supply: SHIMANO STEPS E8000 - 70 Nm (250W) - integrated battery 630 Wh
• Display and shifter: Cyclo Computer SC-E8000 with 1,6" coloured LCD screen - ergonomic SW-E7000 controller (Eco, Trail, Boost e Power-Walk)
• Fork: OHLINS - RXF38 Air TTX18 - 180mm, Boost - 29" - 1,15 x 110mm, 38mm chassis, rebound and compression set-up
• Rear shock: OHLINS - TTX Air, 230x65mm
• Brakes: SHIMANO Saint - 4 calipers, with 203mm Shimano Ice Tech rotor disks
• Rear derailleur: SRAM - X01, 12s
• Shifter: SRAM - X01
• Cassette: SRAM - X01, 12s (11-50)
• Chain: SRAM 12s
• Crank: SHIMANO - chainring 34T
• Wheels: MAVIC - E-XA Drifter 29"x30mm front & 27,5"x35mm rear
• Stem: THOK CNC, 35mm front clamp oversize, 50mm length
• Handlebar: RACEFACE - Carbon 35mm, rise 20mm, 790mm width
• Grips: THOK - Lock-On grip, regular size
• Tires: MAXXIS - Assegai  29x2.6 front & 27.5x2.6 rear 3C / EXO+ / TR
• Seatpost: THOK telescopic dropper post (100mm size S - 150mm size M - 170mm sizes L and XL)
• Saddle: THOK Fit in Chromo
• Pedals: Pedals in polyethylene

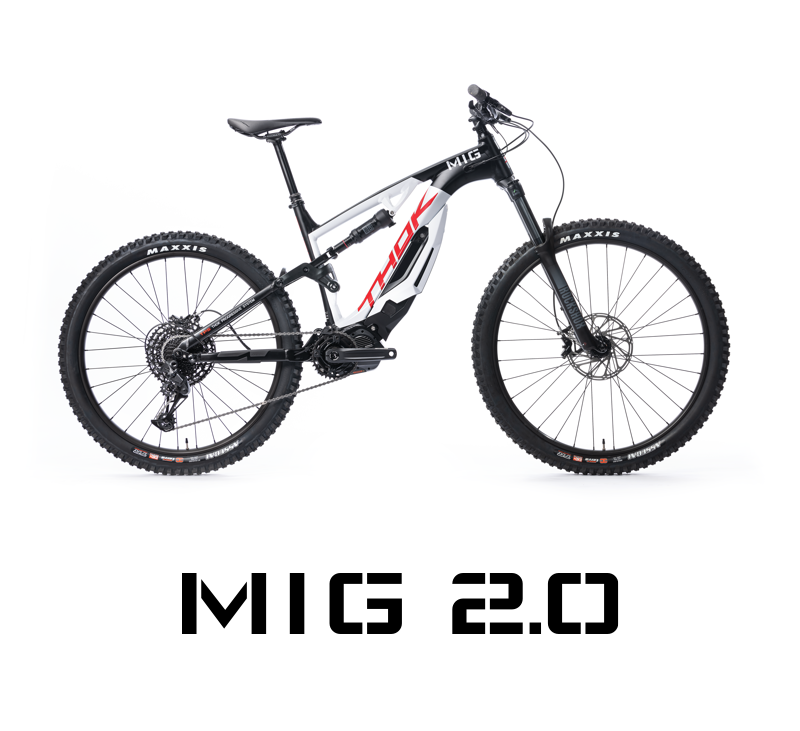

MIG 2.0:

THOK MIG 2.0 is the new generation of MIG designed around the new “THOK CONTROL GEOMETRY”.

The THOK MIG 2.0 is an All-mountain ebike for those riders wishing to ride longer without having to give up on performance, control, and ridability. This was made possible thanks to the SHIMANO engine, the mullet wheels (29"/27.5") and the semi-integrated battery, a typical feature of MIG bikes. Design and graphics by Aldo Drudi D-Perf.

TCG "THOK CONTROL GEOMETRY":

It’s the innovative geometry characterized by an elongated top-tube, a slack (66°) head-tube angle, and a straight seat-tube with 74,7°. This geometry ensures riding comfort, perfect traction, and optimal control on technical singletracks.

Spec:

• Frame: Alloy frame 6061 T4 T6 with 140mm rear travel, forged and CNC parts, hydroformed tubes, geometry 29"/27.5", semi-integrated battery
• Sizes: S - M - L - XL
• Power supply: SHIMANO STEPS E7000 - 60 Nm (250W) - 504 Wh waterproof battery
• Display and shifter: Cyclo Computer SC-E7000 with 1,39" display - SW-E7000 ergonomic controller (Eco, Trail, Boost e Power-Walk)
• Fork: ROCK SHOX - 35 RC, Boost 150 mm travel, 15x110 mm, 35mm chassis, 150mm travel suspension, external rebound and low speed compression.
• Rear shock: ROCK SHOX - DELUXE Select R Air, custom tuned Thok, metric 210 x 55 mm
• Brakes: SRAM - GUIDE T  4 calipers, with 200mm rotor disks
• Derailleur: SRAM - SX Eagle 12s
• Shifter: SRAM - SX Eagle trigger 12s
• Cassette: SRAM - SX Eagle 12s, 11-50
• Chain: SRAM - SX Eagle 12s
• Crank: SHIMANO chainring 34 T
• Wheels: THOK Drift - 29"x30 mm front & 27.5"x35 mm rear
• Stem: THOK Force - 35mm clamp oversize, 45 mm length
• Handlebar: THOK Oversize bar 35 mm, size 20 mm
• Grips: THOK - Lock-On grip
• Tires: MAXXIS - Assegai  29x2.6 front & 27.5x2.6 rear  3C / EXO+ / TR
• Seatpost: THOK telescopic dropper post (125 mm size S - 150 mm other sizes)
• Saddle: THOK Fit in Chromo
• Pedals: Pedals in polyethylene
• Weight: 21,5 Kg (Medium size without pedals)
