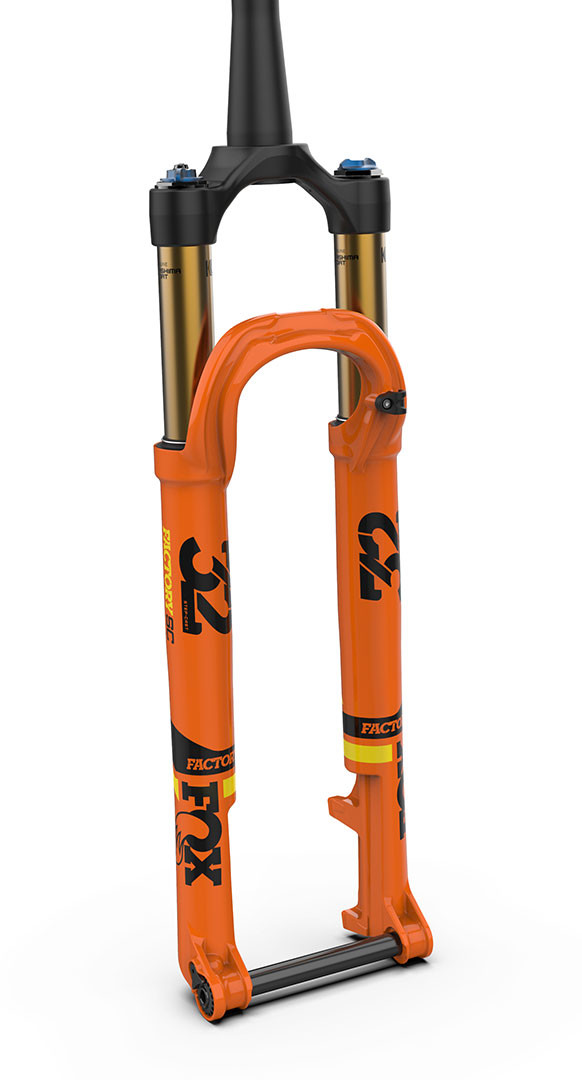

Fox Factory (United States) - Press Release: Competition drives innovation, and as cross-country athletes and course designers push the boundaries of lightweight components, 32 Step-Cast rises to meet the demand. A redesigned crown for 2020 increases stiffness to the same level as the Trail-proven 34.

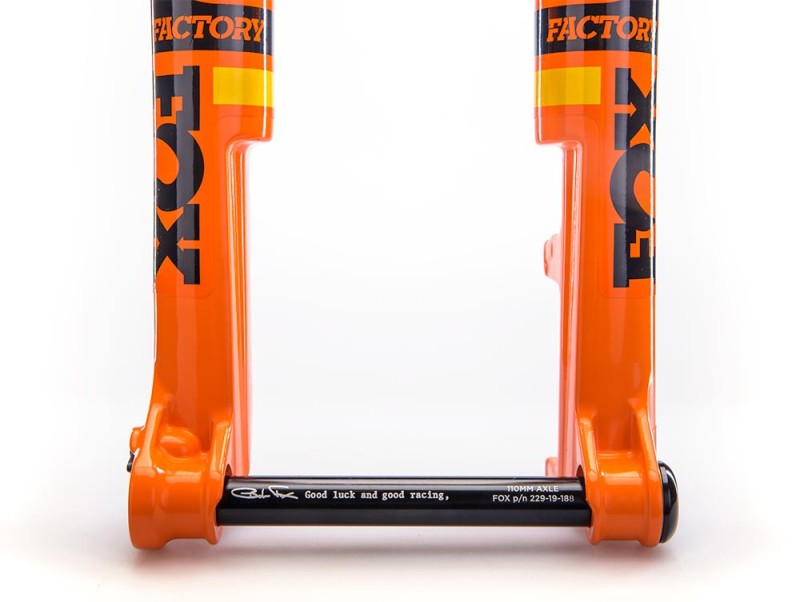

The distinct shape of the lower leg design isn’t just for looks. The 32 Step-Cast (SC) chassis uses a narrow stance to save weight and the step design makes room for the spokes and brake rotor. The 32 SC features 32 mm upper tubes and ample bushing overlap for a quality ride and the hollowed out lower legs provide even more weight savings.

"Factory" says it all. The best-of-the-best technology we have to offer is available in our Factory Series models with our buttery smooth, and ultra durable Genuine Kashima Coat. These products are World Cup proven.

• Travel: 100
• Air Spring: FLOAT
• Damper Options: FIT4 3-Pos Lever w/adj, FIT4 2-Pos Remote w/adj
• Axle Options: Kabolt 110 Boost, Kabolt 100
• Upper Tube Finish: Kashima Coat
• Steerer: 1.5 Taper
• Color Options: Gloss Orange, Matte Black
• Starting Weight: 3.06 lb / 1387 g

FIT4:

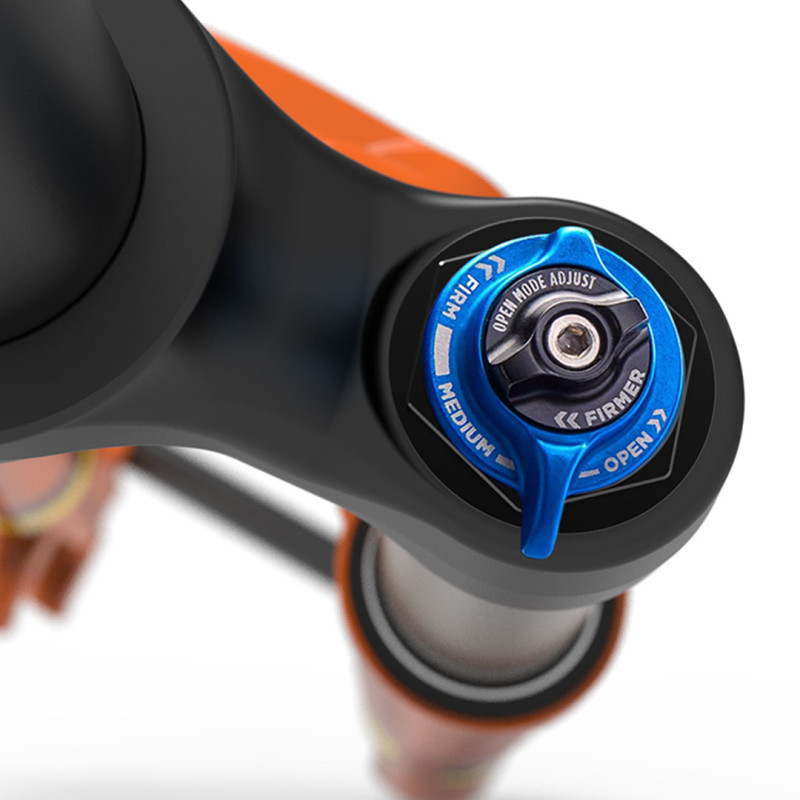

In its fourth generation, our patented FIT4 closed cartridge system provides three on-the-fly compression damping positions—Open, Medium, and Firm—to adapt to varying trail conditions. Factory Series forks feature an additional 22 clicks of low-speed compression adjust in the Open mode, allowing riders to fine-tune their exact damping preferences.

EVOL:

Patented Air Transfer Port System:

Our EVOL linear spring curve gives forks and shocks plushness off the top, extra mid-stroke support, and more tunable bottom-out progression, allowing riders to tap into the ideal pairing of front and rear-end feel.

FLOAT EVOL Air Spring
EVOL technology from rear shocks is integrated into all FOX forks. EVOL increases negative air spring volume, specifically positioned and sized for optimum small bump sensitivity.

GRIP DAMPER:

Inspired from moto, the GRIP damper uses our FIT sealed cartridge technology combined with a coil-sprung, independent floating piston. GRIP allows excess oil to purge through specially designed ports at the top of the damper to maintain consistent damping and increase durability. Performance Series forks provide Open, Medium, and Firm modes with additional micro-adjust between settings.

GENUINE KASHIMA COAT:

Buttery smooth:

Kashima's distinctive gold color is backed by its high performance attributes—properties that provide an exceptionally smooth feel and extreme durability.
