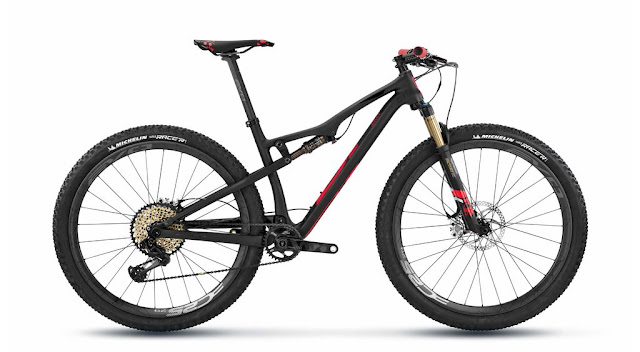

BH (Spain) – The Lynx Race bike with 100 mm travel for XC and Marathons was built using HCIM carbon moulding technology that is used in BH Bikes' high-performance road frames. This frame was designed in conjunction with BH cycling teams. With the aim of producing a frame for marathon competitions that ensures optimal performance.

1850 gr. Ultimate Carbon Lay Up Technology - U-CL:
Monocoque frame technology that applies high pressure in the mould to reach the highest levels of compact material and eliminate inconsistent pressures in the frame that create bubbles and imperfections.

2150 gr. Performance Carbon Lay-Up Technology - P-CL:
Allows controlling and optimizing thickness in different parts of the frame.

Advanced Steering Angle 68.5º:
Geometries that are more aggressive were designed by means of a more advanced 68.5º steering angle, greater reach and a more compact 426mm rear triangle. According to BH, "all these elements provide the cyclist with a better position during the ride improving performance and facilitating better handling during the descents".

New Boost 148 & 12mm thru axle:
It includes the new Boost 148 hub standard that together with the 12mm thru axle increases wheel rigidness and lateral rigidness by 20% and allows compatibility with 27.5"+ wheels. And a rear triangle of 426 mm to improve steering, performance and handling.

Split Pivot Technology:
This system allows for separate action on three forces produced on the bicycle: pedalling, braking and suspension. The result is maximum pedalling efficiency with consistent and progressive suspension. The advanced rear suspension of the Lynx allows it to have a greater range while being very lightweight.

Internal Cable Guiding Inbox D12 integrated into the Bottom Bracket:
The cable guiding system is internal in the Lynx range. In addition, they are equipped with the internal guiding for a dropper seatpost. The electronic gear change is fully housed and hidden. "Using the patented «clip» system on the bottom bracket. It is discreet, lightweight, isolated from humidity and allows easy assembly", explained BH.

Lynx Race Carbon XX1 Eagle Specifications:

• Frame Lynx Race 29" Monocoque Carbon Frame, Boost 148
• Rear shock Fox DPS Evol Kashima Remote Lock
• Fork Fox 32 SC Factory Remote Lock
• Stem BH Evo
• Headset BH Evo
• Shift levers Sram XX1 Eagle 12sp
• Rear derailleur Sram XX1 Eagle 12sp
• Crank set Sram XX1 Eagle 34
• Bb set Sram
• Cassete Sram XX1 Eagle 10/ 50
• Chain Sram
• Front brake Formula Cura 180mm
• Rear brake Formula Cura 160mm
• Wheelset BH Evo Carbon Tubeless Ready
• Tires Michelin Jet XCR 2.25
• Saddle Prologo Scratch X8
• Seat clamp BH
• Seatpost BH Evo Carbon
• Handlebar BH Evo Carbon
• Grips BH Lock On

Other Lynx Race Models:

• Lynx Race Carbon Fox XI DI2
• Lynx Race RC Carbon Fox
• Lynx Race RC Carbon Recon
• Lynx Race Alu Fox XT
• Lynx Race Alu Fox
• Lynx Race Alu Recon
