Marin Bikes' New Gestalt Gravel Bike Series

Marin Bikes' New Gestalt Gravel Bike Series
Marin Bikes (USA) – "The Gestalt series takes you Beyond Road. These endurance models let you take any path you feel comfortable, whether it be on the asphalt or up a gravel road with a secret view. The lightweight butted aluminum Series 4 and Series 3 frames feature clearance for up to 35mm tires, wide-range drivetrains, fender eyelets, and powerful road-specific disc brakes to make any terrain and weather manageable", stated Marin Bikes.

Series 3 or 4 Frame:
The Gestalt features a butted and formed Series 3 6061 aluminum frame with internal routing, disc brakes, and rack and fender eyelets. Series 4 frames add a 6066 aluminum top tube, Naild 12.3.9 locking quick release thru-axles, and a tapered headtube.

Beyond Road Geometry:
Beyond Road Geometry offers a blend of endurance road handling with enhanced stability for off pavement use.

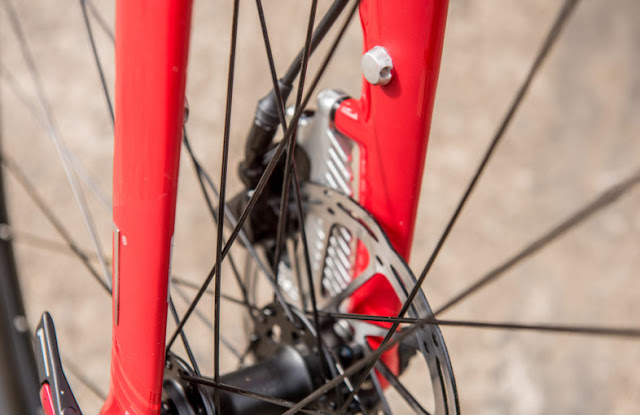

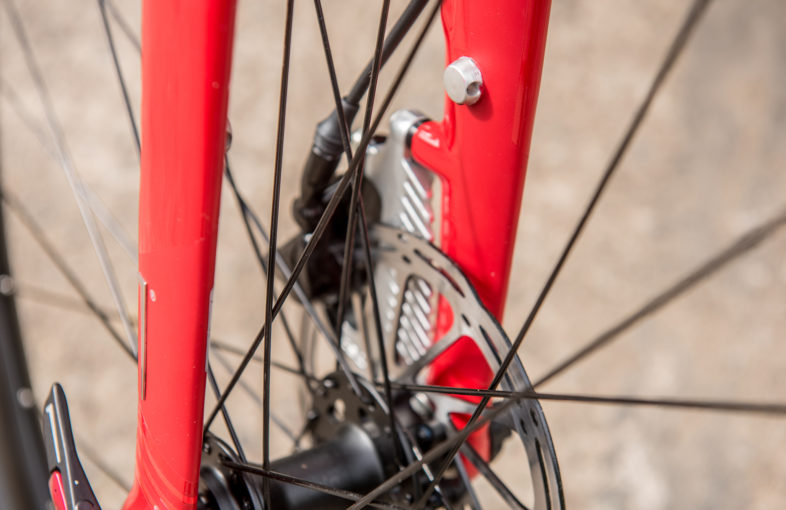

Disc Brakes:
Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.

Tire Clearance:
The Gestalt frame and fork has clearance for up to 700Cx35 tires.

Gestalt X11 Specifications:
  • Frame - Series 4 Beyond Road, 6066/6061 Aluminum, 700C Wheels, Tapered Head Tube, Relieved BB, Internal Cable Routing, Post Mount Disc, 142x12mm Naild 12.3.9 Thru-Axle
  • Fork - Naild NavIt Carbon, Tapered Alloy Steerer, Naild Locking Thru-Axle, IceIt Brake Cooling Fin
  • Rims - Marin Aluminum Double Wall, 21mm Inner, 30mm Tall, Disc Specific, Tubeless Compatible
  • Hub Rear - Forged Aluminum Alloy, 142x12mm, Alloy Axle, Quad Cartridge Sealed Bearings, SRAM XD Driver, 6-Bolt Disc, 32H
  • Hub Front - Forged Aluminum Alloy, 100x15mm, 6-Bolt Disc, 32H
  • Spokes - Double Butted Stainless
  • Tires - Schwalbe G-Oone Evo, 700Cx30, Kevlar Puncture Protection, Folding Bead, Tubeless Compatible
  • Derailleur Rear - Sram Apex 1 11-Speed
  • Shift Lever - Sram Apex 1x11 Speed
  • Crankset - FSA Gossamer Pro, Megatooth 42T Chainring, BB386EVO Alloy Spindle
  • Bottom Bracket - FSA MegaExo Threaded
  • Chain - KMC X11
  • Cassette - Sram XG-1150 11-Speed, 10-42T
  • Brakes Front - Sram Apex Hydraulic Disc, 160mm Rotor
  • Brakes Rear - Sram Apex Hydraulic Disc, 160mm Rotor
  • Brake Levers - Sram Apex 1 DoubleTap Hydraulic 1x11-Speed
  • Handlebar - Marin Butted Alloy, Compact 12º Flared Drop, Flat Top
  • Stem - Marin 3D Forged Alloy
  • Grips - Marin Shock Absorbing Perforated Tape
  • Headset - FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 3/8”
  • Seatpost - Marin Carbon
  • Saddle - Marin Beyond Road Concept Elite
  • Pedals - Commute Platform
  • Extras - Naild F/R Locking Thru-Axles, 12.3.9 QR Mechanism, LocIt Lever Technology

Other Gestalt Models:
  • Gestalt X10
  • Gestalt 2
  • Gestalt 1
