Mondraker (Spain) - Press Release: The exclusive F-Podium RR SL limited edition has been developed under our highest quality standards. The result is the lightest cross-country bike in the industry with only 9,52 kg. Stealth Air Full Carbon, Zero Suspension System, Forward Geometry, Sram Eagle AXS, Bike Ahead carbon wheels.

Technical specifications:

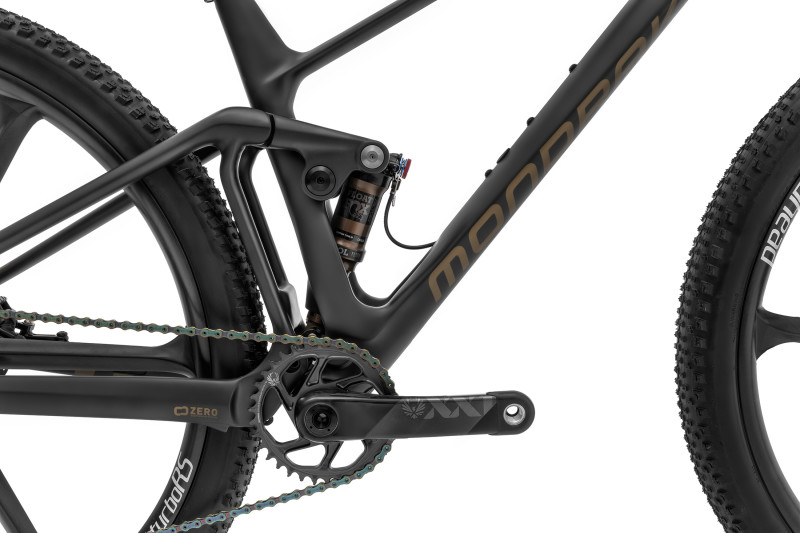

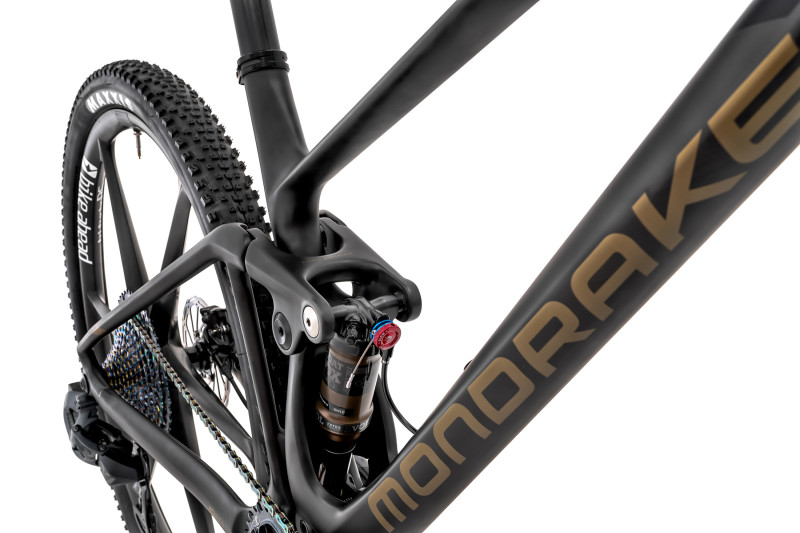

• Frame: F-Podium Stealth Air Full Carbon, XCO Optimized Zero Suspension System, SL Lower Link, 100mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
• Sizes: S: 390mm / M: 420mm / L: 470mm / XL: 510mm
• Rear shock: Fox Float DPS SV EVOL Factory Kashima, 185x47,5mm. Settings: 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
• Shock setting: Firm compression, light rebound, air volume spacer 0.2
• Fork: Fox 32 29 Float FIT4 EVOL Step Cast Factory Kashima, 100mm, tapered steerer tube,15x110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, compression micro-adjustment at low-speed, rebound, air preload
• Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45°
• Stem: OnOff Helium 7050 alloy, 31.8mm barbore, length: sizes S/M: 50mm, L/XL: 60mm

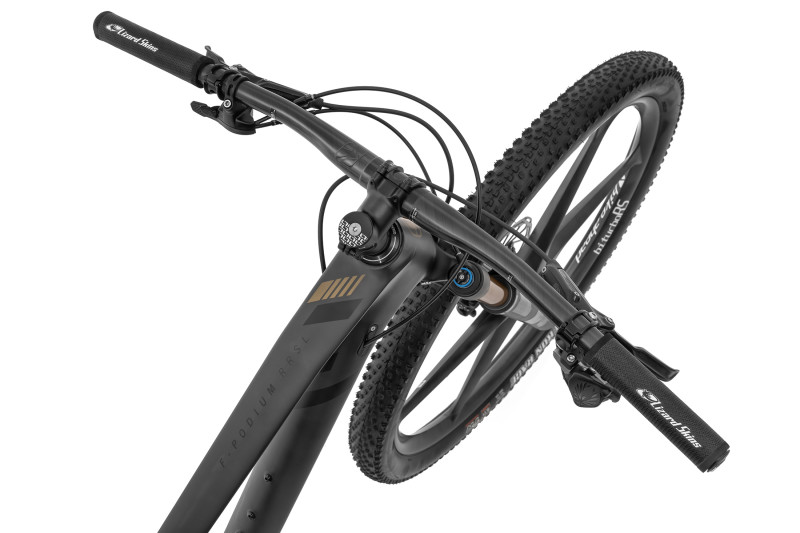

• Handlebar: BikeAhead the Flatbar Carbon, rise: 0mm, width: 720mm, 8,5° backsweep, 0° upsweep, 31.8mm barbore
• Grips: Lizard Skins DPS, Durafoft, diameter 30.3mm, 130mm
• Seatpost: BikeAhead the Seatpost Carbon, diameter 31.6mm, length 400mm
• Saddle: Fizik Antares 00 Carbon
• Front brake: Sram Level Ultimate, monoblock caliper, Centerline X 160mm IS 6 bolts one-piece rotor, aluminum-backed organic pad, titanium hardware
• Rear brake: Sram Level Ultiamte, monoblock caliper, Centerline X 160mm IS 6 bolts one-piece rotor, aluminum-backed organic pad, titanium hardware
• Brake lever: Sram Level Ultimate, carbon, tooled reach adjust, lever pivot bushings, titanium hardware
• Rim: BikeAhead AC29 Biturbo RS, carbon, 27mm internal wid, 6 spokes th
• Spokes: BikeAhead carbon, monocoque design
• Front hub: BikeAhead Boost 15x110mm, sealed bearings, IS 6 bolts
• Rear hub: BikeAhead Boost 12x148mm, sealed bearings, IS 6 bolts, XD freehub
• Front tyre: Maxxis Rekon Race 29x2.25, EXO protection, tubeless ready, 120TPI, folding bead
• Rear tyre: Maxxis Rekon Race 29x2.25, EXO protection, tubeless ready, 120TPI, folding bead
• Crank: Sram XX1 Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
• Rings: 34T, CNC-machined alloy, X-SYNC 2
• Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
• Chain: Sram XX1 Eagle, 12s
• Rear derailleur: SRAM XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1
• Lever: Sram Eagle AXS, 12s, MMX
• Sprocket: Sram XG1299 10-50T, 12s
• Hanger: Mondraker M068
• Weight without pedals: 9,520 kg
