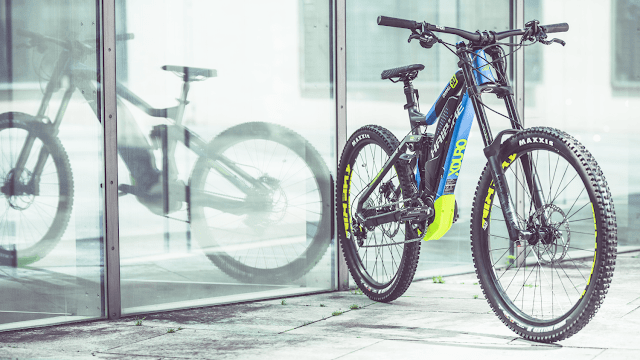

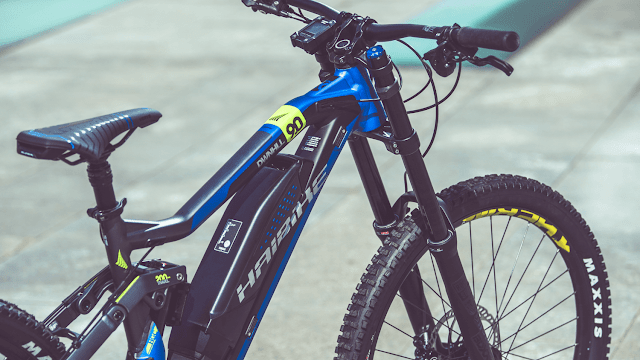

Haibike (Germany) – The new 2018 Xduro Dwnhll 9.0 is the first Downhill model in Haibike lineup which now features the Yamaha PW-X motor.

The Haibike SkidPlate:
Made of shock-resistant plastic, the light component protects effecitvely from scratches or motor damage.

The Haibike IntegratedMotor concept:
With this concept which Haibike developed, they reach a technologically and optically perfect intefration of the motor in the Frame.

The Haibike Gravity Casting interface:
The heart of the Haibike alu frame: light, highly robust and complex manufacturing with a special casting technique known from the motorcycle industry.

The new Yamaha PW-X drive unit:
The brand new drive unit from Yamaha designed specifically for ePerformance! Despite its massive 80Nm torque it is extremely compact, lightweight and perfectly controllable.

The Yamaha LCD-X Display:
In spite of its small construction size, it offers numerous information and functions.

Specifications:

• Frame - Aluminium 6061, Gravity Casting Interface, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 200mm
• Drive unit - Yamaha PW-X System, 250W, 80Nm, 25km/h
• Display - Yamaha LCD - X
• Battery - Yamaha Lithium Ion, 500 Wh
• Charger - Yamaha quick charger 4A
• Fork - RockShox BoXXer RC, steel spring, Travel: 200mm, aluminium steerer tube 1 1/8", thru-axle
• Damper - RockShox Super Deluxe RCT, air
• Shifting system - Shimano ZEE M640, 10 speed
• Gear lever - Shimano Zee M640, rapidfire
• Rear sprocket - Shimano HG50, 11-36 teeth
• Chain - KMC X10e
• Chain ring - FSA, 38, aluminium
• Brake lever - Magura MT5 HC-lever, aluminium
• Front brake - Magura MT5, 203mm, hydraulic disc brakes
• Rear brake - Magura MT5, 203mm, hydraulic disc brakes
• Tyres - Maxxis High Roller II, 61-584
• Rims - Alexrims Supra BH, aluminium
• Front wheel hub - Haibike Components TheHub +++ thru-axle 20x110mm
• Rear wheel hub - Haibike Components TheHub ++ thru-axle 12x148mm
• Spokes - DT Swiss Comp, black
• Handlebar - Haibike Components TheBar +++ Gravity 780mm
• Grips - Haibike MTB Griffe
• Stem - Haibike Components The Stem +++, direct mount
• Head set - A-Head Tapered, Cartridge, aluminium
• Saddle - Selle Royal Verve
• Seat post - Kind Shock LEV-DX, telescope, 31.6mm
• Pedals - MTB Plattformpedal, aluminium
• Weight - 24.7kg
• Total perm. weight - 120kg
• RRP - 5.299 €
• Wheel size - 27.5"
