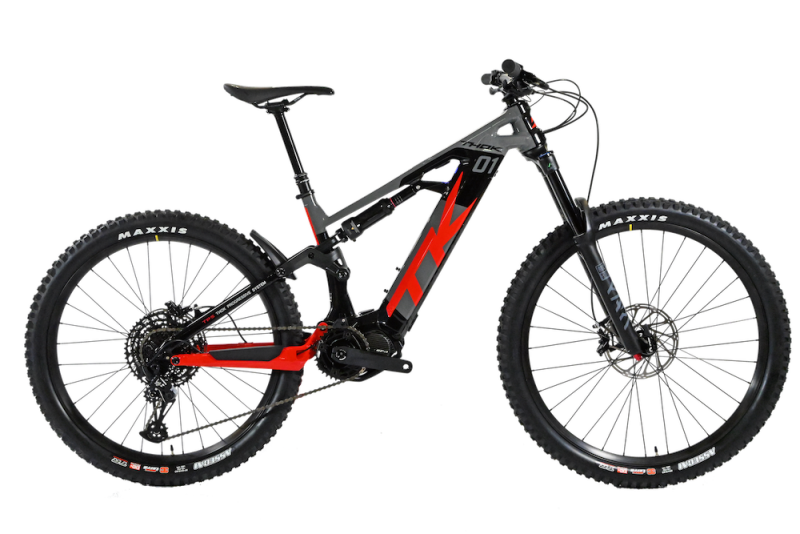

Thok E-Bikes (Italy) - "The TK01 extends your rides and allows you to enjoy even the most extreme trails while having fun in safety."
170 mm travel, mullet wheels, 4-piston brakes, integrated 630 Wh battery, new Shimano EP8 motor.
The “Precise Front End” for head tube tapered 1.8 marks an epochal change in the steering area of E-MTBs.
A "steamroller" without compromising agility! With 29" and 27.5" mullet wheels, it is the ideal companion for fans of adrenalinic activities and strong sensations that E-Enduro can give.
TCG “Thok Control Geometry” Plus:
It’s the innovative geometry from THOK represented by an elongated top tube "Viper head", and a new standard tapered head tube 1.8, with 64,5° steering angle, straight seat tube of 75,5°, ensuring riding comfort and total control on technical singletracks.
Specs:
- Frame: Alloy frame 6061 T4 T6 with 170mm rear travel, forged and CNC parts, hydroformed tubes, headtube tapered 1.8 and integrated battery.
- Sizes: S - M - L - XL
- Power supply: SHIMANO EP8 - 85 Nm (250W) - integrated battery 630 Wh
- Display and shifter: Cyclo Computer EM800 with 1,6" coloured LCD screen - ergonomic EM800 controller (Eco, Trail, Boost e Power-Walk)
- Fork: ROCK SHOX - 170mm YARI Motion control RC 29" Boost, MXL Ultimate DebonAir for E-MTB, 44mm OFFSET, 1.8 Tapered.
- Rear shock: ROCK SHOX - DELUXE Select R , THOK Custom tuned
- Brakes: SRAM - Guide T, 4 pistons calipter, 200mm Centerline rotor
- Rear derailleur: SRAM - NX, 12s
- Shifter: SRAM - SX Eagle Trigger, 12s
- Cassette: SRAM - Eagle 12s (11-50)
- Chain: SRAM - Eagle 12s
- Crank: FSA 165mm - chainring 34T
- Wheels: THOK DRIFTER with Mavic rim E-XM430: 29"x30mm front, 27.5"x35mm rear
- Stem: THOK forged, 35mm front clamp oversize, 37mm length
- Handlebar: THOK 35mm, rise 20mm, 780mm width
- Grips: THOK - Lock-On grip, regular size
- Tires: MAXXIS - Assegai 29x2.6 front & 27.5x2.6 rear. 3C / EXO+ / TR
- Seatpost: THOK telescopic dropper post (125mm size S - 150mm size M - 170mm sizes L and XL)
- Saddle: THOK Fit in Chromo
- Pedals: Pedals in polyethylene
- Weight: 24,7 Kg Size M without pedals
