Zumbi Cycles (Poland) - Press Release: Zumbi F11 is dedicated for riding wild mountain trails and bike parks. Easily rolls uphill and gives you maximum confidence on downhills.
Zumbi MTB frames are 100% handcrafted from 7020 aircraft aluminum:
- No interference in the structure of the material ensuring its genuine and ultimate durability
- Maximum rigidity at a super low weight – 3170g for size “M” including FOX Suspension rear shock
#GeoRevo:
Innovative concept of weight distribution with low center of gravity helps in spontaneous reaction giving geometry an offensive characteristic
Tanks to the defined length patterns of individual pipes, rider has a possibility to maintain a comfortable body position during a whole-day ride or longer several days adventure
Optimally selected head- and seat- tube angles allow perfect control in the slippery corners
Our top-of-the-line all-mountain frame has now:
- Longer front-end with bigger reach parameter
- Optimized chainstays for the perfect grip and stability
- Head tube angle reduced to 65° for F-11 27.5” and 66° for F-11 29”
- New 44/56 headset size
Longer:
- Front-end with bigger reach parameter
- Optimized chainstays for the perfect grip and stability
- Head tube angle reduced to 65° for F-11 27.5 and 66° for F-11 29
- New 44/56 headset size

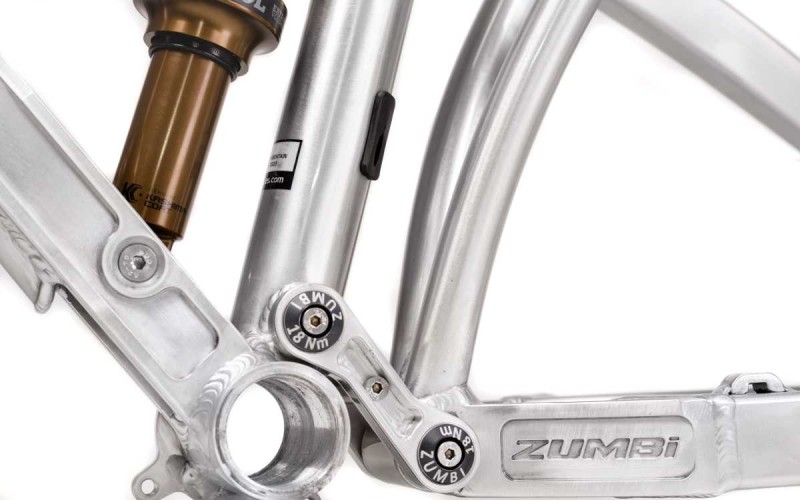

Floating Pivot Suspension (FPS):
- Suspension is based on a most unique and effective system with a virtual swing point (FPS) supporting the progressive way of how the shock works. This supports progressive way of the shock’s work
- Suspension characterize full isolation from the forces coming from pedaling and braking
- FPS also increases pedaling efficiency while eliminating chain-suck and shock pumping-up in the same time

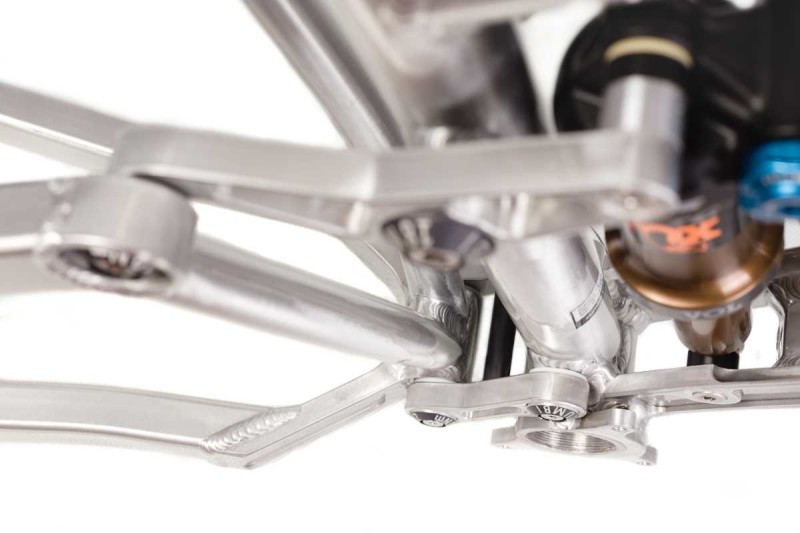

Each weld is precisely made by skilled craftsmans:
It is a kind of art and expresses the passion of its creator. Emphasizes the high quality of the Zumbi frames.

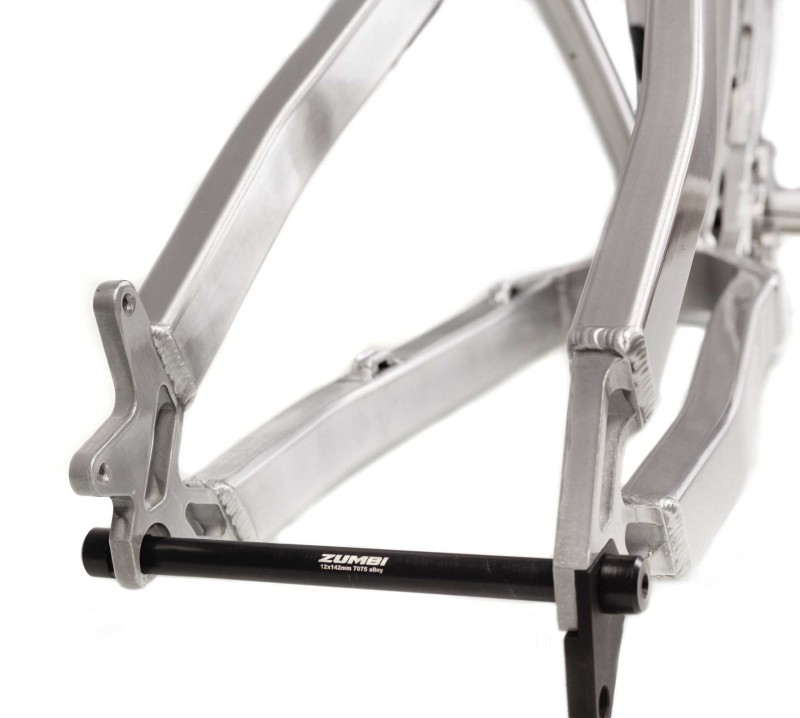

Boost 148mm or standard 142mm thru axle:
Wider rear chain-stays provides an even stiffer connection of the wheel hub to the frame, giving extra space for a larger plus-size tire
Internal Cables Routing:
Guarantees “clean” frame look and maintenance-free structure of whole bicycle protecting inner cables from dirt and mud
Tapered Headtube:
- Allowed us to use a larger diameter steering tube, which has a significant effect on the rigidity of the bicycle’s front-end.
- Bigger bearings will last much longer
F11 29 AM/Trail Specifications:
- Frame: 100% handwelded, 7020 T6 alloy tubing, 7020 CNC machined linkage
- Travel: 130mm – 140mm
- Shock Dimensions: 200x57mm or 200×51mm (eye2eye length)
- Shock: We recommend using our factory tuned Fox Float DPX DPS shock. Alternatively RockShox Monarch RT3 or Cane Creek DB Coil / DB Air
- Wheel Spacing: Boost hube 148 x 12 or standard hube142 x 12mm
- Fork: Fox Float 34 140 mm travel. Alternatively a RockShox Pike RCT3 or Cane Creek Helm. Geometry accepts forks with travel range 130mm to 150mm
- Wheel Size: 29
- Headset: Cane Creek 40 series
- Seatpost Diameter: 31.6
- Cable Routing: Internal or external
- Head Tube Dimensions: New 44×56 (both integrated) or 44×1.5” (upper integrated, lower external)
- BB Shell: 73mm BSA thread
- Weight: 2700g (without shock, size M, Raw finish)
- Colour: Raw, red, grey, black matt, team, orange, blue / custom painting - only: 349 €
- Geometry: XS,S, M, L, XL / custom option -only: 429 €
- Front Suspension Travel: 130-150mm
- Other: ISCG 05 chain tensioneer tab
Other F11 Models:
- F11 27.5 Enduro/AM
